Specifications
Warranty :
12 month
Customized support :
OEM, ODM, OBM
Place of Origin :
Beijing, China
Brand Name :
IVANPER
Model Number :
3005-TH-120
Temperature output :
4-20mA, 0-10V
humidity output :
4-20mA (load≤500 Ohm), 0-10V
Working voltage :
12-35V DC
Power consumption :
≤1 VA (typical value)
allowable maximum air flow speed: :
16 m / S
Temperature transmitting range: :
0 ~ 50 ℃
Working temperature :
-40~80℃
Working humidity :
0-99% RH
Storage temperature: :
- 40 ~ 80 ℃
Storage humidity :
20~60% RH
Packaging Details :
Carton/wooden box
Supply Ability :
5000 Piece/Pieces per Month
MOQ :
5 stones
Price :
$35.00 - $40.00/stones
Description
Product Description

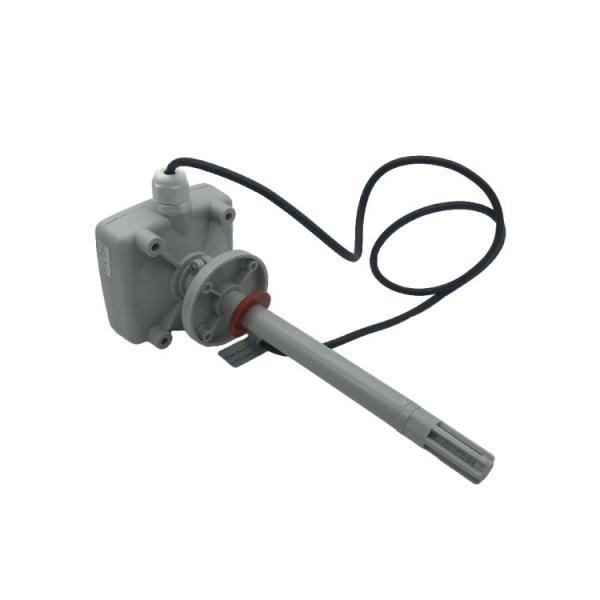

The 3005-TH-120 pipeline temperature and humidity transmitter adopts the latest integrated temperature and humidity measurement technology, through the signal processing of high-performance single-chip microcomputer, the whole machine has superior performance and excellent long-term stability. This series of transmitters adopts a professional pipeline installation method, which is easy to use and outputs standard current signals, which is suitable for most industrial control equipment. This series of products are integrated temperature and humidity transmitters, which are widely used in building automation, climate and HVAC signal acquisition, greenhouses, and pharmaceutical and chemical industries.
Specification
Product name
Temperature and humidity transmitter
Model
3005-TH-120
Allowable maximum air velocity
16m/s
Electrial connections
1x2.5 mm2 / 2x1.5 mm2 (Terminal capacity),M12x1.5mm (Waterproof connector)
Output signal
Temperature
4-20mA, 0-10V
Humidity
4-20mA, 0-10V (load≤500 ohm)
Voltage
Working voltage
12-35V DC
Power consumption
≤1V A (typical)
Temperature
Transmission range
0-50℃ (factory default) or customized
Accuracy
±0.3℃ (Full-scale average)
Long-term stability
<0.04℃/year
Relative humidity
Range
0-100% RH
Accuracy
±3% RH (typical, at 25℃)
Long-term stability
<0.5% RH/year
Working environment
Temperature
-40~80℃
Humidity
0-99% RH (no condensation)
Storage environment
Temperature
-40~80℃
Humidity
20-60% RH
