Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Specifications
Warranty :
12 month
Customized support :
OEM, ODM, OBM
Place of Origin :
Beijing, China
Brand Name :
IVANPER
Model Number :
3005-TH-120
Temperature :
4-20mA
humidity :
4-20mA
temperature :
0-10V
working voltage :
DC12 ~ 35V
allowable maximum air flow speed: :
16 m / S
Temperature transmitting range: :
0 ~ 50 ℃
Range: :
0 ~ 100% RH
Accuracy: :
± 3% RH
long term stability: :
< 0.5% RH
Storage temperature: :
- 40 ~ 80 ℃
Packaging Details :
Carton/wooden box
Supply Ability :
2000 Piece/Pieces per Month
MOQ :
5 pieces
Price :
$35.00 - $40.00/pieces
Description
Product Description

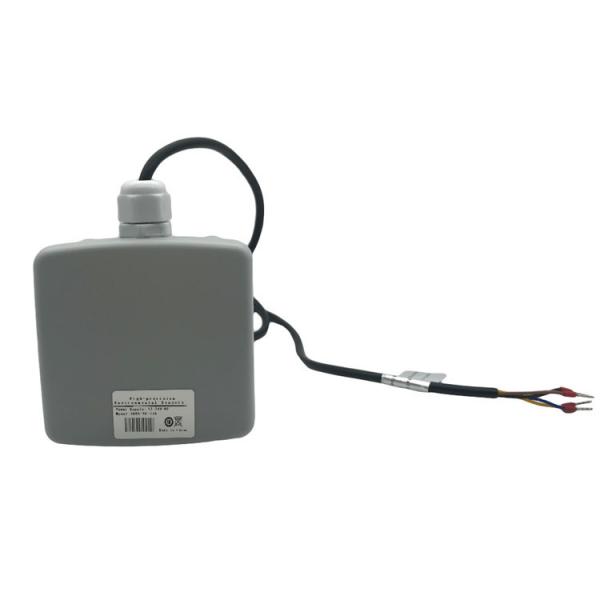

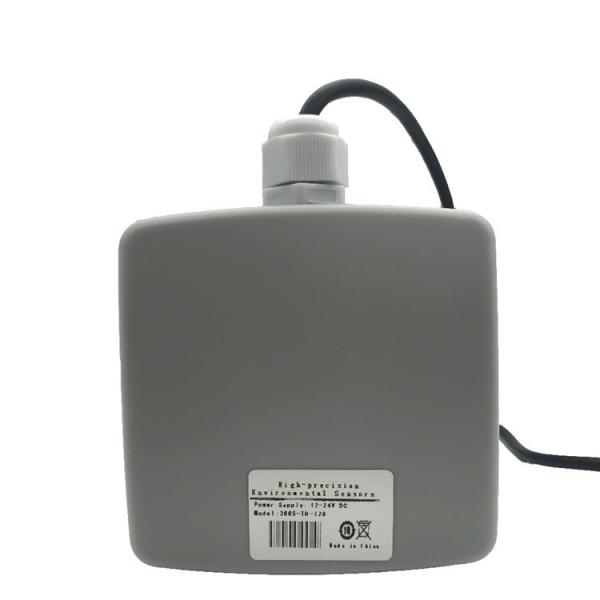

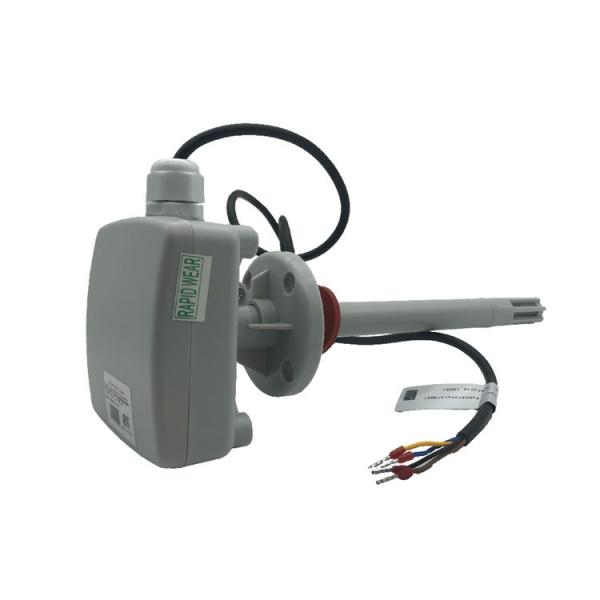

The 3005-TH-120 pipeline temperature and humidity transmitter adopts the latest integrated temperature and humidity measurement technology, through the signal processing of high-performance single-chip microcomputer, the whole machine has superior performance and excellent long-term stability. This series of transmitters adopts a professional pipeline installation method, which is easy to use and outputs standard current signals, which is suitable for most industrial control equipment. This series of products are integrated temperature and humidity transmitters, which are widely used in building automation, climate and HVAC signal acquisition, greenhouses, and pharmaceutical and chemical industries.
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Specification
Plug-in type
Product name
Temperature and humidity transmitter
Model
3005-TH-120
Allowable maximum air velocity
16 m/s
Electrical connections
1x2.5 mm2 / 2x1.5 mm2 (Terminal capacity),M12x1.5mm (Waterproof connector)
Output signal
Temperature
4-20mA, 0-10V
Humidity
4-20mA, 0-10V (load≤500 ohm)
Voltage
Working voltage
12-35VDC
Power consumption
≤1V A (typical)
Temperature
Transmission range
0-50℃ (factory default) or customized
Accuracy
±0.3℃ (full-scale average)
Long-term stability
<0.04℃/year
Relative humidity
Range
0-100% RH
Accuracy
±3% RH (typical, at 25℃)
Long-term stability
<0.5% RH/year
Working environment
Temperature
-40~80℃
Humidity
0-99% RH (no condensation)
Storage environment
Temperature
-40~80℃
Humidity
20-60% RH
Recommend Products
Packing & Delivery
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Company Profile

Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Exhibition
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Certifications
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
Temperature Humidity Monitor 4-20mA ODM Customized Support Long Term Stability 0.5% RH
FAQ
Q1. Why choose us?
A: Founded in 2011, we are a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
If you have any questions, please feel free to contact us!
