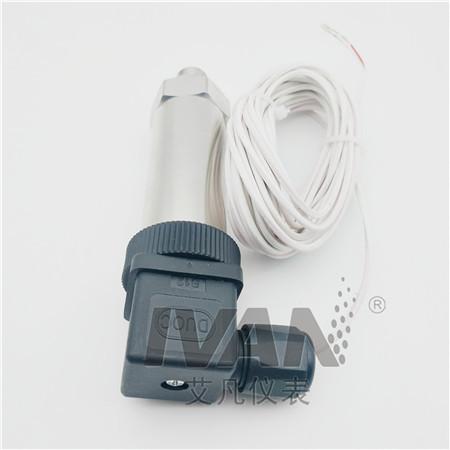

316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
Specifications
Place of Origin :
Beijing, China
Brand Name :
IVANPER
Model Number :
AF501
Packaging Details :
carton
Supply Ability :
1000 Unit/Units per Week
MOQ :
10 units
Price :
$50.00 - $80.00/units
Warranty :
1 year
Customized support :
OEM, ODM, OBM
Product name :
Pressure Transmitter
Power supply :
24VDC (15-30VDC)
Measure range :
-0.1...0~0.01...~100MPa
Proof pressure :
≤1.5X rated pressure or 110MPa which ever is less
Pressure type :
Gauge, absolute ,sealed gauge
Accuracy :
±0.1% ±0.25%(typical)
Long term stability :
±0.3%F.S/year
Diaphragm material :
316L
Port :
tianjin
Description
4-20ma water pump pressure level transmitter
Specification
Measurement Range
-0.1．．．0~0.01．．．~100MPa
Proof pressure
≤1.5X rated pressure or 110MPa which ever is less
Pressure type
Gauge, absolute ,sealed gauge
Accuracy
±0.25%(typical) ±0.5%(Max.)
Long term stability
±0.1%F.S/year(typical) ±0.2%F.S/year(Max.)
Temperature Error- Zero
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa)
Temperature Error -Span
±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(＞100KPa)
Operating Temperature Range
-20℃~80℃
Storage Temperature Range
-40℃~120℃
Power supply
15～30VDC
Output signal
4～20mA 0～10/20mA 0/1～5/10VDC
Pressure port
M20×1.5,G1/2 or customize
Housing material
1Cr18Ni9Ti stainless steel
Diaphragm material
316L
O-ring
Fluororubber
Cable
polyethylene
Insulation resistance
100MΩ,100VDC
Protection
IP65
Product Description
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
Packing & Delivery
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
Packing & Delivery
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
Company Profile

Beijing Ifpen Instrument EnterpriseWas founded in 2011, adjacent to the beautiful political and cultural center, located in Daxing Industrial Development Zone, Beijing.The company has a professional, innovative technica team and standardized production team. Over the years, we have been committed to the research and development of industrial instrument production, focusing on the research and development of the field of"wind speed and air volume", and achieving zero breakthrough of turbulence jump. Since its establishment, the company insists on"innovation, quality, integrity" to serve the new and old customers. Ivan products not only occupy a high proportion of market share in China, as a national brand, go abroad, exported to the world.
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
Exhibition
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
Certifications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
316L Diaphragm 4-20mA Water Pump Pressure Level Transmitter for Industrial Applications
FAQ
1.Why choose us?
We are the leading manufacturer, OEM & ODM service are offered
2.How about the sample of product?
We could send you the samples but the freight and the sample are charged.
4.How about payment term?
TT &L/C &Western Union(40% deposit, the balance before shipment)
5.How about delivery time?
Within 7-15 workdays after receiving deposit
6.How about validity of quotation?
Usually 30 days as the shipping freight and exchange rate can be fluctuant.
7.What is the shipping port?
EXW to Tianjin Port, China (also can ship according to customers' request)
8.How about the package?
Bubble film+ Carton +Standard export wooden case.
9.How to inspect the goods?
Products i be checked by our QC staff then our project manager. Client can come and check by themselves or third party check is available.
