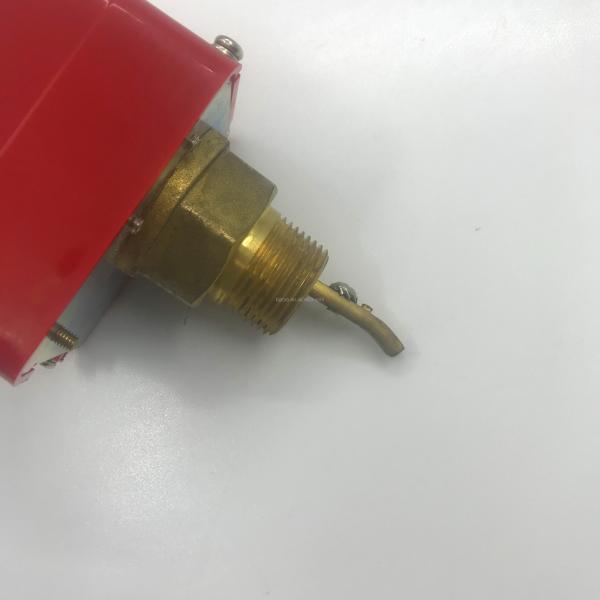

Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Specifications
Warranty :
12 month
Type :
Industrial
Customized support :
OEM, ODM
Place of Origin :
Beijing, China
Product Name :
Flow Switch
Brand Name :
IVAN
Model Number :
FS15
Medium :
Liquid
Operating Temperature :
-40℃~90℃
Material :
Brass
Application :
Monitor Liquid Flow
Packaging Details :
Carton
Supply Ability :
500 Unit/Units per Week
MOQ :
100 units
Price :
$14.00 - $18.00/units
Description
Product Description
Paddle flow switch is a kind of speed type flow switch. It is by the water flow velocity impact block slice, the greater the flow velocity of water , the greater the force on the block slice. The force makes the block slice move, Triggering control signal . The baffle of water flow switch can be designed according to the size of the water flow ,and this can reduce the water resistance produced by the water flow through the water switch, and that can reduce the pressure loss of water system.

Product Function
1, To sense the flow change in the liquid lines as so to protect equipment against damage
which could be cased by flow stopping in the pipeline. Liquid flow either exceeds or drops
below the set flow rate
2, Allowed Liquids Temperature:0°C~120°C.
3, Set Flow Rate can be adjusted according to different flow requirment.
4, Micro switch ensures the quick action and guarantee the transient of the switch.
Flowmeter Unit: L/Min
Pipe Size
Connect
Cut Off
Remarks
DN15
3.3
3
The water inlet length of the baffle is two thirds of the pipe diameter.
DN20
4.6
4.2
DN25
7.3
7
DN32
15
14.2
DN40
25.3
24
DN50
36
34.4
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Recommend Products
Packing & Delivery
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Company Profile

Founded in 2011, Beijing Ifpen Instrument Enterprise, which is adjacent to the beautiful political and cultural center, is located in Beijing Daxing Industrial Development Zone. Our company has a professional, innovative technical team and a standardized production team. Over the years, we have been achieved zero breakthrough in turbulence jump by committing to the production and R&D of industrial instruments and meters and focusing on the R&D and exploration in the field of "wind speed and air volume". After the continuous evolution of the hot ball, hot wire and hot film principles, as well as the exclusive secondary calibration method, we are well-known in the industry as high precision and high stability, breaking the conventional method of using the differential pressure principle to detect air volume in the traditional industry and breaking through the error value of micro wind speed measurement. IVAN has persisted in serving new and old customers with "Innovation, Quality, Integrity" since its foundation. "The heart of innovation, serving the world", IVAN focuses on R&D, provides high-quality products and services, and is committed to the quality road of production enterprises.
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Exhibition
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Certifications
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
Robust Pneumatic Electronic Water Flow Switch for Industrial Applications -40C-90C
FAQ
Q1. Why choose IVAN?
A: Founded in 2011, IVAN is a leading manufacturer in the instrumentation industry, providing OEM & ODM services.
Q2. Could I get sample?
A: Yes, sample order is acceptable, but the sample cost and freight need to be charged.
Q3. What is the term of payment?
A: 100% payment in advance by T/T.
Q4. What is the delivery time of IVAN?
A: Generally, it will be 7-15 working days after receiving payment.
Q5. How about IVAN validity of quotation?
A: It is usually 30 days because the freight and exchange rates may fluctuate.
Q6. What is your normal delivery way?
A: Goods will be sent by DHL/FEDEX/UPS/EMS/TNT or other proposed forwarders.
Q7. How about the package?
A: Standard export wooden case or normal export carton.
Q8. Do you test all your goods before delivery?
A: Yes, we will test 100% before delivery.
If you have any questions, please feel free to contact us!
