2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor
2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor
2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor
2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor
Specifications
Brand Name :
GDHY
Model Number :
C46202155JP101-01
Certification :
SGS,ISO
Place of Origin :
GUANGZHOU, CHINA
MOQ :
50 PCS
Price :
USD 9.5/PCS
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
1000PCS/MONTH
Delivery Time :
14 DAYS
BRAND :
GDHY
PLACE OF ORIGIN :
GUANGZHOU, CHINA
SUPPLIER TYPE :
ORIGINAL MANUFACTURER
CHARACTERISTICS :
LOW ESL, LOW ESR. HIGH-FREQUENCY CURRENT CAPACITY. HIGH DV/DT, HIGH STABILITY, SELF HEALING.
CERTIFICATION :
SGS, ISO
OPERATION TEMP :
-40℃～75℃ Tmax 85℃
CAPACITANCE :
1.5UF
TOLERANCE :
±5%
DC VOLTAGE :
2000VDC
MATERIAL :
POLYPROPYLENE FILM
CURRENT :
55A
PRINTING :
LASER MARKING
TYPE :
RESONANT CAPACITOR
APPLICATION :
INDUCTION HEATING MACHINE, WELDING MACHINE
AC VOLTAGE :
750VAC
TERMINAL :
TIN PLATED COPPER
DIMENSION :
L*D: 40*50 MM
Description

2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor2000VDC/750VAC 1.55UF RESONANT CAPACITORS FREQUENCY INDUCTION AC CAPACITOR

Technical Parameter

Reference Standards IEC 61071.GB/T17702
Operating Temperature Range -40℃-+75℃ TMax 85℃
Capacity Range 0.33μF～6.0μF
Rated Voltage 3000VDC～10000VDC
Capacity Tolerance ±5%(J); ±10%(K)
Withstand Voltage 1.5Un DC/10S
Dissipation Factor tgδ≤0.0005 C≤1μF f=10KHz at 20℃
tgδ≤0.0010 C≥1μF f=10KHz at 20℃
Insulation Resistance C≤0.33μF Rs≥30000MΩ(20℃ 100VDC 60S)
C>0.33 μF RsC≥1000S (20℃ 100VDC 60S)
Flame Retardation UL94V-0
Life Expectancy 100000hrs ( Un hotspot ≤ 70℃)


Specification download: C46.pdf

Application

  • Widely used series circuits or parallel resonant circuites of power electronic devices.
  • Welding power supplies, Induction heating equipment in resonance occasions.

Feature

  • PET tape wrapping, epoxy resin perfusion.
  • Tin plated coppper nut or copper sheet leads.
  • High-frequency current capacity.
  • Low ESL, low ESR.
  • High pulse current, high dv/dt, high stability, self healing.

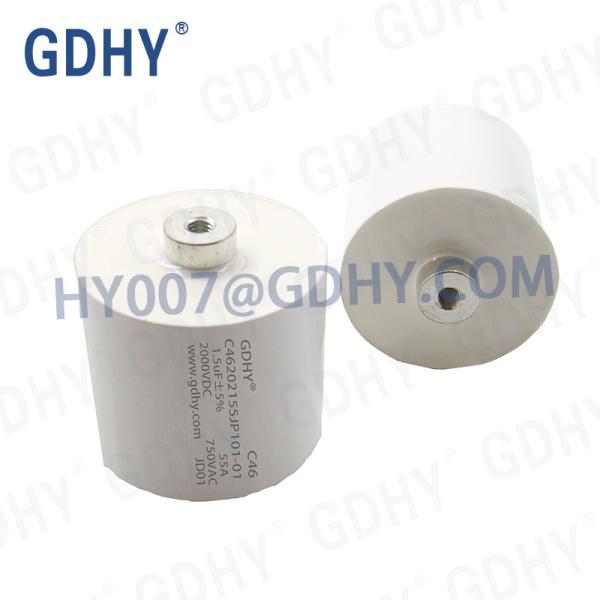

Product Picture

2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor

Product Shape

2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor

Production

2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor

Workshop&Equipment

2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor

Packing method

2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor

Certificate

2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor

Exhibition

2000vdc/750vac 1.55uf Resonant Capacitors Frequency Induction Ac Capacitor
