Touch Screen Control Mask Making Equipment 220V / 50Hz For Colored Medical Face Masks
Touch Screen Control Mask Making Equipment 220V / 50Hz For Colored Medical Face Masks
Specifications
Certification :
CE / FDA
Place of Origin :
CHINA
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
25 sets per month
Delivery Time :
3 work days
Packaging Details :
Standard Packing
Brand Name :
OEM
Name :
Disposable Mask Machine
Power Input :
220V / 50Hz
Product Size :
175*95mm
Warranty :
12 Months
Control :
Touch Screen Control
Other Name :
Face Mask Maker Machine
Description

Touch Screen Control Disposable Mask Machine For Colored Medical Face Masks

Disposable Mask Machine Description :

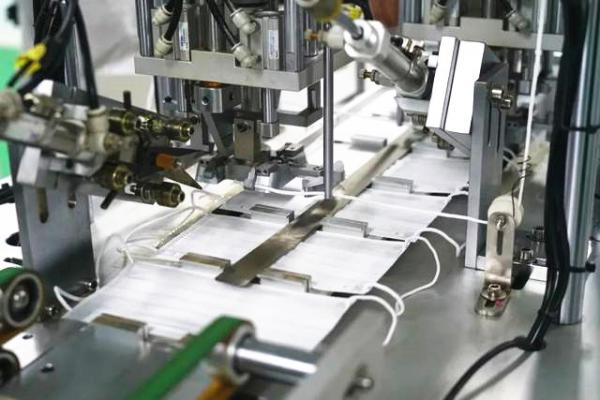

The Mask Making Equipment is used to fully automated make flat masks with with size 175*95mm. The main production process flow is coil material feeding, nose bridge tendon feeding, folding and pressing, mask cutting and forming, ear band feeding and welding, and finished product unloading. Automatically completes production from raw materials to finished masks. The produced masks are comfortable to wear, no pressure, good filtering effect of the masks, fit the human face, and can be used in medical, electronics, mining, construction and other industries.

Disposable Mask Machine Main Features:

  1. Computer program control, high output, good stability and low failure rate.
  2. photoelectric detection of raw materials to avoid errors and reduce waste.
  3. It can produce one to four layers of mask body.
  4. The machine has the function of total count and batch count. The number of batch count can be set arbitrarily..

Disposable Mask Machine parameters :

Control system power 1 Phase 220V / 50HZ
Air Pressure 0.6Mpa
Power supply 3Phase 380V 50HZ
servo motor Domestic quality
Control System PLC
sensor Omron, Seak
Pneumatic Components SMC Yadek
Operation screen 10 inch capacitive screen
Bearing NSK
Lead screw Hiwin
Security Safety light grid
Equipment structure 2 ply
equipment power 8.5KW
equipment weight about2.6T
Driven Ordinary motor + servo
Number of applicable layers 3-layer
Applicable materials PP, non-woven fabric, synthetic fiber
Processing methods Ultrasonic welding
Finished product specifications 175*95mm
Technical characteristics
1. Three layers of fabric are automatically aligned and feed, and weilding sys use ultrasonic waves are continuously pressed.
2. The production line adopts the structure of 2ply, with high production efficiency
3. Nose clips and ear loop are automatically cut and welded by ultrasound
4. Automatic counting and palletizing after welding earbands

Our Advantages

1. Certified company with CE certificates.

2. Various production line, covering more than 50 different kinds of professional machinery to produce ultrasonic related machine.

3. Advanced technical support and strict quality management system..High-efficiency and timely service by E-mail, Skype, WhatsApp, etc. and 24-hours telephone service.

4. Having many experience in this field, our machine are in great demand at home and abroad. We have exported the machine more than 50 countries.
