200W AC 86 Stepper Motor 2500CPR 0.637N.M Three Phase
200W AC 86 Stepper Motor 2500CPR 0.637N.M Three Phase
Specifications
Brand Name :
HEJIE
Certification :
CE,ISO9001,ROHS
Place of Origin :
CHANGZHOU,CHINA
MOQ :
1 - 10 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per day
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
Acceptable customization
Type: :
Sewing Machine Servo Motor
Current / Phase: :
7.5A
Rated Voltage: :
36V
Phase: :
2
Rated Power: :
200W
Holding Torque: :
0.637N.m
Rated Speed: :
3000Rpm
Encoder Resolution: :
2500CPR
High Light: :
200W AC Servo Drive, Three Phase AC Servo Drive, 200W three phase ac servo motor
Description

60mm 0.637NM 200W 3000rpm AC Servo Drive Three Phase

1.Servo motor Features:

These are low weight devices.
It offers reliability as well as stability in operation.
There is not much noise generated at the time of operation.
It offers almost linear torque-speed characteristics.
As brushes and slip rings are not present here thus it reduces maintenance cost.

2.AC Servo motor Introduction:

The ACM602V36 servo motors offer high performance with wide output upto 200W . Mounting is compatible with Panasonic and Fuji AC servo motors. The ACM series are ideal for cost sensitive applications. Standard model comes with a standard 2500-line encoder with differential encoder signals (A, B, Index), and Hall Sensors with standard Hall signals (U, V, W). When driven by Leadshine ACS series servo drives, the ACM series motors can meet requirements of applications requiring speed from as low as 1rpm to as high as 4000 rpm.

3.Features of 200w Ac servo motor:

Model ACM602V36-T-2500+ACS806
Frame Size 60mm
Holding Torque 0.637N.m
Peak Torque 1.92N.m
Rated Power 200W
Rated Speed 3000Rpm
Peak Speed 4000Rpm
Rated Voltage 36V
Rated Current 7.5A
Peak Current 21A
Encoder Resolution 2500CPR

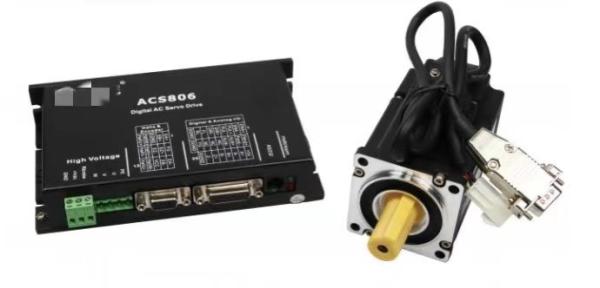

3. This kit includes:
1pc 200W Servo Motor
1pc ACS806 Driver
Cable

4.Applications of AC Servo motors:

Due to the various advantages offered by the AC servomotors, these majorly finds applications in the instruments that operate on servomechanism, in position controlling devices, computers. Along with this these also find applications in tracking systems,machine tools and robotics machinery.

5.Packaging & Delivery:

Packaging Details: 80 UNITS EACH CARTON
Port: Shanghai or Ningbo
Lead Time: Quantity(Units) 1 - 10000 >10000
Est. Time(days) 25 To be negotiated

6.Company introduction:

Founded in 2009, Changzhou Hejie Motors Co., Ltd. is a professional manufacturer and exporter that is concerned
with the design, development and production and sales of motors. We are located in Changzhou, Jiangsu Province, with convenient transportation access.Our company has always been committed to the design and manufacturing of the motors for over ten years , and now has a number of invention patents and utility model patents. Our company mainly engages in research and development of different motors, including the series stepping motor, the series Brushless DC motor, AC/DC servo motor. All of our products are greatly appreciated in a variety of
different markets throughout the country, and even exports to more than ten foreign countries and regions.
Our products have passed CE and ROHS certification, and the company has passed ISO9001 total quality management system certification.The products are widely applied to carved machine, embroidery machine, industrial robots, robots, unmanned aerial vehicle (uav), CNC machine tools, digital printing, computer flat knitting machine, 3 d printing, packaging machinery, industrial printers, medical equipment, new energy vehicles and other automation control and automation system equipment.

200W AC 86 Stepper Motor 2500CPR 0.637N.M Three Phase200W AC 86 Stepper Motor 2500CPR 0.637N.M Three Phase​

200W AC 86 Stepper Motor 2500CPR 0.637N.M Three Phase

6.Related Qualification Certificate:

200W AC 86 Stepper Motor 2500CPR 0.637N.M Three Phase

7.FAQ:

Q:Where is your factory.

A:Our factory is located in Changzhou only one hour from Shanghai by high –speed railway.

Q:How to choose the suitable stepper motor.

A:There are several important points Size and length of the stepper motor Holding torque Step angle voltage Current etc. After confirm some of them then told us We can help you to choose the suitable stepper motor Or you can sent us the model you are using We can help you to find the suitable stepper motor.

Q:When can I receive the drawings of the stepper motor.

A:We will provide the drawings of the stepper motor after you place the order.

Q:How long is the warranty time.

A:12 months And we provide life-long technical service and after sale service.

Q:How can we know the product quality?

A:We suggest you to order a sample Also You can send us email for detail photos for checking if you cannot get enough information in the product page.
