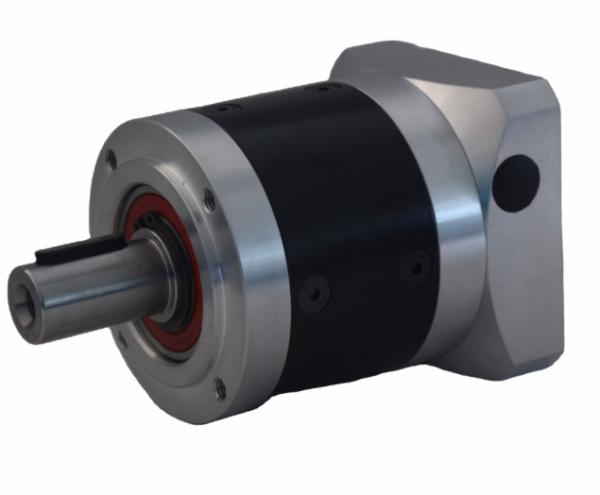

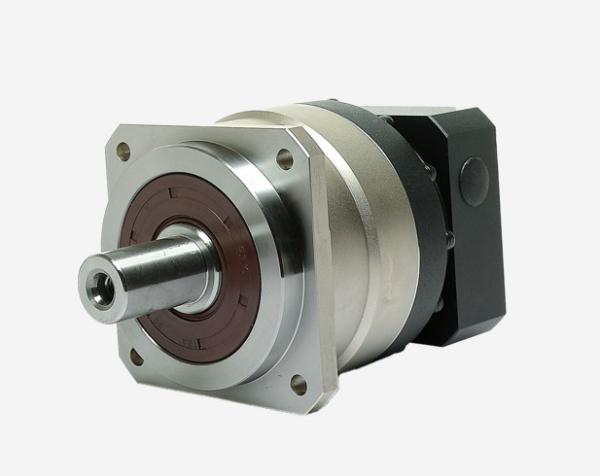

HAB High Precision Precision Planetary Gearbox 3000rpm Ratio 3
HAB High Precision Precision Planetary Gearbox 3000rpm Ratio 3
HAB High Precision Precision Planetary Gearbox 3000rpm Ratio 3
HAB High Precision Precision Planetary Gearbox 3000rpm Ratio 3
HAB High Precision Precision Planetary Gearbox 3000rpm Ratio 3
HAB High Precision Precision Planetary Gearbox 3000rpm Ratio 3
Specifications
Brand Name :
HEJIE
Certification :
CE,ISO9001,ROHS
Place of Origin :
CHANGZHOU,CHINA
MOQ :
1 - 3 Unit/Units
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30000 pcs/month
Delivery Time :
7-15 days
Packaging Details :
Acceptable customization
Ratio: :
3-100
Input Speed: :
1500-3000rpm
Type: :
Planetary
Output Torque: :
3.71N.m-538.62N.m
Size: :
60,90,115,145
Output speed: :
1000, 750, 600, 375, 300 rpm
Description

PL60 1 Stage Ratio 3 60mm Servo Planetary Gearbox Smooth Running

1.Description Of Precision Planetary Gear Boxes:

1).The helix angle products smooth and quiet operation with decreased backlash (less than arc-minutes and ≤56 dB).
2). The hoop clamping system provides seamless power transmission without assembly. 100% concentration allows rotation and higher input speed capability.
3).Bushing module system design: The unique motor adapter and bushing module system design allows for quick and easy mounting of any motor.

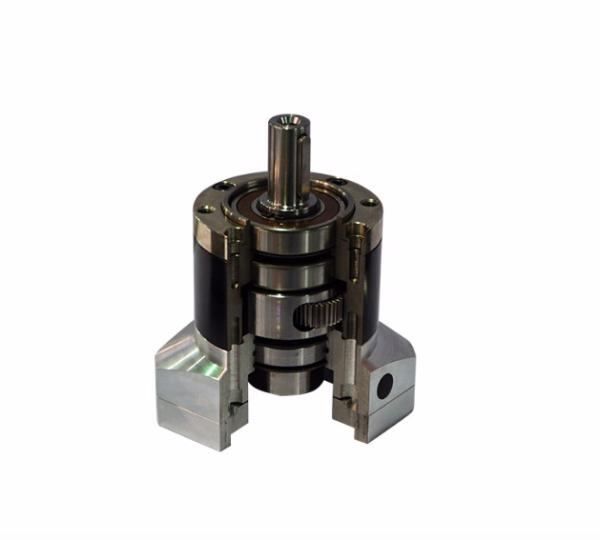

4).Single piece structured ring gear with housing internal ring gear is machined directly into a single piece of steel. Maximized diameter and number of teeth to improve overall performance and torque capacity.

2.Technical data of Precision Planetary gearbox :

Planetary Gearbox Frame Code: HAB
Gearboxes Code: 60,90,115,145
1-stage:3~10
Ratio: 2-stage:12~100
Backlash: Precision,Standard
Output shaft type: Shaft without key,Shaft with key
Output shaft type: Shaft without key,Shaft with key

3.Product Specification:

Ratio 3 4 5 7 10
Rated output torque(Nm) 15 30 27 20 9
Max output torque(Nm) 30 60 54 40 18
Rotational inertia (kgcm2) 0.135 0.093 0.078 0.072 0.064

The type of gearbox and the physical arrangement of the gears selected within the housing is usually determined by the speed and torque required as well as the service factor (or characteristics of use) and the preferred envelope size.

4. The drawing of high precison gearbox PLF60:

HAB High Precision Precision Planetary Gearbox 3000rpm Ratio 3

5. Company introduction:

Changzhou Hejie Motor Co., Ltd. is located in the rich rao beautiful developed China motor town -- Changzhou city, founded in 2009, is specialized in research and development, production, sales of motor an enterprise. The company has accumulated more than ten years of experience in motor design and manufacturing, and has a number of invention patents and utility model patents. The company mainly r & D and production series stepper motor, the series brushless DC motor, AC/DC servo motor. The motor sells well all over the country and is exported to more than ten countries and regions. The products have passed CE and ROHS certification, and the company has passed ISO9001 total quality management system certification. Company products are widely applied to carved machine, embroidery machine, industrial robots, robots, unmanned aerial vehicle (uav), CNC machine tools, digital printing, computer flat knitting machine, 3 d printing, packaging machinery, industrial printers, medical equipment, new energy vehicles and other automation control and automation equipment in the system.

Production equipment:

HAB High Precision Precision Planetary Gearbox 3000rpm Ratio 3

Related Qualification Certificate:

HAB High Precision Precision Planetary Gearbox 3000rpm Ratio 3

6. FAQ:

Q1:Are you manufacturer ?

A1:Yes, we are the manufacturer of gear motor and planetary gearbox.

Q2 : What specifications we need before you place an order?

A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.

Q3 : What is the price ?

A3 : Price always depends on quantity, we offer range pricing

Q4 : Is it customized ?

A4 : Yes, different clients have different requirements, so we customize for you. .
