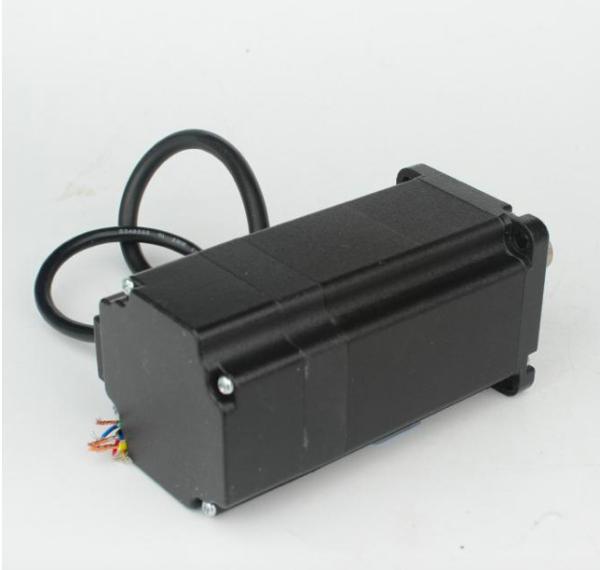

NEMA 24 DC 3 Phase Brushless Spindle Motor 0.3N.M-1.2NM 94W Black Colored
NEMA 24 DC 3 Phase Brushless Spindle Motor 0.3N.M-1.2NM 94W Black Colored
Specifications
Brand Name :
HEJIE
Certification :
CE,ISO9001,ROHS
Place of Origin :
CHANGZHOU,CHINA
MOQ :
1 - 5 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
Acceptable customization
Type: :
CNC Spindle Motor
Speed :
3000rpm
Torque: :
0.3N.m-1.2nm
Number Of Poles: :
8
Rated Power: :
94W - 377W
Encoder: :
1000 Ppr
Usage: :
Automatic Industry,CNC Router
High Light: :
NEMA 24 Brushless DC Motor, 60mm nema 24 motor, Brushless nema 24 motor
Description

60mm NEMA 24 48V 94W 3 Phase Brushless DC Motor Black Colored

1.Motor technical parameter:

* Winding type: Star

* Hall effect angle: 120 degree electrical angle

* Shaft run out: 0.025mm

* Radial play: 0.02mm@450g

* End play: 0.08mm@450g

* Max.radial force: 151N@20mm form the flange

* Max.axial force: 45N

* Insulation class: Class B

* Dielectric strength: 500VDC for one minute

* Insulation resistance: 100MΩ Min.,500VDC

* CE and ROHS certified

2.Electrical Specification:

Model HJ60BLS01 HJ60BLS02 HJ60BLS03 HJ60BLS04
Number of Phase 3
Rated voltage (VDC) 48
Rated speed (RPM) 3000
Rated torque (N.m) 0.3 0.6 0.9 1.2
Rated power 94 188 283 377
Body length(mm) 78 99 120 141
Rotar Intertia (g.c㎡) 0.24 0.48 0.72 0.96
Sensor Honeywell

3.Our service:

We do also manufacture other products,such as nema8,nema11,nema14,nema16,nema17,nema23,nema24,nema34,nema42,nema52 stepper motor;

nema11,nema17,nema23,nema24,nema34 stepper motor with gearbox.

linear stepper motor,closed loop stepper motor,stepper motor with brake,stepper motor sriver;

42mm,57mm,60mm,80mm,86mm,110mm,130mm brushless dc motor;

bldc motor with gearbox,bldc motor driver;

brush dc motor,spindle motor,ac servo motor kit,couplings,pulley,power supply and so on.

4. Applications:

Our products are widely used in 3d printers, CNC routers, Engraving Machines, stage lighting control, security surveillance, video equipment, laserworkstation, carving machine, office automation, smart toy, digital controlled machinery and medical instrument and other automatic equipment.

5.FAQ:

Q1:Are you manufacturer ?

A1:Yes, we are the manufacturer of gear motor and planetary gearbox.

Q2 : What specifications we need before you place an order?

A2 : Rated torque, Rated speed, IP Grade, mounting dimensions.

Q3 : What is the price ?

A3 : Price always depends on quantity, we offer range pricing

Q4 : Is it customized ?

A4 : Yes, different clients have different requirements, so we customize for you. .
