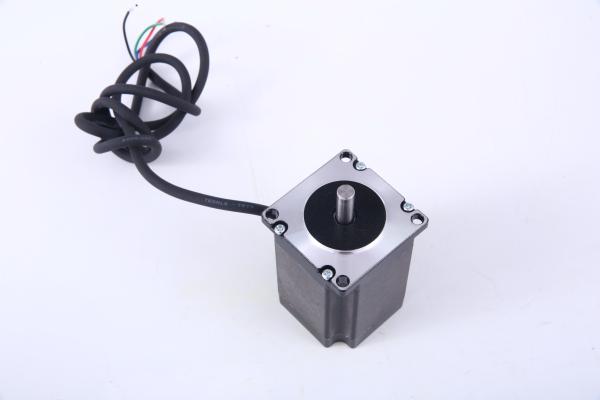

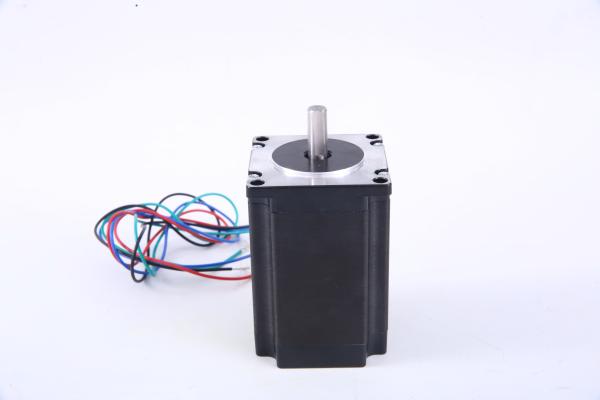

1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver
Specifications
Brand Name :
HEJIE
Model Number :
57BYGH76-3004
Certification :
CE,ISO9001,ROHS
Place of Origin :
CHANGZHOU,CHINA
MOQ :
1 - 5 PCS
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 pieces per day
Delivery Time :
For samples , 7-15 days / For batch , 15-25days
Packaging Details :
Acceptable customization
Type: :
Hybrid Stepper Motor
Current ： :
3A
Key words: :
NEMA23 stepper motor, open loop stepper motor,
Phase: :
2
Holding Torque: :
1.8NM
Step Angle(degrees): :
1.8
Shaft Length: :
21MM
Shaft Diameter: :
8MM
Weight: :
1.2KG
Application :
Automatic Product
Description

1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver

Nema 23 Stepper Motor is widely used in a great number of industries of engraving machines, embroidery machines, wire-stripping machines, terminal crimping machines, hosiery machines, textile machinery, computerized flat knitting machines, food machines, packaging machinery, stage lighting, winding machines, industrial printers, 3-D printers, medical equipment and etc., in particular, the customers comment well upon the newly-produced servo motors with 10 poles, due to their attributes of higher precision, lower low-speed pulse, higher RPM, more superior features of servo, as well as lower vibration and less noise.

1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver

57BYGH 2 PHASE STEPPER MOTOR
MODEL STEP ANGLE BODY LENGTH CURRENT RESISTANCE INDUCTANCE HOLDING TORQUE POSITIONING TORQUE MOMENT INERTIA LEAD NO. WEIGHT
　 (.) L(MM) (A) (Ω) (mH) (NM) (NCM) (GCM2) 　 (KG)
57BYGH76-3004 1.8 7 3.0 1.3 4.2 1.8 4 350 4 1.2
57BYGH76-4204 1.8 76 4.2 0.4 1.2 1.8 4 350 4 1.2

Stepper motor specification:

NEMA 23 hybrid stepper motor can be used as a unipolar or bipolar stepper motor and has a 1.8° step angle (200 steps/revolution). Each phase draws 1 A at 5.7 V, allowing for a holding torque of 4 kg/cm (55 oz-in).

Production equipment:

1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver

Related Qualification Certificate:

1.8N.m 2 Phase High Torque Nema 23 Hybrid Stepper Motor and Driver

Our nema 23 stepper motors in seven different power sizes with torque up to 3Nm (425oz-In) always maintaining the flange in standard NEMA23. Some models are offered with two different wirings to best fit in the application.
Stepper motor shaft can be supplied with a diameter of 6,35mm (0,250In) or 8mm (0,315In) with flattening (recommended for motors with torque over 1,5Nm 213In).
We supply the highest torque amongst the motors with NEMA23 flange available on the market
