6mm shaft low noise 24V brushless dc gear motor
6mm shaft low noise 24V brushless dc gear motor
Specifications
Place of Origin :
China
Brand Name :
HOTEC
Certification :
CE,ROHS
Model Number :
HT-BL-SOG37B
MOQ :
500 pcs
Packaging Details :
Foam first ,then cardboard box
Delivery Time :
20 -25 days
Payment Terms :
T/T, Paypal ,Western Union
Supply Ability :
5000 pcs/day
Description

Model NO: HT-BL-SOG37B

Product: Spur gear motor

Gear Ratio sheet :

Gear Ratio Stage

2

3

4

5

6

Gear Ratio

10

20

50

120

450

30

70

150

490

90

210

630

270

810

Gearbox Length(L)

27

29

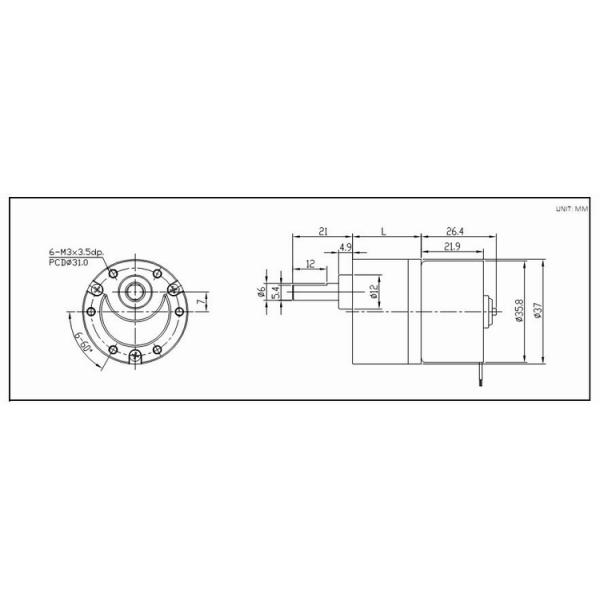

Drawing:

6mm shaft low noise 24V brushless dc gear motor

Reference data:

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

OPERATION RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

HT-BL-SOG37B-24240

20.0-28.0

24

240

≤0.07

192

≤0.25

0.24

HT-BL-SOG37B-24120

20.0-28.0

24

120

≤0.07

96

≤0.25

0.48

HT-BL-SOG37B-2480

20.0-28.0

24

80

≤0.07

61

≤0.25

0.72

HT-BL-SOG37B-2448

20.0-28.0

24

48

≤0.07

36

≤0.25

1.2

HT-BL-SOG37B-2434

20.0-28.0

24

34

≤0.07

25

≤0.25

1.6

HT-BL-SOG37B-2427

20.0-28.0

24

27

≤0.07

20

≤0.25

2

HT-BL-SOG37B-2420

20.0-28.0

24

20

≤0.07

14.5

≤0.25

2.7

HT-BL-SOG37B-2416

20.0-28.0

24

16

≤0.07

11.5

≤0.25

3.3

HT-BL-SOG37B-2411.5

20.0-28.0

24

11.5

≤0.07

8

≤0.25

4.6

HT-BL-SOG37B-2409

20.0-28.0

24

9

≤0.07

6

≤0.25

6

HT-BL-SOG37B-245.3

20.0-28.0

24

5.3

≤0.07

3.7

≤0.25

10

HT-BL-SOG37B-2405

20.0-28.0

24

5

≤0.07

3.4

≤0.25

11

HT-BL-SOG37B-243.8

20.0-28.0

24

3.8

≤0.07

2.5

≤0.25

12

HT-BL-SOG37B-2403

20.0-28.0

24

3

≤0.07

2

≤0.25

15

Pls note
The data sheet is only for your reference .
The speed is adjustable as per your request .
The gearbox can match other motor.
The shaft can be customized .
