metal geadhead 3V 6V 12V 24V micro gear reduction motors
metal geadhead 3V 6V 12V 24V micro gear reduction motors
Specifications
Place of Origin :
China
Brand Name :
HOTEC
Certification :
CE,ROHS
Model Number :
HT-SOG13
MOQ :
1000 pcs
Packaging Details :
Foam first ,then cardboard box
Delivery Time :
20 -25 days
Payment Terms :
T/T, Paypal ,Western Union
Supply Ability :
5000 pcs/day
Description

Model: HT-SOG13

Product: Precise spur gear motor

Typical application :

1,Security and safe industry .

2,Robotics and automation

3,Electric valve


metal geadhead 3V 6V 12V 24V micro gear reduction motors

Gear Ratio Stage

2

3

4

5

Gear Ratio

10

35

115

35

63

150

86

360

Gearbox Length(L)

11

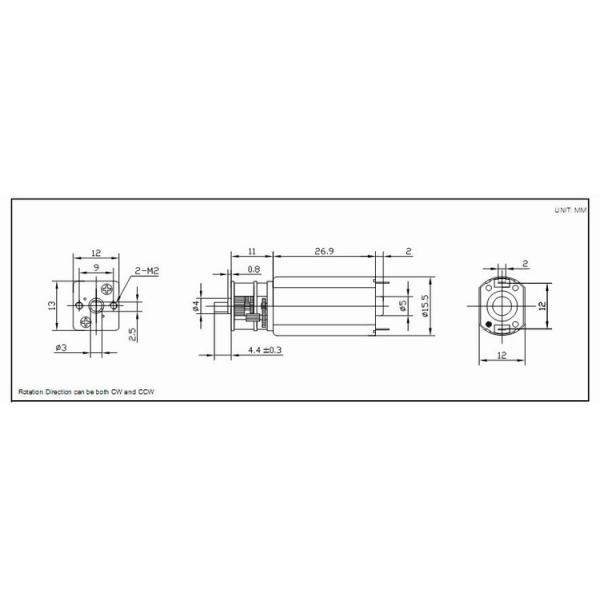

Drawing:

metal geadhead 3V 6V 12V 24V micro gear reduction motors

Reference data:

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

OPERATION RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

HT-SOG13-121200

3.0-7.2

6.0

67

≤0.05

47

≤0.19

0.4

HT-SOG13-12342

3.0-7.2

6.0

27

≤0.05

19

≤0.19

1.2

HT-SOG13-12190

3.0-7.2

5.0

242

≤0.05

176

≤0.19

0.12

HT-SOG13-12139

3.0-7.2

5.0

134

≤0.05

98

≤0.19

0.23

HT-SOG13-12104

3.0-7.2

5.0

99

≤0.05

72

≤0.19

0.31

HT-SOG13-1280

3.0-7.2

5.0

74

≤0.05

52

≤0.19

0.4

HT-SOG13-1248

3.0-7.2

5.0

56

≤0.05

40

≤0.19

0.52

HT-SOG13-1233

3.0-7.2

5.0

23

≤0.05

16

≤0.19

1.20

HT-SOG13-05150

1.5-4.5

3

143

≤0.10

104

≤0.50

0.06

HT-SOG13-05100

1.5-4.5

3

79

≤0.10

57

≤0.50

0.12

HT-SOG13-0571

1.5-4.5

3

58

≤0.10

42

≤0.50

0.16

HT-SOG13-07250

1.5-4.5

3

33

≤0.10

24

≤0.50

0.27

HT-SOG13-0550

1.5-4.5

3

14

≤0.10

10

≤0.50

0.65

Pls note
The data sheet is only for your reference .
The speed is adjustable as per your request .
The gearbox can match other motor.
The shaft can be customized .
