precise metal brush off-center shaft 30mm 24v geared motor
precise metal brush off-center shaft 30mm 24v geared motor
Specifications
Place of Origin :
China
Brand Name :
HOTEC
Certification :
CE Rohs
Model Number :
HT-SOG30A
MOQ :
500 pcs
Packaging Details :
Foam first ,then cardboard box
Delivery Time :
20 -25 days
Payment Terms :
T/T, Paypal ,Western Union
Supply Ability :
5000 pcs/day
Description

Model: HT-SOG30A

Product: Precise spur gear motor

Typical application :

1,Security and safe industry .

2,Robotics and automation

3,Electric valve

Gear Ratio sheet:

Gear Ratio Stage

2

3

4

5

Gear Ratio

10

20

60

120

30

90

180

100

270

300

Gearbox Length(L)

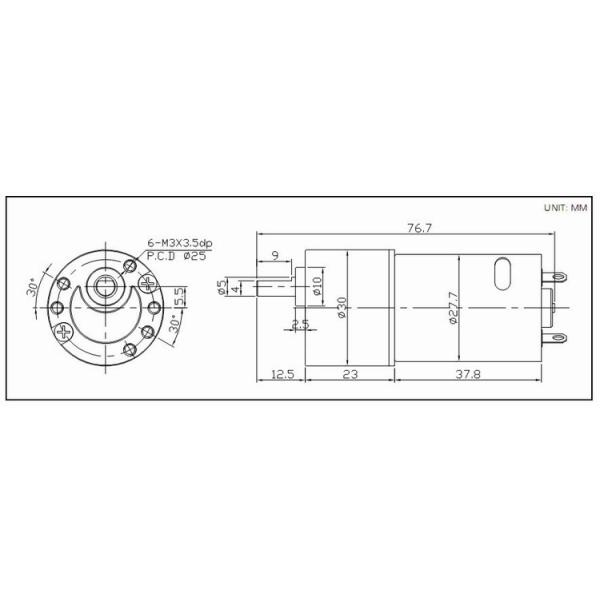

Drawing :precise metal brush off-center shaft 30mm 24v geared motor

Reference data:

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

OPERATION RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

HT-SOG30A-24600

6.0-14.0

12.0

600

≤0.15

470

≤0.55

0.6

HT-SOG30A-24300

6.0-14.0

12.0

300

≤0.15

235

≤0.55

1.0

HT-SOG30A-24200

6.0-14.0

12.0

200

≤0.15

156

≤0.55

1.5

HT-SOG30A-24100

6.0-14.0

12.0

100

≤0.15

78

≤0.55

2.7

HT-SOG30A-2466

6.0-14.0

12.0

66

≤0.15

52

≤0.55

4.0

HT-SOG30A-2460

6.0-14.0

12.0

60

≤0.15

47

≤0.55

4.5

HT-SOG30A-2450

6.0-14.0

12.0

50

≤0.15

37.5

≤0.55

5.0

HT-SOG30A-2433

6.0-14.0

12.0

33

≤0.15

25

≤0.55

7.5

HT-SOG30A-2422

6.0-14.0

12.0

22

≤0.15

17

≤0.55

10*

HT-SOG30A-2420

6.0-14.0

12.0

20

≤0.15

15

≤0.55

10*

HT-SOG30A-1230

4.6-7.2

6.0

30

≤0.07

22.5

≤0.25

1.9

HT-SOG30A-1225

4.6-7.2

6.0

25

≤0.07

18.7

≤0.25

2.0

HT-SOG30A-1217

4.6-7.2

6.0

17

≤0.07

12.5

≤0.25

3.2

HT-SOG30A-1211

4.6-7.2

6.0

11

≤0.07

8.3

≤0.25

4.8

HT-SOG30A-1210

4.6-7.2

6.0

10

≤0.07

7.5

≤0.25

5.3

Pls note

The data sheet is only for your reference .

the speed is adjustable as per your requirements .

The gearbox can match other motors

The shaft size can be customized .

precise metal brush off-center shaft 30mm 24v geared motor
