12V 24v flat gearbox reversible brushless gear motor
12V 24v flat gearbox reversible brushless gear motor
Specifications
Place of Origin :
China
Brand Name :
HOTEC
Certification :
CE Rohs
Model Number :
HT-COG95A
MOQ :
500 pcs
Packaging Details :
Foam first ,cardboard box
Delivery Time :
20 -25 days
Payment Terms :
T/T, Paypal ,Western Union
Supply Ability :
5000 pcs/day
Description

Model NO: HT-BL-COG95A

Product: brushless flat gearbox motor .

Typical application :

1,Home and office automation

2,Equipment and apparatus

3,Ventilation and fan

Gear Ratio sheet:

Gear Ratio Stage

2

4

5

Gear Ratio

37

162

594

60

265

651

66

315

973

86

1059

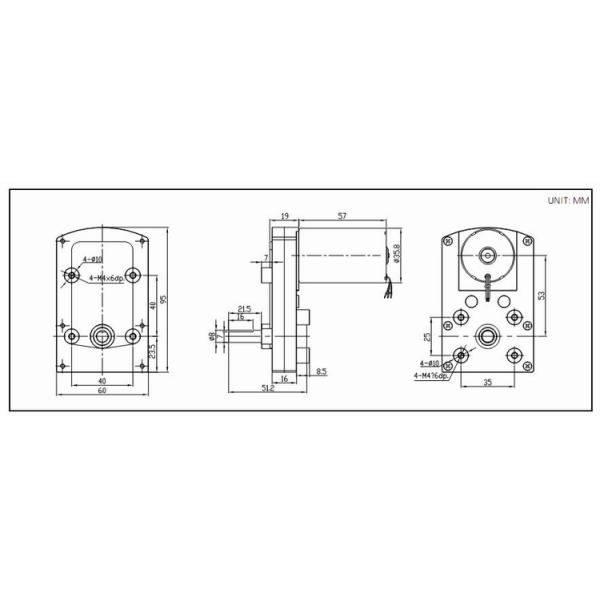

Drawing:12V 24v flat gearbox reversible brushless gear motor

Reference data:

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-BL-COG95A-24135

20.0-28.0

24VDC

135

105

≤0.35

7

≤4.0

30

HT-BL-COG95A-2483

20.0-28.0

24VDC

83

63

≤0.35

11.5

≤4.0

48

HT-BL-COG95A-2476

20.0-28.0

24VDC

76

57

≤0.35

12.5

≤4.0

53

HT-BL-COG95A-2458

20.0-28.0

24VDC

58

43

≤0.35

16

≤4.0

68

HT-BL-COG95A-2431

20.0-28.0

24VDC

31

22

≤0.35

29

≤4.0

129

HT-BL-COG95A-2419

20.0-28.0

24VDC

19

14

≤0.35

47

≤4.0

210

HT-BL-COG95A-2416

20.0-28.0

24VDC

16

11

≤0.35

55

≤4.0

250

HT-BL-COG95A-248.5

20.0-28.0

24VDC

8.5

6

≤0.35

102

≤4.0

475

HT-BL-COG95A-247.7

20.0-28.0

24VDC

7.7

5.4

≤0.35

112

≤4.0

500*

HT-BL-COG95A-2405

20.0-28.0

24VDC

5

3.3

≤0.35

158

≤4.0

600*

HT-BL-COG95A-244.7

20.0-28.0

24VDC

4.7

3

≤0.35

172

≤4.0

600*

Pls note
The data sheet is only for your reference .
The speed is adjustable as per your request .
The gearbox can match other motor.
The shaft can be customized .
