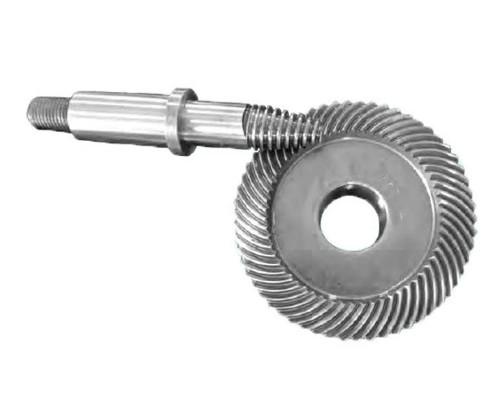

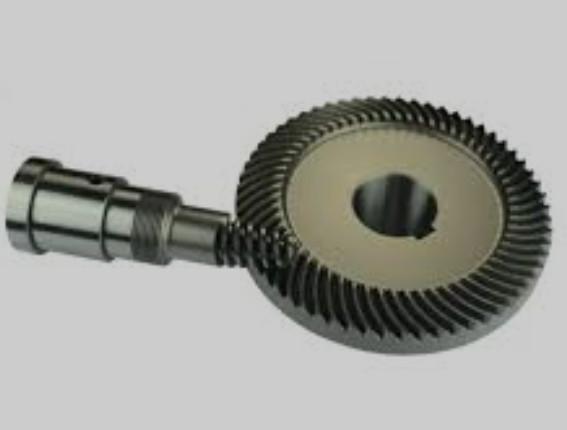

Rotary Platform Hypoid Gear Spiral Bevel Gear Set High Ration And High Precision

Quasi-Hyperbolic Rotary Platform Gear is a specially designed gear system used to achieve rotation or positioning at a specific angle. This type of gear system is typically used in mechanical equipment that requires precise angular adjustment or rotation, such as robot joints, precision turntables, measuring equipment, or other automated systems.

Its functions include:

• Precise angular positioning: The hypoid gear design enables precise angular positioning, which is critical for mechanical equipment that requires high-precision operation.
• High torque transmission: Due to its unique design, hypoid gears can transmit larger torques in a smaller space, which is very beneficial for compact mechanical designs.
• Reduce backlash: The design of hypoid gears helps reduce backlash (i.e., the gap between teeth when gears mesh) in the gear system, thereby improving the positioning accuracy and smooth motion of the system.
• Optimize force distribution: Hypoid gears can optimize force distribution, reduce stress concentration during gear meshing, and improve the durability and overall performance of the gear.
• Space efficiency: The design of the hypoid gear allows for a more compact mechanical structure, which is particularly important in space-constrained applications.
• Reduced Maintenance: Due to good design and material selection of hypoid gears, they generally have a long service life and low maintenance requirements.
• Improved efficiency: The design of hypoid gears helps reduce energy losses and improves the efficiency of the entire gear system.

In summary, hypoid rotating platform gears play an important role where high precision, high torque and space efficiency are required. Their design and application ensure the stability and reliability of mechanical systems while improving operational precision and efficiency.

Minimum number of teeth for spiral bevel gears and hypoid gears without undercutting

DINGSCO

We're the production R&D base specializing in professional design, reserch, manufacture and sales of high-quality small module spiral bevel gears and high reduction hypoid gears and cylindrical gears. We have strong scientific research and development capabilities and is also equipped a full set of advanced equipment including seven-axis five-linkage CNC spiral bevel gear grinding machines and gear milling machines. By making the best use of the scientific and technological achievements and equipment of the Gear Research Institute of Central South University, machanical processing, heat treatment and testing. We have developed high-quality products featuring high reduction, high speed, heavy load, low noise and less teeth for users.

Non-standard customization of Dinghan gears, our company has a complete set of software to realize digital closed-loop manufacturing of spiral bevel gears, Functions such as gear design, strength calculation, contact analysis, tool calculation, tooth profile error reversal, etc. can be realized. Machining methods include five tools machining(fixed setting) & G-plete of tapper , spiral format tilt(SFT) method & hypoid format tilt (HFT) method of Cycloid equidep, etc.
