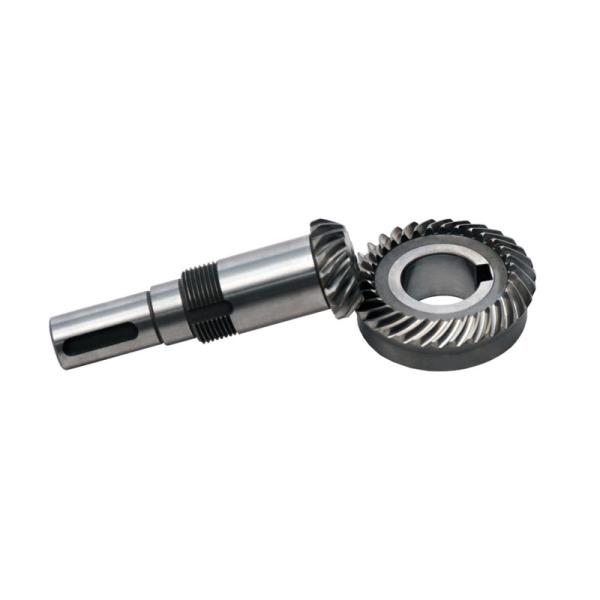

20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission
20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission
20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission
20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission
Specifications
Brand Name :
SJ, DH
Certification :
ISO9001
Place of Origin :
Changsha, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
Sample order: 7 days
Packaging Details :
According to customer's requirement
Material :
Steel
Shape :
Spiral
Tooth profile :
Gleason type
Processing :
Grinding
Heat treatment :
Carburizing,quenching, carbonitriding, high-frequency, quenching, tempering etc
Service :
Customized
Description
What is a gear?
Gears are mechanical parts with teeth that mesh with each other. It is widely used in mechanical transmission and the entire machinery field.
Gear transmission can complete functions such as deceleration, speed increase, and direction change.
What are the characteristics of grinding spiral bevel gears?
The spiral bevel gear is conical, like an umbrella, with high transmission efficiency, stable transmission ratio, large arc overlap coefficient, high load-bearing capacity, stable and smooth transmission, reliable operation, compact structure, energy and material saving, space saving, and wear resistance. Long life and low noise.
Why choose us?
1.Internationally, power transmission gear devices are developing in the direction of miniaturization, high speed, and standardization. We are experts dedicated to high-quality small module gears. Our factory was founded in 1994 and has 30 years of industry experience.
2.Our company currently has one doctorate (member of the China Gear Standardization Technical Committee) and one graduate student engaged in bevel gear research. We have a complete set of software for digital closed-loop manufacturing of spiral bevel gears, specializing in gear R&D, design, strength verification and high-precision gear manufacturing.
3.Our company has a complete set of advanced production equipment and testing equipment such as multiple CNC 7-axis 5-linkage spiral bevel gear grinding and gear milling machines. It has successively developed high-quality products for users such as high reduction ratio, high speed, heavy load, low noise, and low number of teeth, which can meet the high-quality gear needs of industries such as reducers, industrial robots, industrial sewing machines, and model aircraft.

Grinding Helical Tooth Spiral Bevel Gear High Precision for Vehicle Transmission
Specification
Material 20CrMnTi, 20CrMo,
42CrMo, 45# etc		 Surface Bright
Shape Spiral Pressure Angle 20°, also can be customized
Tooth Profile Gleason Type Accuracy Grade ISO 6-7 Grade
Processing Grinding Module (M) ≤4
Heat Treatment Carburizing, quenching, carbonitriding, high-frequency, quenching, tempering etc. Application

Automotive transmissions, machine tool turrets, reducers, industrial robots, etc.

Advanced manufacturing equipment
DH has multiple CNC 7-axis 5-linkage spiral bevel gear grinding machines and gear milling machines that can process high-reduction ratio hypoid and transverse cured tooth coupling.

20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission

Advanced testing equipment
Utilize a high-precision gear measurement center to complete gear pitch accuracy detection, tooth profile error detection and inverse correction of tooth profile errors.

20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission 20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission

Professional software
Our factory has a complete set of software to realize digital closed-loop manufacturing of spiral bevel gears, Functions such as gear design, strength calculation, contact analysis, tool calculation, tooth profile error reversal, etc. can be realized. Machining methods include five tools machining(fixed setting) & G-plete of tapper , spiral format tilt(SFT) method & hypoid format tilt (HFT) method of Cycloid equidep, etc.

20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission

20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission20 Tooth 16 Tooth 10 Tooth Helical Spiral Bevel And Pinion Gear Vehicle Transmission
