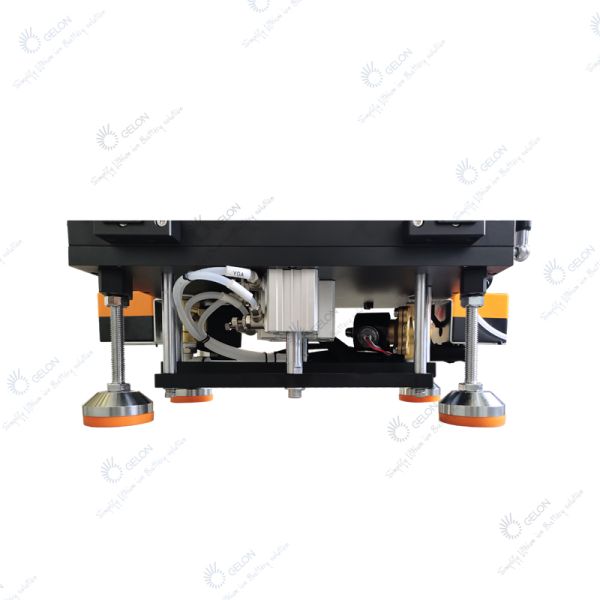

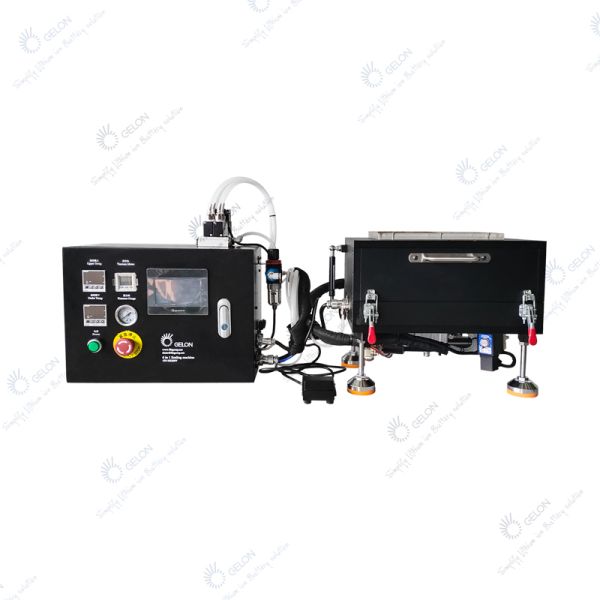

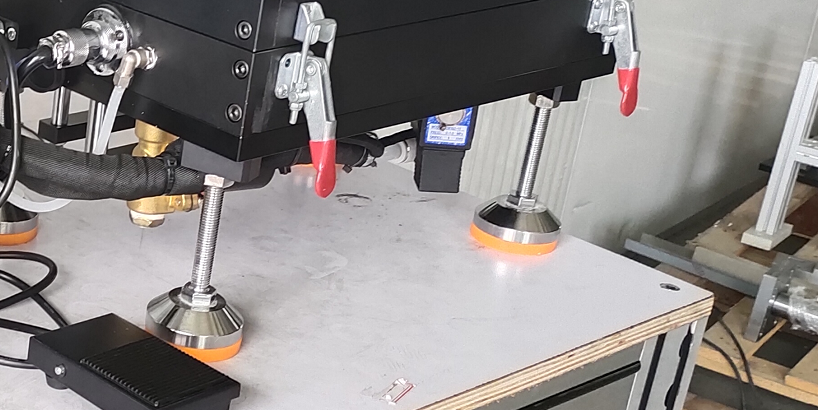

Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer
Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer
Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer
Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer
Specifications
Brand Name :
Gelon
Model Number :
GN-LHY300V
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 Pcs
Price :
usd9110/ set - usd13050/set
Payment Terms :
T/T
Supply Ability :
200 pcs/days
Delivery Time :
10-15 work days
Packaging Details :
Wooden packing
Product name :
Pouch Cell Six-In-One Sealing Machine
Sealing time :
0-99s (adjustable)
Side sealing length :
290mm
Sealable battery size :
Max L280mm*W280mm
Dimension(L*W*H) :
L700*W280*H330mm
Vacuum degree :
Not less than -95KPa
Power :
2200W
Application fields :
Li-ion battery
Description

Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer

Equipment characteristics

1.Integrated design,the main body of the equipment can be placed in the glove box.
2.It is suitable for top seal, side seal, one seal, two seal, liquid injection and vacuum standing process of medium and small soft pack lithium electronic battery.
3. Maintain good vacuum degree to ensure the moisture content of battery products.
4. Two perspective Windows are designed, through which changes in the cavity can be observed during operation.
5. Use button switch to control cylinder action, driven by PLC.
6. Compatible with 6 functions, to achieve a multi-purpose machine.
Name
Parameter
Remark
Upper/lower die mold temperature
No more than 250 ℃
Temperature free setting
Vacuum degree
Not less than -95KPa
Side sealing
3-4s is recommended
Side sealing thickness
0-0.5mm
Side sealing length
290mm
Sealable battery size
Max L280mm * W280mm
Electrolyte filling pump
Precision rotary plunger, electrolyte injection volume is adjustable
Need to add extra cost when need to equipped with the pump
Cycle times
Can be set as 0-99.99s
Air supply
0.5-0.8MPa nitrogen cylinders, or 0.7MPa compressed air
This device can be used in the glove box
Vacuum volume
≥30m³/h
Packing size
L900* W380* H520mm
Gross weight
About 96kgs
Used of the site
Can be used in the glove box freely
Warranty
1 year wanrrianty, lifetime maintenance
Company Profile


Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer
Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer
We could supply one stop solution ( turn key project) for you.

1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.

2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer
Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer
Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer
Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer
Six-in-one Pouch Cell Machine Li-ion Battery Top/ Side Sealer


RFQ:
Q: Are you trading company or manufacturer ?
Q: Can I visit your factory?
A:Yes,very welcome.

Q:How can I visit your company?
A:You can take flight to Linyi or Shenzhen airport ,we can pick you up there.
Please mail us when you have the visit plan,we will confirm the schedule with you.

Q:What is your terms of delivery?
A:We accept EXW, FOB, CIF,DAP etc. You can choose the one which is the most convenient or cost effective for you.

Q: How is your delivery time?
A: 1-3 days for sample orders or some equipments in stock.
10-30 days for mass production order(based on different quantities)

Q: What about the after-sale service?
A: One years warranty and lifetime free technical support.

Q: Do you provide other equipments or materials?
A: Yes, we provide full set lithium ion battery materials, equipments and technology for lab line ,pilot line and production line.
