Specifications
Brand Name :
Gelon
Model Number :
GN-DP200S
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Price :
USD8250-8400/SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000sets/month
Delivery Time :
about 15days
Packaging Details :
Wooden Case/Can Custom
.Correction Accuracy :
0.5mm
Separator width :
≤200mm
Max Separator diameter :
φ250mm
Appliable electrode size :
L（100-200）mm, W（90-200）mm, T：4-12mm；
Tab length :
≤30mm
Swing stroke :
400mm
Power supply :
AC220V/50Hz
Compressed sir source :
0.5MPa～0.7MPa
Description

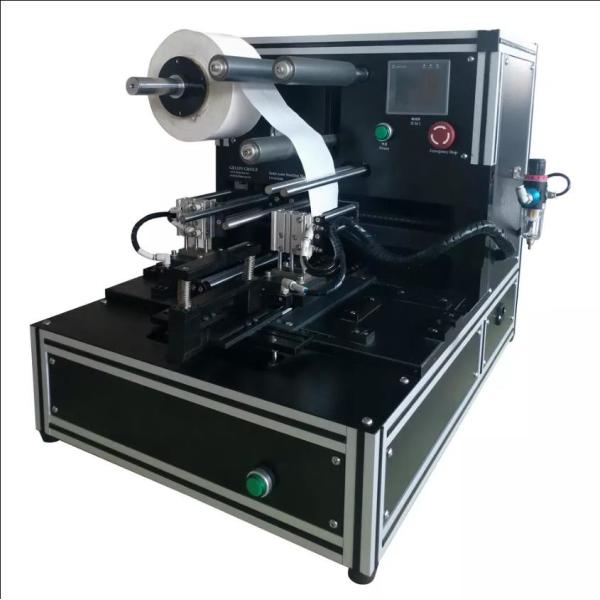

Desk type Semi-auto Stacking Machine Precise Alignment Pouch Cell Lab Line Electrode Stacker Z Stacking Equipment

This equipment is suitable for the lamination process of lithium ion battery
electrodes. The equipment adopts a tension roller structure design, automatic
constant tension control of the coil isolation film, and the motor drives the left and
right movement to realize the Z-type lamination. In this way, the entire cell’s
stacking assembling is realized. the separator feeding adopts constant tension, and
there is the automatic correction function of the electrode during the feeding
process, and the feeding is neat and consistent; it has the characteristics of high
stacking efficiency and high precision. Different electrode sizes can be realized by
adjusting the fixture, which is suitable for R&D and sample production of laminated
lithium-ion batteries.
Outer size
L710mm×W670mm×H770mm
NT weight
80Kg

Desk Type Semi Auto Electrode Stacking Machine Z Stacking Equipment

We supply:
1.Full set of lithium battery materials,including :
LiFePO4,LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and Other Cathode&Anode Battery Materials;Aluminum foil,Copper foils,Battery separator,etc.

2.Full set of lithium battery equipment,for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3.Full set of lithium battery technology.
we can design the laboratory and production line according to customer's request.
Any more info, pls kindly contact :Ella@libgroup.net
