Specifications
Brand Name :
GELON
Model Number :
GN- Pouch Cell Pilot Line
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 /set
Price :
USD 8000-89999 /set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100/set/year
Delivery Time :
7-60/sky
Packaging Details :
Standard Export Package of pouch cell lab line
Product name :
POUCH BATTERY PRODUCTION LINE
Type :
5AH, 10AH, 50AH, 100AH, 200AH
The capacity :
500pcs/day, 1000pcs/day, 10000pcs/day
battery :
Electric bikes, cars, cell phones
Warranty :
1 Year
Core Components :
PLC, Engine, Motor, Pump
Supply :
thermal battery materials
Feature :
Lab line, pilot line, production line
Description
Product Overview

Pouch battery production line
Gelon is a manufacturer for supplying lithium ion battery materials and equipment. We have more than 15 years' experience in this industry. We have the professional engineers to help you design the production line, and install the equipments, and also teach you how to use our equipments to make battery.
We can supply:
1. coin cell materials and equipment
2. Cylindrical cell production linem include 18650 cylinder cell, 26650 cylinder cell, 32650 cylinder cell, 21700 cylinder cell...
3. Prismatic cell materials and equipment line
4. Supercapacitor materials and equipment line
5. Other special battery...

Lithium ion Pouch Cell Pilot Line

Recommend Equipment:
Process
Item
Machine name
Specification
Slurry mixing
Mixer
Small planetary mixer
With 250ml/500ml SS container
Planetary mixer
Volume:2L,5L,10L,20L30L,etc
Electrode coating
Coater
Lab electric coating machine
Coating width :200mm,250mm,300mm ,etc
Lab Doctor blade continuous coating machine
temperature: room temperature ~ 150 ℃ adjustable;
Electrode width: ≤ 300mm;
Lab intermittent coater
Electrode width: ≤ 300mm
Lab slot die coater
Electrode width: ≤ 320mm
Electrode rolling
Rolling machine
Lab small electric rolling machine
Rolling width :200mm,250mm,300mm ,etc
Hydraulic lab single piece rolling machine
Electrode Max :300mm
Hydraulic continuous rolling
Roller size :dia200mm*300mm width
Electrode Punching
Punching machine
Lab electrode die cutter
Suitable for small size electrode cutting
Max. L80*W60mm
Semi-Automatic Die Cutter
Max die cutting size:300x200mm(can customize as your request)
Electrode stacking
Stackig machine
Manual stacking machine
Suitable for various electrode size stacking, manual

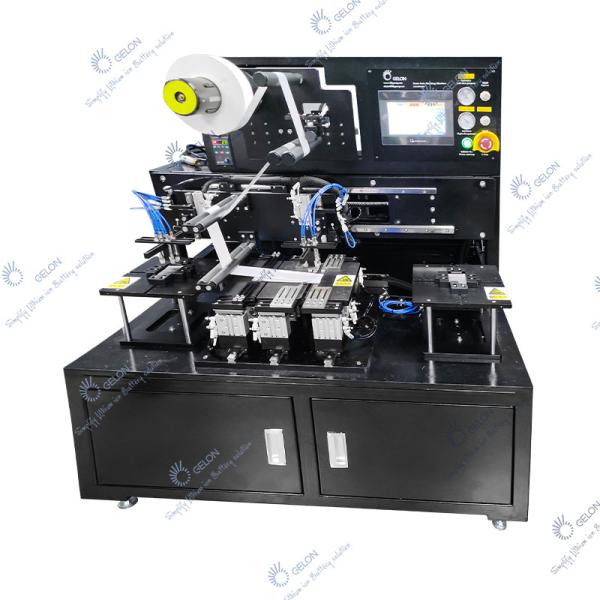

Semi-auto stacking machine
Max suitable electrode size:200mm*200mm
Tab welding
Ultrasonic welding machine
Tabs Ultrasonic welding machine
800W-8000W
Pouch cell case forming
Forming machine
Pouch Cell Case/Cup Forming Machine for Aluminum-Laminated Films
Can be customized as request
Top and side sealing
hot sealing machine
Top and side sealing machine for pouch cell case
200,300,400mm sealing length
Electrolyte injection
Electrolyte filling machine
Electrolyte injection pump
Can be choosed according to pouch cell size
Electrolyte Diffusion & Degassing
Electrolyte Diffusion & Degassing
Pouch Cell Electrolyte Diffusion/Degassing Chamber
Can be put into glove box
Type 200mm,300mm,400mm
Vacuum sealing
Vacuum sealing
Lab pouch cell case pre-sealing machine
Can be put into glove box
Sealing length200mm,300mm,400mm
Battery testing
Battery tester
5V 6A
Testing range:Current 6A
Voltage 5V
