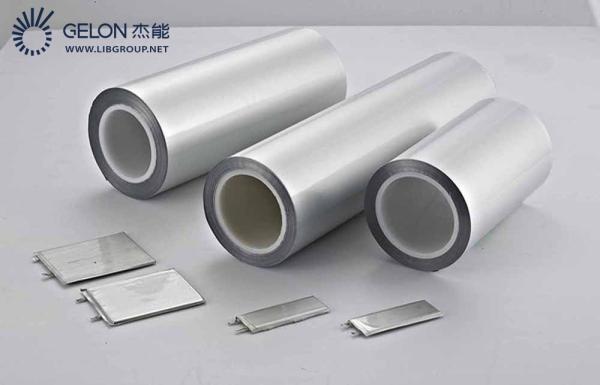

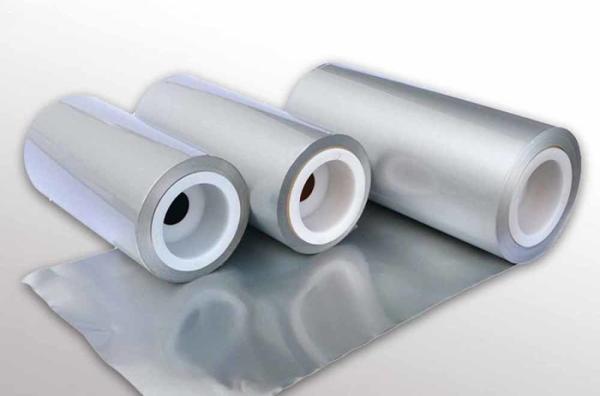

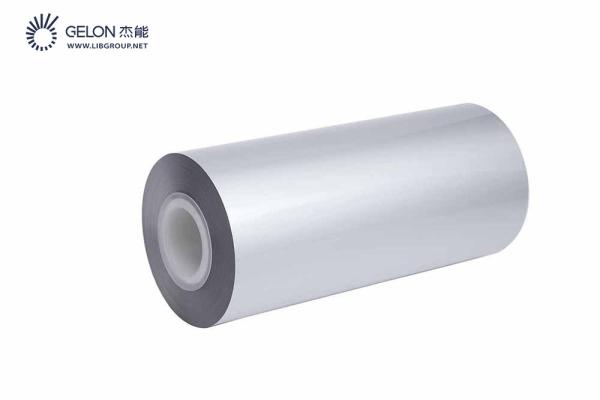

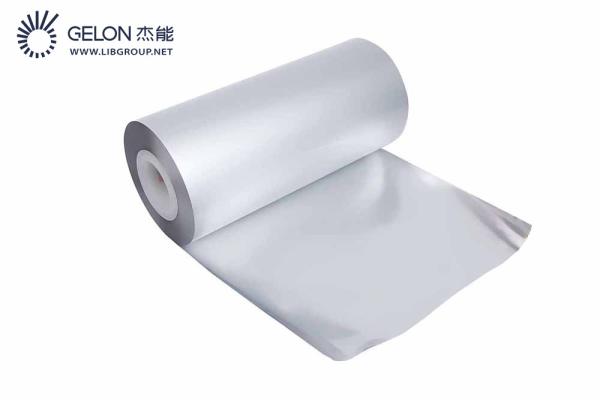

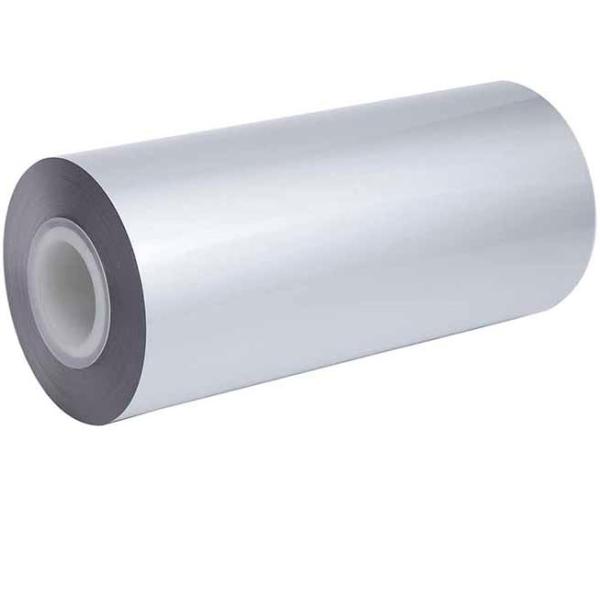

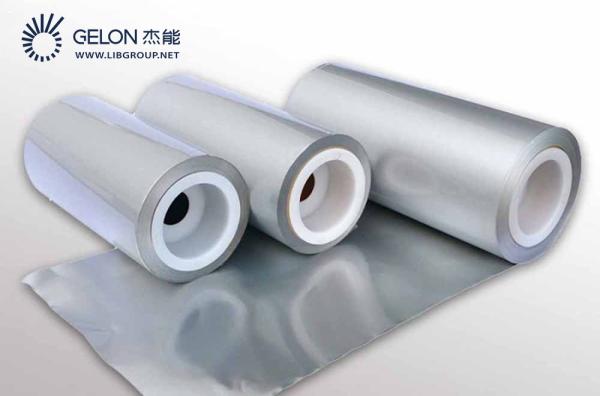

Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material

Specifications

Brand Name :

Gelon

Model Number :

GN- ALF

Certification :

Place of Origin :

China

MOQ :

1㎡

Price :

USD18/㎡

Payment Terms :

L/C, T/T, Western Union

Supply Ability :

10000 ㎡/Month

Delivery Time :

5-8work days

Packaging Details :

Standard Export Packaging.

Product name :

Aluminum Laminated Film

Thickness :

113μm

Width :

400mm

Length :

7.5m 50m

Polyamide (JIS Z1714) :

0.025mm(+-0.0025mm)

Aluminum foil (JIS A8079,A8021) :

0.040mm(+-0.004mm)

Molding Depth :

≥5.0mm

Usage :

Pouch Cell Case

Description

Lithium Ion Battery Cells Aluminum Laminated Film Pouch Cell Case Material

1. Product Description

#Aluminum Laminated Film for Lithium Ion Battery #Pouch Cell Case Material #Laminated Aluminum Foil

Aluminum laminated film is one of the five major materials of lithium ion battery, and it is pouch lithium battery packaging material. The aluminum laminated film consists of outer nylon layer/adhesive/intermediate aluminum foil/adhesive/internal heat seal layer.

Thickness: 88micron, 113micron,153micron

Width: 400mm

Length:300meters

2. Product Parameters

  	  			Product Specifications

  			Material
  			Aluminum Laminated Film ( Shodex)

  			Thickness
  			113μm

  			Width
  			400mm

  			Length
  			Length 7.5m 50m

  			Material & Composition

  			Polyamide (JIS Z1714)
  			0.025mm(+-0.0025mm)

  			Adhesive(Polyester-polyurethane)
  			4-5g/ m²

  			Aluminum foil (JIS A8079,A8021)
  			0.040mm(+-0.004mm)

  			Adhesive (Urethane-free Adhesive)
  			2-3g/m²

  			Polypropylene
  			0.040mm(+-0.004mm)

  			Quality inspection

  			Surface quality
  			Mat finish

  			Pinholes
  			Subject to the applicable aluminum foil standard

  			Impurity
  			1mm or less in diameter

  			Fish eye
  			2mm or less in diameter(clear),1mm or less in diameter(coloured)

  			Molding Depth
  			≥5.0mm

  			Electrical Insulating
  			Good

  			Heat Sealing Condition
  			180-190°C

3. Product Details

4.Related Products

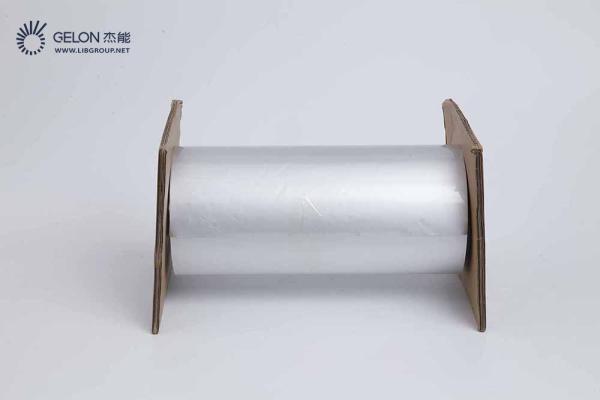

5.Packaging&Shipping

6.Company Profile

7.FAQ
