Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
Specifications
Brand Name :
Gelon
Model Number :
GN-18650/21700/26650/32650
Certification :
Ce
Place of Origin :
China
MOQ :
100 Sets
Price :
USD0.3-0.6/ set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000sets per month
Delivery Time :
5-8work days
Packaging Details :
Standard Export Packaging.
Product name :
18650 Battery Case
Case :
18mm(OD) x 17.5mm(ID) x 67mm(H)
Top Insulator :
12.5mm(D) x 0.19mm(H)
Insulating :
PET
Top Cap :
17.5mm(D) x 4.05mm(H)
Cap internal resistance :
10~18
Bottom Insulator :
0~170 RPM adjustable
Application :
Lithium Ion Battery Cylinder cell case
Description

Lithium battery case 18650/26650/21700/32650 Empty Cell Cans

1. Product Description

#Battery Case #Lithium battery case 18650/26650/21700/32650 #Cylinder Empty Cell Cans

Materials:
Case and cap are made of nickel plated A3 stell
Seal O-ring and spacer are made of nylon
Insulating gasket is made of PET
CAP :
Cap with Built-in PTC Thermistor for overcurrent protection
Material * Case and cap are made of Nickel plated A3 steel
* Seal O-rings are made of nylon
* Insulating gasket is made of PET

2. Product Parameters
18650 cylinder cell cases
Cap
Cap with Built-in PTC Thermistor
Dimensions (Dia x Height)
* Case: 18mm(OD) x 17.5mm(ID) x 67mm(H)
* Top Cap: 17.5mm(D) x 4.05mm(H)
* Top Insulator: 12.5mm(D) x 0.19mm(H)
* Bottom Insulator: 12.5mm(D) x 0.19mm(H)
Materials
* case and cap made of Nickel plated A3 steel and seal O-ring made of nylon
Weight
9.50 g/pcs
Note
Safety valve's open pressure: 2.5MPa (the cap valve will open to release interior high pressure if over 2.5MPa to ensure no explosion from the can)
21700 cylinder cell cases
Dimensions (Dia x Height)
* Case: 21.2mm (OD) x 20.7mm (ID) x 73.1mm (H)
* Top Cap: 20.4mm (D) x 4.2mm (H)
Materials
* case and cap made of Nickel plated A3 steel and seal O-ring made of nylon
Weight
* 8.455 g/pcs
Note
* Safety valve's open pressure: 1.8 - 2.4MPa (the cap valve will open to release interior high pressure if over 2.4MPa, to ensure
the can do not explode)
26650 cylinder cell cases
Dimensions (Dia x Height)
* Case: 26mm(OD) x 25.5mm(ID) x 68mm(H)

* Top Cap: 25.5mm(D) x 5mm(H)
Materials
* case and cap made of Nickel plated A3 steel and seal O-ring made of nylon
Weight
* 18.75 g/pcs
Note
* Safety valve's open pressure: 2.8MPa (the cap valve will open to release interior high pressure if over 2.8MPa to ensure no
explosion from the can)
32650 cylinder cell cases
Dimensions (Dia x Height)
* Case: 32mm(OD) x 31.5mm(ID) x 68mm(H)
* Top Cap: 31.5mm(D) x 5.3mm(H)
Materials
* case and cap made of Nickel plated A3 steel and seal O-ring made of nylon
Weight
* 28.85g/pcs
Note
* Min. order: 60 pcs per package

3. Product Details

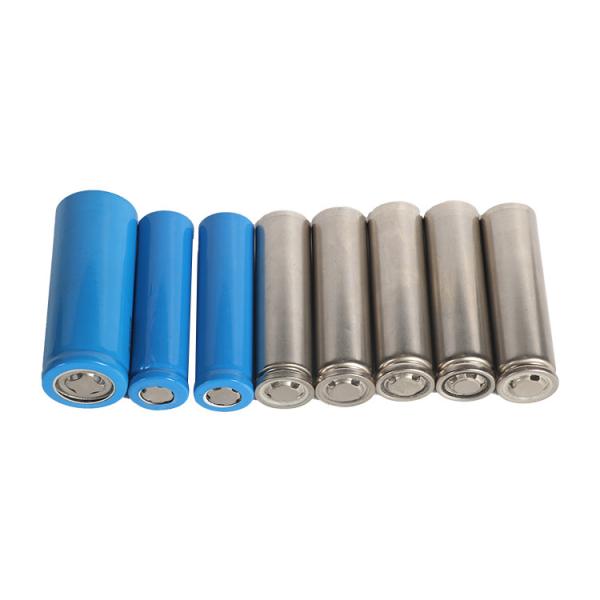

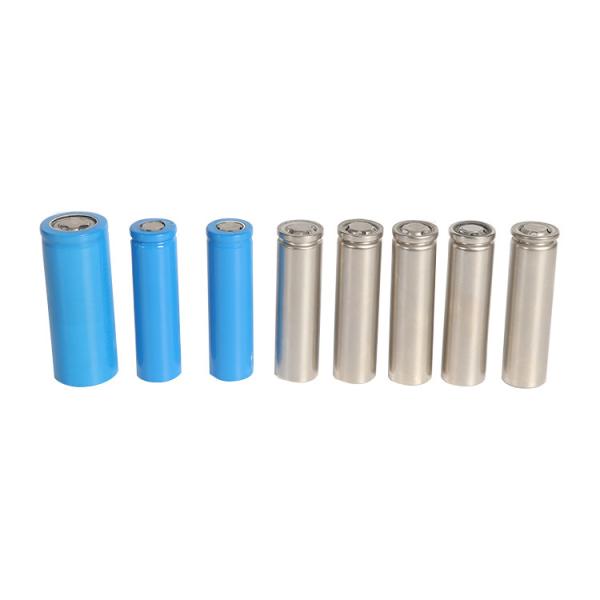

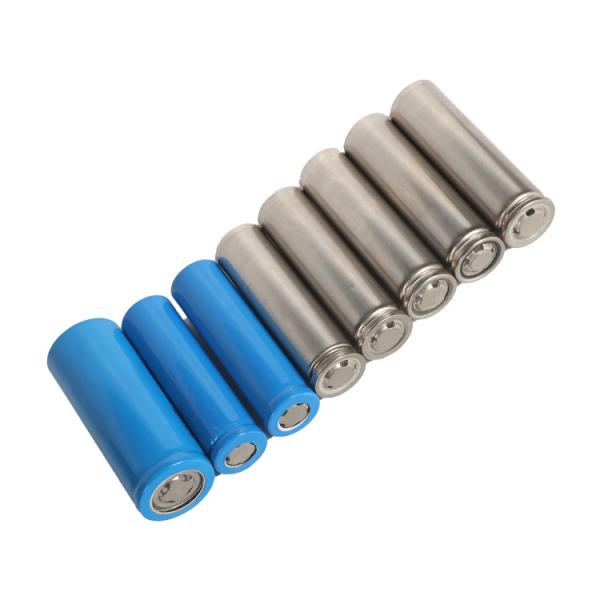

Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans

Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell CansCylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell CansCylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans

4.Related Products

Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans

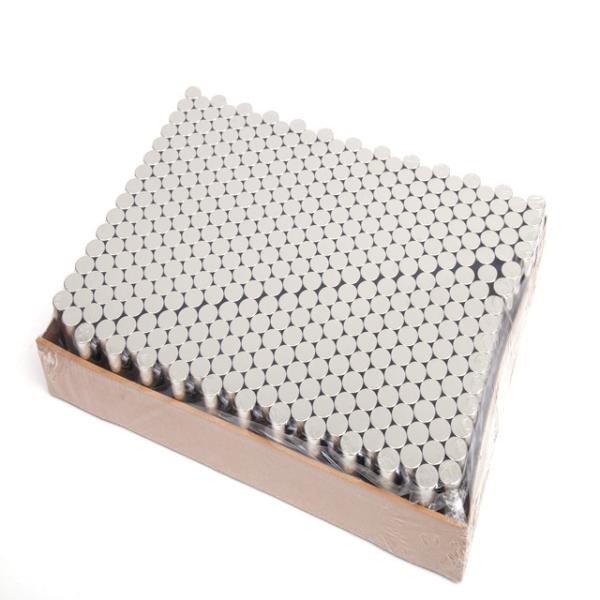

5.Packaging&Shipping

Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell CansCylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans

6.Company Profile

Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans

7.FAQ

Cylinder Cell Lithium Ion Battery Case 18650 / 26650 / 21700 / 32650 Empty Cell Cans
