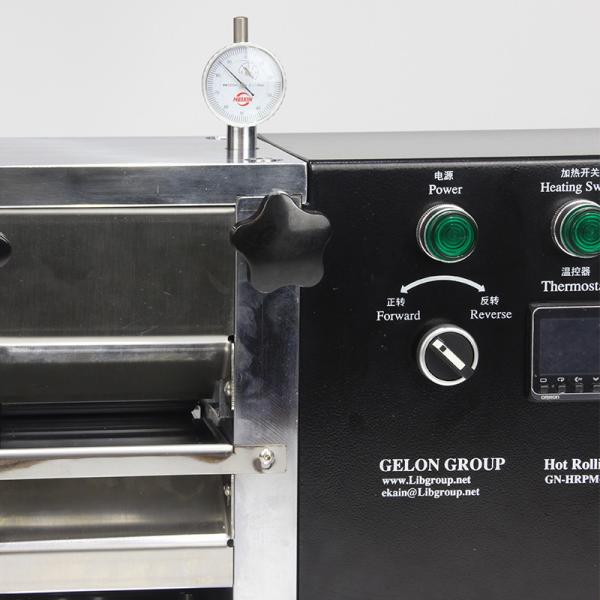

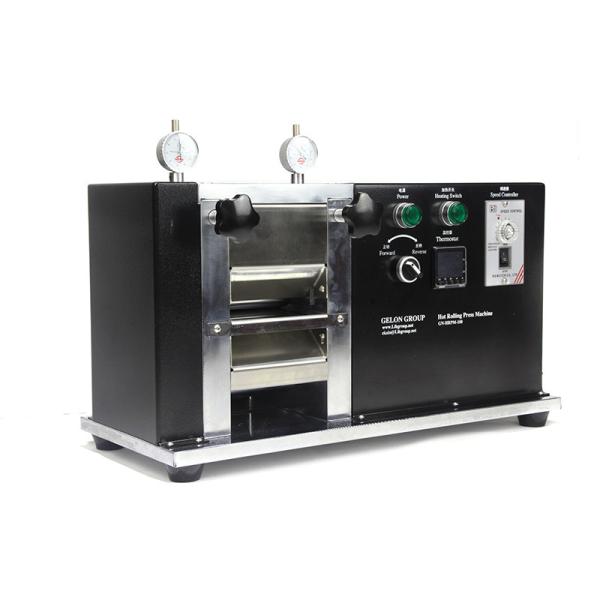

Lithium Ion Battery Pouch Cell Assembly Equipment 100mm Hot Rolling Press Machine
Lithium Ion Battery Pouch Cell Assembly Equipment 100mm Hot Rolling Press Machine
Lithium Ion Battery Pouch Cell Assembly Equipment 100mm Hot Rolling Press Machine
Lithium Ion Battery Pouch Cell Assembly Equipment 100mm Hot Rolling Press Machine
Specifications
Brand Name :
Gelon
Model Number :
GN-MR-100H
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
$2800
Supply Ability :
100set/month
Delivery Time :
within 15 days
Packaging Details :
wooden box
Product name :
Battery rolling press machine
Roll diameter :
Φ96mm
Roll gap :
0~1.2 mm（can be adjusted）
Roll width :
100mm
Roll gap adjust precision :
0.01mm
Roll material :
SS316
Speed :
Max.50mm/s
Power :
1800W
Net weight :
About 65kg
Description

lithium ion battery laboratory equipment 100mm width Small hot rolling press machine

Name Parameters Remarks
Roll diameter Φ96mm
Roll gap 0~1.2 mm(can be adjusted)
Roll width 100mm
Roll effective width 95mm
Roll gap adjust precision 0.01mm
Up/down roll heating temperature Suggest heating temperature: 60℃-80℃ Roll heating temperature Max:200℃
Roll material S136
Roll hardness Surface hardness ≥HRC55° Hardness layer thickness≥10mm Hardness decays after heating at 200℃＜5%
Roll driving Use special motor Can be used under argon gas
Speed Max.50mm/s Can be adjusted
Power supply AC220V/50Hz.110V/60Hz Can be customized according to customer requirements
Power 1800W
Equipment size About L550*W250*H390mm Filler gauge size included
Package size About L650*W340*H510mm
Net weight About 65kg
Gross weight About 74kg
Use the venue It can be used in the glove box. Please check whether the space of the glove box matches the overall size of the equipment.
Warranty 1 year warranty, lifetime maintenance

Lithium Ion Battery Pouch Cell Assembly Equipment 100mm Hot Rolling Press Machine

1 Standard exported package : Internal anticollision protection, external export wooden box packaging.

2 Shipping by Fedex, by air, by sea according to customers' requirements to find the most suitable way,
