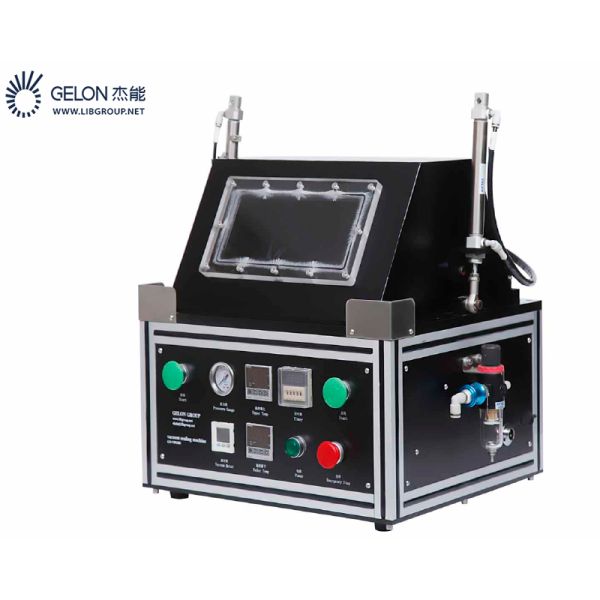

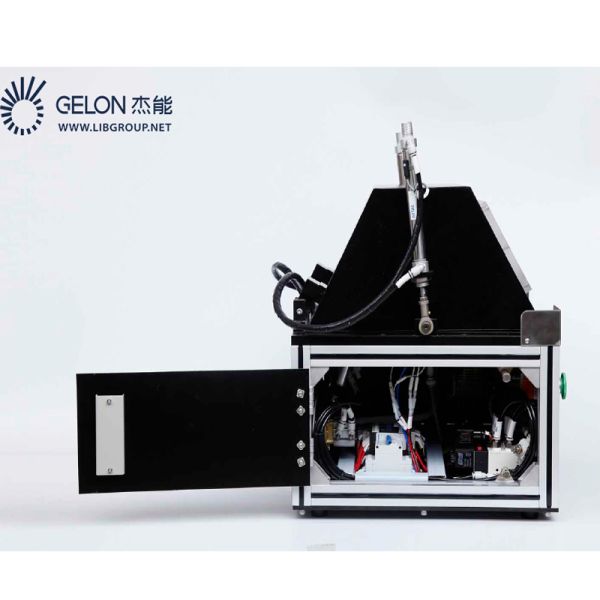

200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
200mm Pouch Cell Assembly Equipment Battery Vacuum Pre-sealing Machine
Specifications
Brand Name :
Gelon
Model Number :
GN-HS200V
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
$3580usd/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50set/month
Delivery Time :
2weeks
Packaging Details :
standard package
Max sealing width :
200mm
Voltage :
AC220/50HZ
Power :
1.7KW
Additional accessories :
Air source
Air source :
0.6~0.8Mpa
After Warranty Service :
Video technical support
Product name :
Presealing Machine
Description

Battery Vacuum Pre-sealing Machine Pouch Cell Assembly Equipment With Competitive Price

PRODUCT FEATURE

Sealing head length 200/300/400/500mm Output 300-600EA/H
Adapt Al laminated film thickness 0.1-0.3mm Sealing with 4mm/5mm/6mm
Sealing head parallel ±0.01mm Temperature Room temp to 25°c

1. The cavity is made of aluminum alloy, corrosion-resistant and structurally sound;

2. The vacuum is adjustable up to -90kpa ~ 0 (buyer's own vacuum pump);

3. The head temperature: room temperature to 250 ℃, the temperature is adjustable;

4. Temperature control accuracy:±3℃;

5. Heat sealing pressure:0~7Kg/cm2 adjustable;

6. Heat sealing time:0~99 seconds adjustable;

7. Edge width:5mm(According to customer requirements);

8. Maximum edge sealing size:200mm;

9. Head parallel: sanlian non-carbon carbon paper, head pressure is 0.6 MPa, the temperature at 200 ℃ seal of uniform

10. Air consumption: about 0.2l compressed gas/each time for sealing.

11. Air pressure working speed:≥180 times/h

12. Power: 800w heating pipe is adopted, and the power consumption is about 1.6kw when heating.

13. Power supply:220V/50Hz;

14. Power:1.7KW;

15. Weight:56.5KG

16. Compressed air source:0.6~0.8Mpa;
