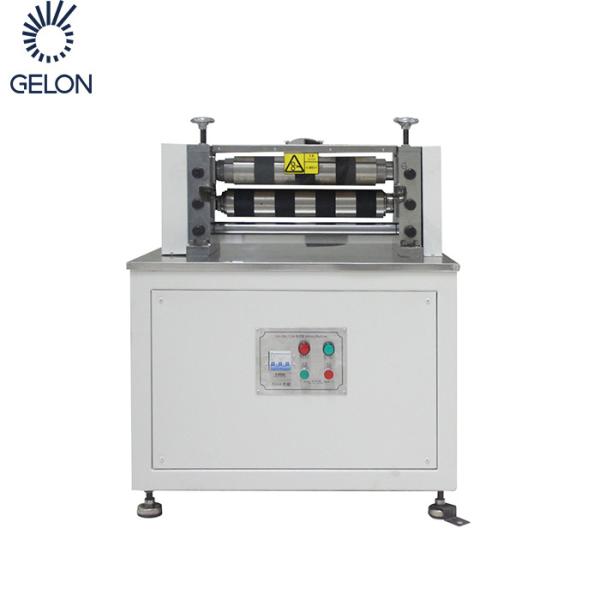

Semi Automatic Lithium Ion Battery Slitting Cutting Machine Electrode Slitting Machine
Semi Automatic Lithium Ion Battery Slitting Cutting Machine Electrode Slitting Machine
Semi Automatic Lithium Ion Battery Slitting Cutting Machine Electrode Slitting Machine
Semi Automatic Lithium Ion Battery Slitting Cutting Machine Electrode Slitting Machine
Semi Automatic Lithium Ion Battery Slitting Cutting Machine Electrode Slitting Machine
Semi Automatic Lithium Ion Battery Slitting Cutting Machine Electrode Slitting Machine
Specifications
Brand Name :
GELON
Model Number :
GN-S400A GN-S500A
Certification :
CE
Place of Origin :
Guangdong, China
MOQ :
1 set
Price :
USD 3850-4100 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10 sets per month
Delivery Time :
30 works day
Packaging Details :
Standard export package
Product name :
Semi Automatic Battery Slitting Machine
Power :
1.1KW, 220V
Dia :
Φ80mm
Speed :
600m/h
Slitting Precision :
±0.05mm
Max Slitting Size :
300mm (400mm, 500mm is also ok)
Min slitting size :
20mm(as customer's request)
Slitting length :
>1000mm
Description

Semi Automatic Lithium Ion Battery Slitting Cutting Machine Battery Equipment Electrode Slitting Machine

Description:

The equipment is used in slitting the pasted electrodes-plates of rechargeable Li-ion batteries. The substrate of electrode-plate is steel belt or copper belt. The verge of the cut plate is tidy, size of cut plate is of high precision, and the slit plates loss no powder, so the equipment is the important one in processing the electrodes-plates.

Index:

1. Power:1.1KW, 220V

2. Dia: Φ80mm
3. Speed: 600m/h
4. Slitting Precision: ±0.05mm
5. Max Slitting Size: 300mm (400mm, 500mm is also ok)
6. Min slitting size: 20mm(as customer's request)
7. Slitting Quantity: According to User's Battery Technology(Standard size above 35mm);
8. Set a slitting knife at random.
9. Quality: Tidy, No Burr.
10. Materials thickness: 15-350um
11. Slitting length: >1000mm

SPECIFICATION of SEMI-AUTO SLITTING MACHINE
Power
1.1KW 380V
Dia
84mm
Speed
10m/min
Slitting Precision
±0.05mm
Max Slitting Size
500mm
Size
880*620*950mm

Semi Automatic Lithium Ion Battery Slitting Cutting Machine Electrode Slitting Machine

Semi Automatic Lithium Ion Battery Slitting Cutting Machine Electrode Slitting MachineSemi Automatic Lithium Ion Battery Slitting Cutting Machine Electrode Slitting MachineSemi Automatic Lithium Ion Battery Slitting Cutting Machine Electrode Slitting Machine

What we supply:
1. Full set of lithium battery materials, including :
LiFePO4, LiMn2O4, LTO, LiNiMnCoO2(NMC), LiCoO2, Graphite(MCMB)and Other Cathode&Anode Battery Materials; Aluminum foil, Copper foils, Battery separator,etc.

2. Full set of lithium battery equipment, for example:
mixing machine --coating machine--vacuum oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.

3. Full set of lithium battery technology.
We can design the laboratory and production line according to customer's request.
Any more info, pls kindly contact : mavis@libgroup.net
