Pouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly Equipment
Pouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly Equipment
Pouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly Equipment
Pouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly Equipment
Pouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly Equipment
Pouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly Equipment
Pouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly Equipment
Pouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly Equipment
Specifications
Brand Name :
Gelon
Model Number :
GN-HS300V
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD 3000-6000/pc
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
500pcs/month
Delivery Time :
15-30 days
Packaging Details :
Wooden box
Powe supply :
AC220V/50Hz.110V/60Hz or customize
Vacuum pump capacity :
≥30m³/h
Power :
1800W
Gas source :
0.5~0.8MPa argon, nitrogen cylinder, or 0.7MPa compressed air
Function :
Pouch cell Vacuum Presealing
Heating Time :
0 - 99 seconds Adjustable
Temperature accuracy :
2℃
Description

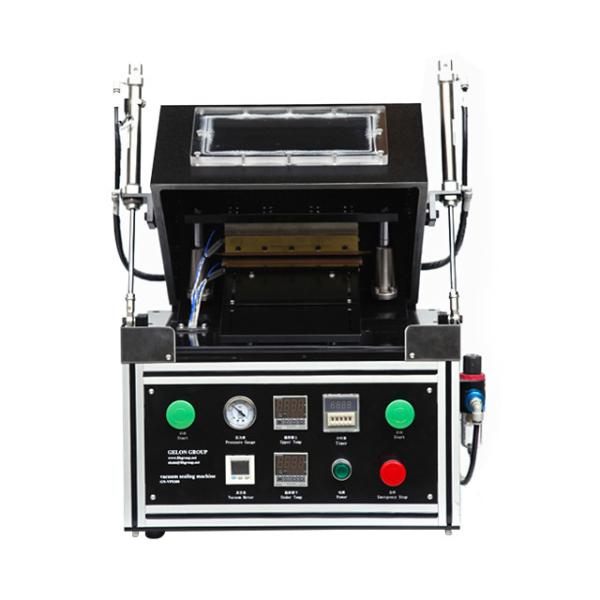

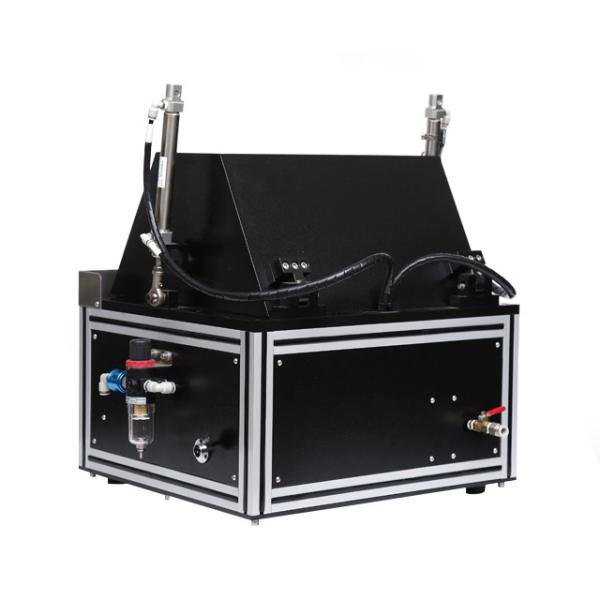

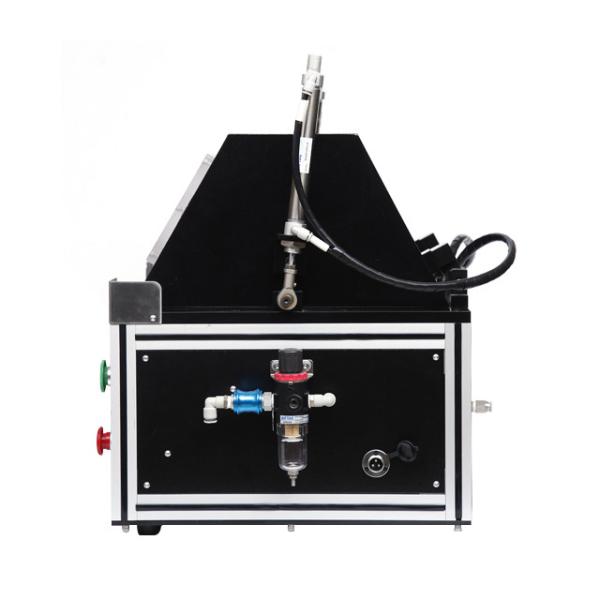

Pouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly Equipment

This equipment is mainly suitable for vacuuming and hot-pressing packaging of flexible packaging (medium and small size) lithium batteries after liquid injection and standing; the head is made of copper material, which has good heat transfer effect, saves power consumption and improves work efficiency. Compared with similar products, it is more energy-saving; the pressure of the upper and lower heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.

name Parameters Remarks
Upper/lower mold temperature up to 250°C Free temperature setting
degree of vacuum The highest is not lower than -95KPa adjustable
sealing time 0-99s adjustable
Edge time It is recommended to use 3~4s
Edge thickness 0~0.5mm
edge length 290mm
Sealable battery size Max L280mmxW280mm With air bag, with tabs
Edge width Max.6mm (5mm standard) Customized according to customer needs

Pouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly EquipmentPouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly Equipment

Pouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly EquipmentPouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly EquipmentPouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly EquipmentPouch Cell Vacuum Sealing Machine Pouch Cell Vacuum Sealer Assembly Equipment
