Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting
Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting
Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting
Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting
Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting
Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting
Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting
Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting
Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting
Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting
Specifications
Brand Name :
GELON
Model Number :
GN-S100P
Certification :
CE
Place of Origin :
CHINA
MOQ :
1pc
Price :
USD$1900 / pc
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
500 pc / month
Delivery Time :
25~ 30 days
Packaging Details :
wood case
Standard Cutting die :
athode electrode 56 * 43mm / Anode electrode 58 * 45mm
Cutting size :
Max.L 120*W 80mm
Cutting pressure :
Max.1T (1MPa compressed gas)
Cutting stroke :
12mm
Cutting die life :
Ten thousand times
Cutting burr :
Vertical burr ≤12μm Horizontal burr ≤20μm
Cutting thickness :
Max.0.5mm
Cutting precision :
±0.1mm
Description

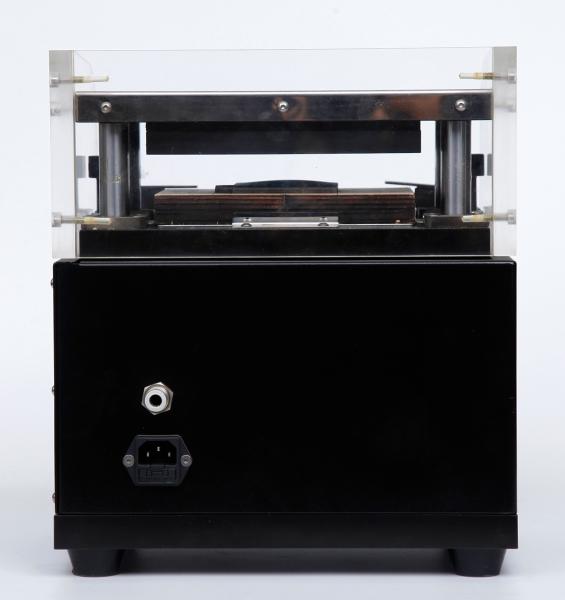

Pneumatic Die Cutter

Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting

Introduction

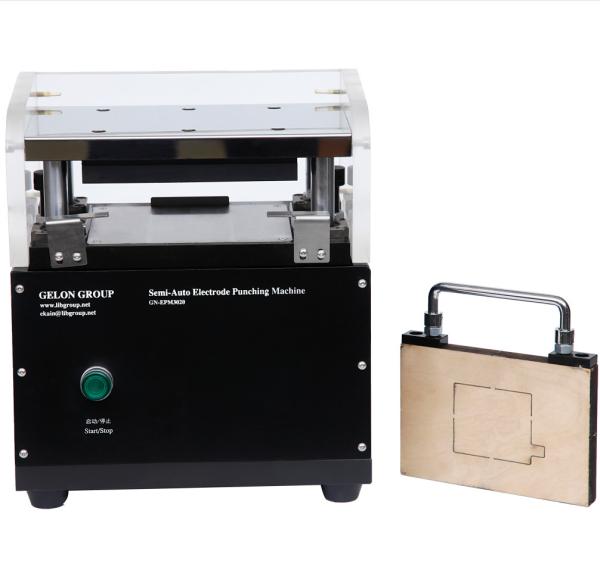

1. Semi-automatic die cutting machine is a device used in cathode and anode electrode die cutting of lithium ion stacking batteries.The equipment uses the pneumatic way to die cut for single electrode. It can be placed in the glove box, and we can provide various shapes of knife mold according to customer requirements to achieve the forming and die cutting of different battery sizes.

Plate electrode feeding, knife template to achieve die cutting, and can be used in the glove box;

Feature

1. Cylinder drive, and the cutting pressure and speed can be adjusted.

2. Die cutting products has small burr, no powder, no indentation and other bad appearance;

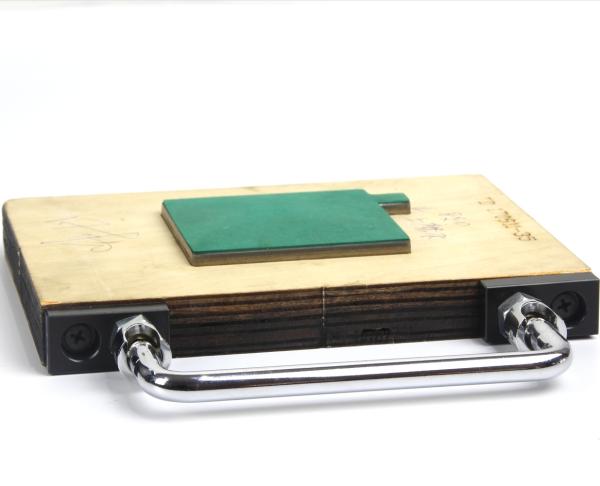

3. The cutting die is made of a drawer-type design to ensure safe operation.

4. The replacement of the cutting die is easy, convenient and fast.

5. A standard set of cathode and anode blade die, can also be made according to customer requirements;

Process Effect

Auto Punching Machine Pouch Cell Puncher Cathode Anode Electrode Die Cutting

Parameters

Name Parameter Remarks
Standard Cutting die Cathode electrode 56 * 43mm / Anode electrode 58 * 45mm It can be customized according to customer request
Cutting size Max.L 120*W 80mm Includes battery tab
Cutting pressure Max.1T (1MPa compressed gas) Recommended adjusting pressure, 500Kg(0.5MPa)
Cutting stroke 12mm Distance between the cutting die and the cutting plate
Cutting die life Ten thousand times
Cutting burr

Vertical burr ≤12μm

Horizontal burr ≤20μm
Cutting thickness Max.0.5mm The foil are made of aluminum / copper
Cutting precision ±0.1mm
Air supply 0.5~0.8MPa Argon, nitrogen gas cylinders, or 0.7MPa compressed air Compressed air in the glove box is not recommended
Power 100W
Equipment, dimensions L300mm*W250mm*H 340mm
Packing dimension About L400*W340*H450mm
Net weight About 34Kg
Gross weight About 43kg
The site to use It can be used in the glove box. Please check whether the glove box space matches the overall size of the equipment
Warranty time One-year warranty, lifetime maintenance
