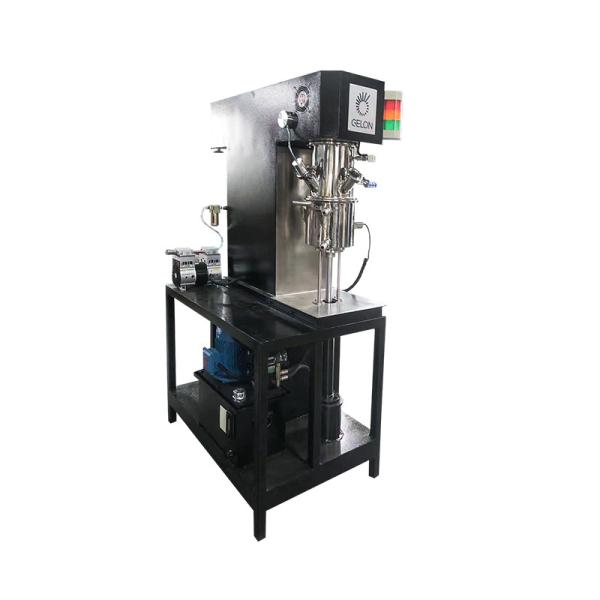

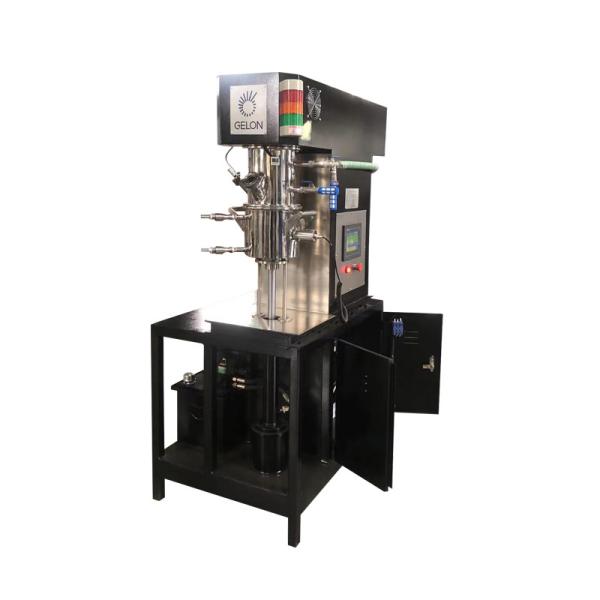

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix
Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix
Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix
Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix
Specifications
Brand Name :
Gelon
Model Number :
GN-PM-5L
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
13000usd - 16000usd/ set |1 set/sets(Min. Order)
Payment Terms :
L/C, D/A, D/P, Western Union, MoneyGram, Western Union
Supply Ability :
1000sets/month
Delivery Time :
15days
Packaging Details :
Standard exported package : Internal anticollision protection, external export wooden box packaging.
Mixer Type :
Planetary
Barrel Volume (L) :
5L
Material Processed :
lithium ion battery
Max. Loading Volume (L) :
1000 L
Weight (KG) :
570 KG
Product Type :
Mixing Machine, Battery slurry mixing
Application :
Liquid, Lithium Ion Battery
Voltage :
380V
Dimension(L*W*H) :
1350*800*1550mm
Power (kW) :
1.85 kW
High speed :
0~8800r/min
Fast shaft :
Double fast shaft with two sets dia 50 dispersion disk
Vacuum Degree :
-0.098MPa
Rotation speed :
0~102r/min
Description

Gelon Manufacture Double Planetary Mixing Machine for Slurry mix

Product Description

  • The main parameters of the equipment:

Lower barrel parts

  • Design total volume: 8L
  • Effective volume: 2.7-5L
  • Inner diameter of container: 240mm
  • Inner depth of container: 180mm
  • Container material: the part in contact with the material 304
  • Temperature regulating jacket form: single-layer jacket on the barrel wall, used for cooling or heating; single-layer jacket on the bottom of the barrel, used for cooling or heating
  • Temperature adjusting jacket interface: G3/8", equipped with quick-opening union, jacket pressure resistance ≤0.4MPa
  • Temperature regulating jacket circulation system: customer-provided, it is recommended that the jacket water inlet temperature is ≤8℃, and the cooling water flow is ＞3.5L/min
  • Discharge form: a 1" downward discharge plunger valve at the bottom of the barrel
  • Design environment temperature: -10～+120°C
  • Movement method: caster movable type
  • List of random wearing parts:

No. Name Specification Material Quantity Remarks
Upper cover sealing rubber ring ΦD×ΦN Silica gel 1 Specifications are matched with corresponding models, according to supplier standards
Sight glass seat sealing ring Silica gel 2 Specifications are matched with corresponding models, according to supplier standards
Filling port gasket Silica gel 1 Specifications are matched with corresponding models, according to supplier standards
High-speed mechanical seal C+SiC 1 Specifications are matched with corresponding models, according to supplier standards
High-speed synchronous belt Rubber 1set Specifications are matched with corresponding models, according to supplier standards
Scraper Teflon 1 Specifications are matched with corresponding models, according to supplier standards
Sight glass Tempered 2pc Specifications are matched with corresponding models, according to supplier standards

Lithium Ion Battery Double Planetary Mixing Machine For Slurry MixLithium Ion Battery Double Planetary Mixing Machine For Slurry Mix

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix

Lithium Ion Battery Double Planetary Mixing Machine For Slurry MixLithium Ion Battery Double Planetary Mixing Machine For Slurry MixLithium Ion Battery Double Planetary Mixing Machine For Slurry MixLithium Ion Battery Double Planetary Mixing Machine For Slurry Mix

Lithium Ion Battery Double Planetary Mixing Machine For Slurry Mix
