Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm
Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm
Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm
Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm
Specifications
Brand Name :
Fable
Model Number :
FUV-007
Place of Origin :
China
MOQ :
1 set
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Alipay
Supply Ability :
100 sets per month
Packaging Details :

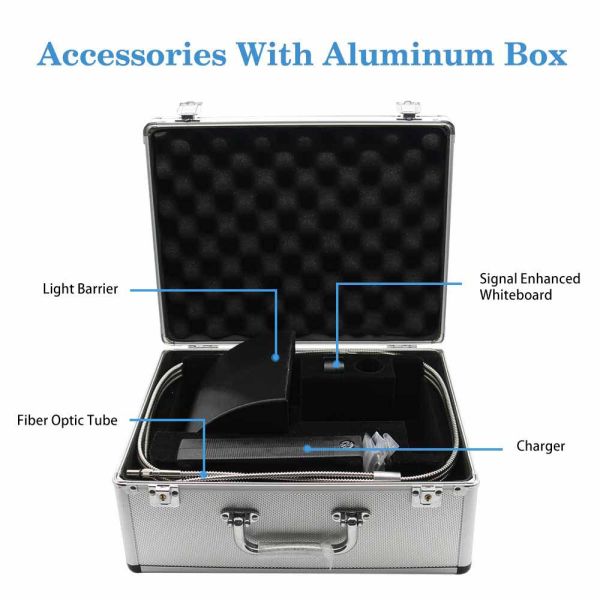

Black Suitcase
Product Name :
UV Vis Optic Fiber Spectrometer
Product Size :
496mmx394mmx185mm
Product Weight :
13.8KG
Wave Length :
220-1000nm
TEC cooling: :
up to -10℃
Warranty :
One year
Description

Fable UV Vis Optic Fiber Spectrometer Jewelry Nondestructive Testing with TEC cooling 220-1000nm

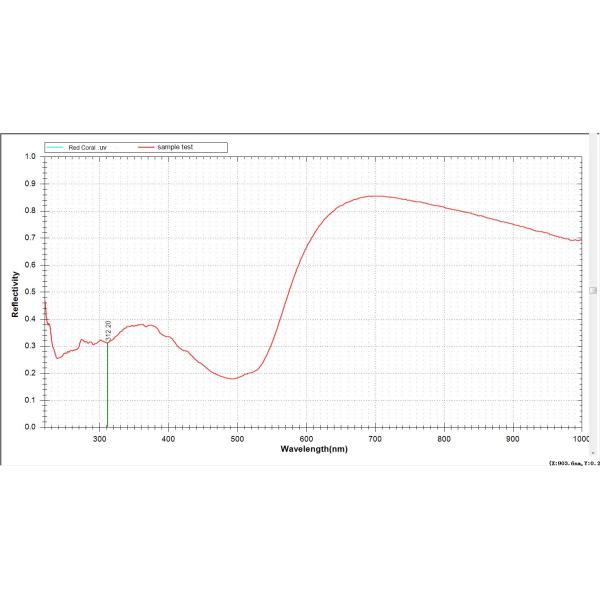

Sepctrometer rapid detect UV visible-near-infrared absorption characteristics of jewelry and jade

1: determine the species, genesis (natural, synthetic, etc.) and optimization treatment characteristics of jewellery and jade materials.

2: It can nondestructively detect various types of jewellery and jade.

3: There are no restrictions on sample shape, size, etc., and no sample preparation is required.

4. It has two Measurement methods: reflection integrating sphere type, and reflection fiber probe type
5. Can automatically capture the phosphorescence spectrum;

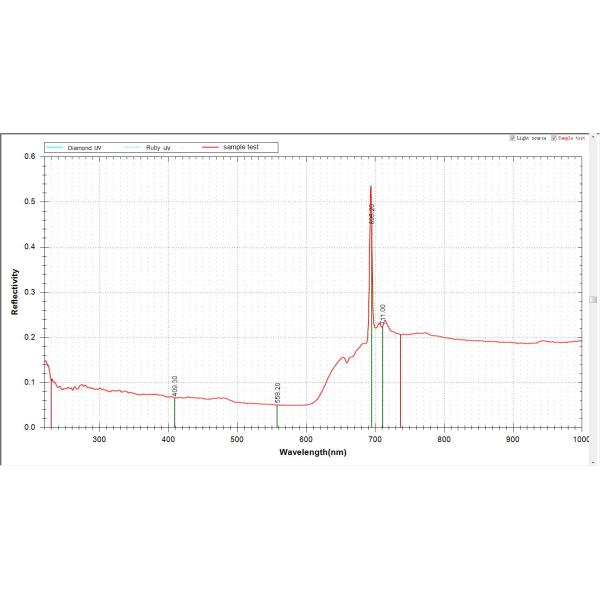

6. Quickly judge a natural diamond by detecting the absorption peak of Type Ia natural diamond at 415nm

Technical Parameter

Model Number: FUV-007
Spectral effective measurement range: 220-1000nm;
Integration time: 1ms-100s;
Signal-to-noise ratio: >1000:1;
Resolution: 1.5nm;
Detector: back-illuminated CCD area array detector,
Number of pixels: 2048×64
With TEC cooling: up to -10℃;
Battery capacity: 15000mAh,can be used continuously for 3 hours when fully charged;
Charger:

INPUT:AC100-240V 50/60Hz,

OUPUT: DC25.2V, 4A;
Dimensions: 496mm×394mm×185mm;
Weight: 13.8kg.
