4KW Software Control Portable Load Bank For Data Center Commissioning Testing
4KW Software Control Portable Load Bank For Data Center Commissioning Testing
4KW Software Control Portable Load Bank For Data Center Commissioning Testing
4KW Software Control Portable Load Bank For Data Center Commissioning Testing
4KW Software Control Portable Load Bank For Data Center Commissioning Testing
4KW Software Control Portable Load Bank For Data Center Commissioning Testing
Specifications
Brand Name :
Fullde
Model Number :
LB-4KW-AC220V-J
Certification :
CE, ISO9001
Place of Origin :
Dongguan,China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100 sets per month
Delivery Time :
20 working days
Packaging Details :
Wooden packaging,Carton packaging.
Application :
Generator,UPS,Battery
Cooling Mode :
Forced air cooling, horizontal inlet air and upwards exhaust cooling
Fan Control Power :
110V/220V,50Hz/60Hz
Load Resolution :
Step:120W
Max Protection Grade :
IP32
Wire Connection :
Load bank input——Copper bar; Control power input——Connector-bar
Description

4KW 220VAC Rack Mount Load Bank for Data Center Commissioning Testing

Introduction:

AC Dummy Load Bank offers the most robust, high-capacity designs in the industry. AC Testing Dummy Load Bank is setting the standard with intelligent operator controls, safety indication layouts, adjustable load step resolution, and lightweight designs. AC Testing Dummy Load Bank is the perfect solution for regularly scheduled maintenance testing and commissioning of mission-critical standby emergency power systems.

Main Features:

1.Designed for use in Ambient Temperature Upto 55 degree;

2. Push buttons for energizing and de-energizing loads with indication;

3. Multiple control mode: (1) manual panel control (2) remote control (3)software control

4. Multiple display function: voltage, current, frequency, power factor, active power, reactive power, apparent power etc;

5. Forced air cooling: industrial heavy duty fan, horizon air intake, upwards outlet, low noise.

Our advantage


(1) Professional load bank direct factory;


(2) Advanced production line with skilled workers;


(3) Adopt International quality standards, to meet high quality requirement;


(4) Good reputation for Reliable Quality & Reasonable price.

Specification
Rating voltage 220VAC
Max Load Power Power:4kW
Load Resolution Step:120W
Power Factor 1
Load Tolerance ±5%
Fan Control Power 110V/220V,50Hz/60Hz
Wire Connection Load bank input——Copper bar
Control power input——Connector-bar
Max Protection Grade IP32
Way of Working Continuous Working
Cooling Forced air cooling, horizontal inlet air and upwards exhaust cooling
Transportation Hoisting
Color RAL7032
Dimensions 485*177*500
Weight 12.5KG
Accessories Switch: ABB, Siemens and Schneider, PLC: Panasonic and Siemens;
Operating Environment Parameter
Ambient Temperature -10℃~+50℃
Relative Humidity ≤95%

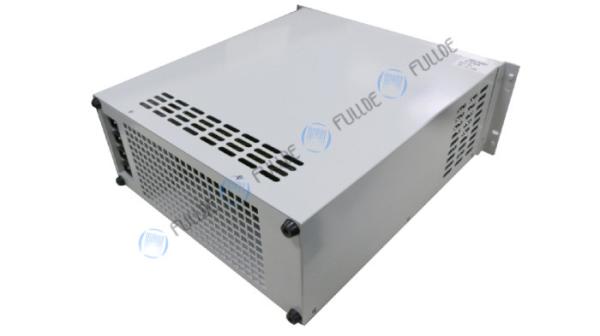

Detailed pictures of the rack mount load bank:

4KW Software Control Portable Load Bank For Data Center Commissioning Testing4KW Software Control Portable Load Bank For Data Center Commissioning Testing
