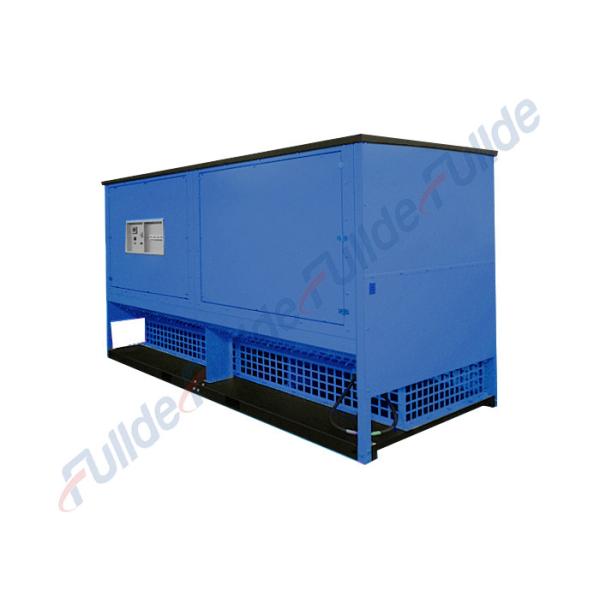

3.3kV 1500kW Medium Voltage Load Bank For Date Center Standby Generator Testing
3.3kV 1500kW Medium Voltage Load Bank For Date Center Standby Generator Testing
3.3kV 1500kW Medium Voltage Load Bank For Date Center Standby Generator Testing
3.3kV 1500kW Medium Voltage Load Bank For Date Center Standby Generator Testing
Specifications
Brand Name :
Fullde
Model Number :
LB-1500KW-3.3KV
Certification :
CE, ISO9001
Place of Origin :
Dongguan,China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
25 working days
Packaging Details :
Packaged by Wooden Case with Soft Protective Material
Relative Humidity :
≤95%
Ambient Temperature :
-10℃~+50℃
Accessories :
Switch: ABB, Siemens and Schneider, PLC: Panasonic and Siemens;
Weight :
3500KG
Dimensions :
4000*2438*2591
Cooling :
Forced air cooling, horizontal inlet air and upwards exhaust cooling
Description

3.3kV 1500kW Medium Voltage Load Bank for Date Center Standby Generator Testing

Introduction of the generator load bank: Power generator intelligent testing system can accurately test the output power and loading capacity of various generator units,test all the electric parameters including dynamic parameters of generator units,and mainly consists of two parts:testing control and load cabinet,which is used in coordination with host computer thus materializing intelligentization and automatization to complete the testing of all electric parameters of generator unit,meanwhile,charts,curves and testing report are produced,and no manual operation is required(intelligently controlled,manual/automatic may be selected),to provide scientific testing means for large power generator units.

Specification
Rating voltage/frequency 3.3KV/60Hz
Max Load Power Apparent Power: 1500kW
Load Resolution step:50KW
Power Factor 1
Load Tolerance ±5%
Fan Control Power 110V/220V,50Hz/60Hz
Wire Connection Load bank input——Copper bar
Control power input——Connector-bar
Max Protection Grade IP56
Way of Working Continuous Working
Cooling Forced air cooling, horizontal inlet air and upwards exhaust cooling
Transportation Hoisting
Color RAL7032
Dimensions 4000*2438*2591
Weight 3500KG
Accessories Switch: ABB, Siemens and Schneider, PLC: Panasonic and Siemens;
Operating Environment Parameter
Ambient Temperature -10℃~+50℃
Relative Humidity ≤95%

FULLDE Electrical is sustaining carry out the 6S

In order to improve the production efficiency of the company and the production safety factor.FULLDE electric continuously on a regular basis to carry out the 6S management examination.Recently, our company are ushered in the new round 6S major inspection. During this activity, production workshop site, material warehouses and equipment inspection field work area were checked deeply and exhaustively.

During the inspection process, Team members checked each production area and office area very careful , Transverse to the edge, Vertical to the end, In all aspects of inspection, Leave no dead Angle, no blind spots. Meanwhile, determine the solution time, standard, responsible to overhaul the hidden trouble, eliminate unnecessary accidents.
