1kw - 1500kw Dummy Medium Voltage Load Bank With Sound - Light Alarm System
1kw - 1500kw Dummy Medium Voltage Load Bank With Sound - Light Alarm System
1kw - 1500kw Dummy Medium Voltage Load Bank With Sound - Light Alarm System
1kw - 1500kw Dummy Medium Voltage Load Bank With Sound - Light Alarm System
Specifications
Brand Name :
Fullde
Model Number :
LB-1500KW-6.9KV
Certification :
CE, ISO9001
Place of Origin :
Dongguan,China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
25 working days
Packaging Details :
Packaged by Wooden Case with Soft Protective Material
Max Load Power :
Apparent Power: 1500kW
Load Resolution :
step:50KW
Rating voltage/frequency :
6.9KV/60Hz
Ambient Temperature :
-10℃~+50℃
Dimensions :
4000*2438*2591
Weight :
3500KG
Description

1kw to 1500kw Resistive Dummy Medium Voltage Load Bank for Generator Testing

Main Functions:

(1) Load Bank Testing: User could load any power within rated power to test the output performance of generator set.
(2) Control Mode: With total load control function,can complete the sudden increase or decrease of load of any percentage(intelligently controlled,manual/automatic can be selected).
(3) Over-heat protection: There will be sound-light alarm when temperature is over safety thresholds.

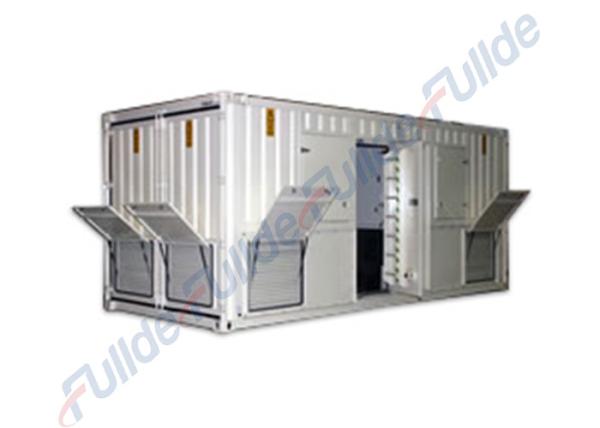

The Advantages of Container load bank:


1. Nice appearance, reasonable structure.
2. Good sealing: be able to work under rain, snow, dust, or any other harsh
environment.
3. The temperature shall be not too high to ensure the power unit operation.

Specification
Rating voltage/frequency 6.9KV/60Hz
Max Load Power Apparent Power: 1500kW
Load Resolution step:50KW
Power Factor 1
Load Tolerance ±5%
Fan Control Power 110V/220V,50Hz/60Hz
Wire Connection Load bank input——Copper bar
Control power input——Connector-bar
Max Protection Grade IP56
Way of Working Continuous Working
Cooling Forced air cooling, horizontal inlet air and upwards exhaust cooling
Transportation Hoisting
Color RAL7032
Dimensions 4000*2438*2591
Weight 3500KG
Accessories Switch: ABB, Siemens and Schneider, PLC: Panasonic and Siemens;
Operating Environment Parameter
Ambient Temperature -10℃~+50℃
Relative Humidity ≤95%
