Stainless Steel Neutral Earthing Resistor With Single - Phase Isolation Switch
Stainless Steel Neutral Earthing Resistor With Single - Phase Isolation Switch
Stainless Steel Neutral Earthing Resistor With Single - Phase Isolation Switch
Stainless Steel Neutral Earthing Resistor With Single - Phase Isolation Switch
Specifications
Brand Name :
Fullde
Model Number :
FD201707069
Certification :
CE, ISO9001
Place of Origin :
Dongguan,China
MOQ :
1 Set/Sets
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000 Set/Sets per Month
Delivery Time :
15 working days
Packaging Details :
Standard export carton or wooden box
Voltage :
10.5kv
current :
44A
resistance :
132Ω
Flow time :
10s
single-chip range :
0.005-11.7Ω
Resistance Element :
304 Stainless Steel
Description

Stainless Steel High Power Adjustable Neutral Grounding Resistor

Product overview and application:


It is suitable for the single-phase earth fault when the generator is running. When the arc is grounded, it will further expand the insulation damage range of the stator winding, resulting in inter-phase or inter-turn short circuit. Usually the generator neutral point with high impedance grounding.

Features of the neutral grouding resistor:


1. the product is made of high quality stainless steel nickel-chromium alloy or non-metallic material, its high
conductivity, high temperature coefficient, the maximum resistance of 1600 ℃ high temperature, good stability.


2. cabinet grounding transformer using dry-type transformers, large capacity, impact resistance.


3. professional protection, to avoid burning the generator core, to reduce the generator stator winding ground damage when the core;

4. can be configured epoxy cast dry ground transformer, zero sequence ct, single-phase isolation switch, resistor on-line monitoring device, heater and temperature and humidity control, etc., can effectively monitor the ground fault current, voltage, and provide switch and alarm contacts.

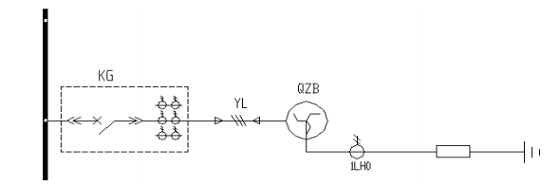

Wiring schematic:

Stainless Steel Neutral Earthing Resistor With Single - Phase Isolation Switch
