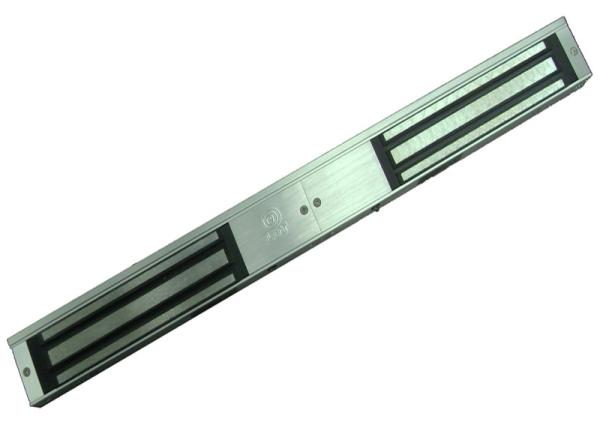

12 / 24VDC Zinc Double Electric Magnetic Lock 1200LBs Holding Force
12 / 24VDC Zinc Double Electric Magnetic Lock 1200LBs Holding Force
Specifications
Brand Name :
GSKA
Model Number :
EM-5120D
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
2000 pcs per month
Delivery Time :
2 weeks
Packaging Details :
Standard box Packing
Holding Force :
1200 LBS x 2
Material for shell :
Anodized Aluminium
Material for magnetic :
Zinc
Material for Armature :
Zinc
Weight :
9KG
Door Status Sensor :
NO/ NC/ COM
Description

Locktronix 12/24VDC Zinc 1200 LBs holding force double Electro magnetic door lock

Product Description

EM-5120D LED 1200Lbs double door electric lock .Suitable for many types of doors including wooden door, glass door , metal door , fireproof door. With lock status signal output ( NO,NC,COM) and LED indiCAT-parts-partsor to show the status of lock.

Dimensions: 532L x 67W x 39H (mm)
Armature Plate: 185L x 63W x 13H (mm)
Holding Force: 500kgs (1200Lbs)
Voltage: 12/24VDC+10%
Current Draw: 12V/420mA, 24V/210mA
Suitable For: Wooden Door, Glass Door, Metal Door, Fireproof Door
Door Status Sensor: (NO/ NC/ COM)
LED IndiCAT-parts-partsion: Green – Door Lock ; Red – Door Unlock
Surface Temp: +20°C
Operating Temp: 10~+55(14-131F)
Suitable Humidity: 0~90% (Non-condensing)
Material For Shell: Anodized Aluminium
Material For Magnetic: Zinc
Material For Armature: Zinc
Weight: 9kgs
Optional Bracket: LBK-5120U , LBK-5120L,LBK-5120Z
