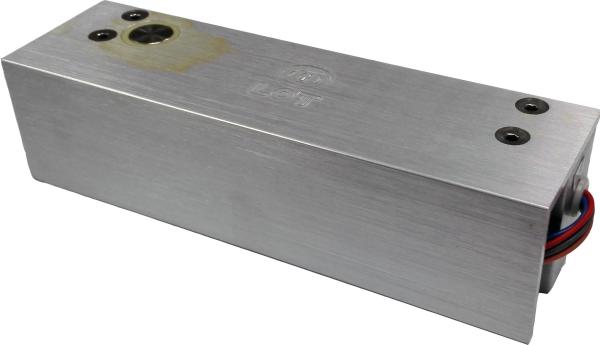

Locktronix 12V Aluminium NO NC Electric Dropbolt 600 LBs Holding Force
Locktronix 12V Aluminium NO NC Electric Dropbolt 600 LBs Holding Force
Locktronix 12V Aluminium NO NC Electric Dropbolt 600 LBs Holding Force
Locktronix 12V Aluminium NO NC Electric Dropbolt 600 LBs Holding Force
Specifications
Brand Name :
GSKA
Model Number :
AGB-232
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
2000 pcs per month
Delivery Time :
2 weeks
Packaging Details :
Standard box Packing
Fail Safe :
lock when energized
Dimensions: :
148.5L x 43W x 39H (mm)
Bolt: :
16 mm DIA, Stainless steel 16 mm throw
Voltage: :
DC 12V
Working Current: :
80mA
Solid Bolt: :
Polishing housing, 600Kg Holding force
Function: :
NC (Fail Safe), NO (Fail Secure)
Description

Locktronix 12V Aluminium 600 LBs holding force NO NC Electric Dropbolt

AGB232 600KG NONC electric dropbolt .Designed for frameless glass doors. Face plate were make by Aluminium and Stainless steel bolt , also with two mode (Fail secure /fail safe) to switch.

Fail Safe: Locked when energized
Dimensions: 148.5L x 43W x 39H (mm)
Bolt: 16 mm DIA, Stainless steel 16 mm throw
Voltage: DC 12V
Working Current: 80mA
Suitable For: Wooden Door, Glass Door, Metal Door
Solid Bolt: Polishing housing, 600Kg Holding force
Function: NC (Fail Safe), NO (Fail Secure)
Relay Timer: 0, 3, 6 sec
Operating Temp: 10~+55(14-131F)
Suitable Humidity: 0~90% (Non-condensing)
Face Plate Material: Aluminium
Weight: 0.9kgs
