1. DSE5110 Deep Sea Control Panel Deep Sea Electronics PLC CE RoHs
3. Model Number :DSE5110
4. Automatic Engine Control Module

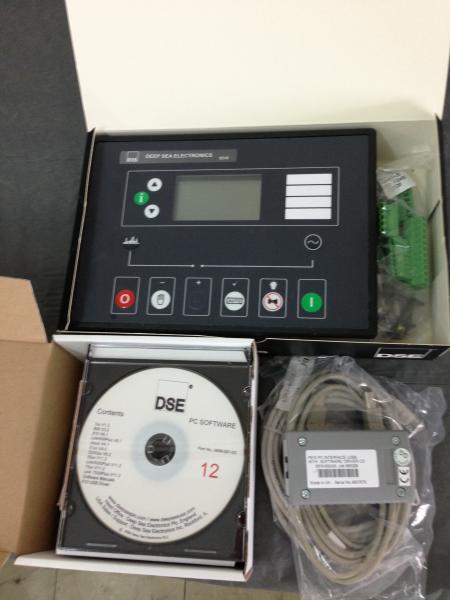

Deep Sea Electronics PLC The Model DSE5110 is an Automatic Engine Control Module which has been

designed to allow the OEM to meet demand for increased?

Capability within the industry.The module has been designed to automatically start and stop the

engine,indiCAT-parts-partsing the operational status and fault conditions,shutting down the engine and indiCAT-parts-partsing the

engine failure by means of a graphical LCD display and a flashing LED on the front panel. Selected

operational timers and alarms can be adjusted by the customer.

Configuration of the module can be carried out manually utilising the front panel editor, or alternatively by

PC,using the 5110 software.Operation of the module is via pushbuttons mounted on the front panel with

STOP, AUTO and MANUAL modes.

A further pushbutton provides an LCD DISPLAY SCROLL function to view the instrumentation.The module

features microprocessor control and provides a comprehensive list of timers and pre-configured equences.

This allows most required specifiCAT-parts-partsions to be achieved.The DSE5110 series modules have been designed

for front panel mounting. The module is fitted into the cut-out with the fixing clips removed.These are then

fitted from the rear.

Connection is via locking plug and socket connectors. The 5110 module provides engine and electrical

metering facilities via the LCD display with the following instrumentation displays, accessed via the SCROLL

push-button.

Protection:

Lubricants to protect lower

Charger fail rechargeable

Emergency generating units down

Generating units of public alarm

Generator over-voltage under-voltage over-current protection

High cooling water temperature protection

Engine overspeed protection

Failure of the engine shutdown

Start the engine failure

Dimensions: 240mm x 172mm x 57mm Panel Cutout: 220mm x 160mm ( 8.7” x 6.3”)
