Mobile 15kva AC Electric Motor Generator DC 400Amp Diesel Electric Welding Unit
Mobile 15kva AC Electric Motor Generator DC 400Amp Diesel Electric Welding Unit
Mobile 15kva AC Electric Motor Generator DC 400Amp Diesel Electric Welding Unit
Mobile 15kva AC Electric Motor Generator DC 400Amp Diesel Electric Welding Unit
Mobile 15kva AC Electric Motor Generator DC 400Amp Diesel Electric Welding Unit
Mobile 15kva AC Electric Motor Generator DC 400Amp Diesel Electric Welding Unit
Specifications
Brand Name :
GSKA
Model Number :
Diesel electric welding unit
CertifiCAT-partsion :
CE,GS,EPA,CARB,CSA
Place of Origin :
China OEM
MOQ :
1-5 pieces
Price :
Negotiable
Payment Terms :
L/C,D/P,D/A, Alipay, West Union, TT. Cash,Paypal
Supply Ability :
500 pieces per Month
Delivery Time :
one weeks on receipt of official sales contract
Packaging Details :
Standard plywood and wood package.the actual package size against goods size and handle requires. Si
Port: :
HongKong or ShenZhen,ShangHai,Dalian as required
Motor Type :
AC Motor
Usage :
pipeline welding,outdoor work with power source
After Warranty Service :
Spare parts
Controller :
SmartGen, Deepsea, etc
Cooling method :
Automatic Transfer Switch
Phase :
1 Phase/3 Phase
Noise :
75dB
Description

Mobile 15kva AC Electric Motor Generator DC 400Amp Diesel Electric Welding Unit

Maintain details:


The generator is mainly composed of stator, rotor and end cover. Brush, machine base and bearing components. The stator is composed of a frame, stator core, wire wrapped windings, and other structural elements that fix these parts. Rotor by rotor core, rotor pole (magnetic choke. Magnetic pole winding), slip ring, (also known as copper ring. Collector ring), fan and rotating shaft and other components. Through bearing, frame and end cover to the generator stator, rotor connected together, can make the rotor spinning in the stator, through access to slip ring must be exciting current, make the rotor, a rotating magnetic field of the stator coil cutting lines of magnetic force to do exercise, thus induced potential, through the terminal lead, in the loop, the current is produced. Because there is a break where the brush is connected with the rotor, the rotor rotates in a certain direction, and alternating current is generated, so alternating current is used in household circuits and other circuits, referred to as alternating current. The output current from our grid is 50 Hertz.

1. Electric Starter ensures easy starting

2. Separate welding range with fine adjustment in each range

3. Great Welding Performance

4. Auxiliary power while welding

5. 500 Amperes output suitable for 1.6 to 8.0 mm Air Carbon Arc Gouging and Stud Welding

6. Adopts advanced inverter soft switch technology, PWM control technology, and negative feedback control technology,enjoys excellent dynamic quality and welding performance within full voltage/current regulation range.

Model diesel welding generator
Welding output
Welding Processes MMA TIG FCAW
Open Circuit Voltage (V) 75 75 75
Current Range (A) 30-500 30-500 30-500
Welding Current (A) 310 350 500 310 350 500 310 350 500
Welding Voltage (V) 32.4 34 36 22.4 24 26 29.5 31.5 33
Duty Cycle 100% 80% 60% 100% 80% 60% 100% 80% 60%
External Characteristic Curve Drop Characteristic Drop Characteristic Flat Characteristic
Generator output
Power 16Kw
Excitation Type AVR Brushless Excitation
Frequency 50Hz
Phase Three Phase Single Phase
Output Voltage/Power AC 400V/16Kw AC 230V/6.9Kw
Engine
type 4 stroke ,direct injection diesel engine
Fuel Diesel
Rated Power 23Kw
Rated Speed 1500 RPM
Low Temperature Pre-heated Start
Warning Type Water Temperature /Oil Pressure/Battery Voltage
Fuel Capacity 50L
Cooling Method Water-cooled
Fuel Consumption 5.0L/hr
Complete appliance

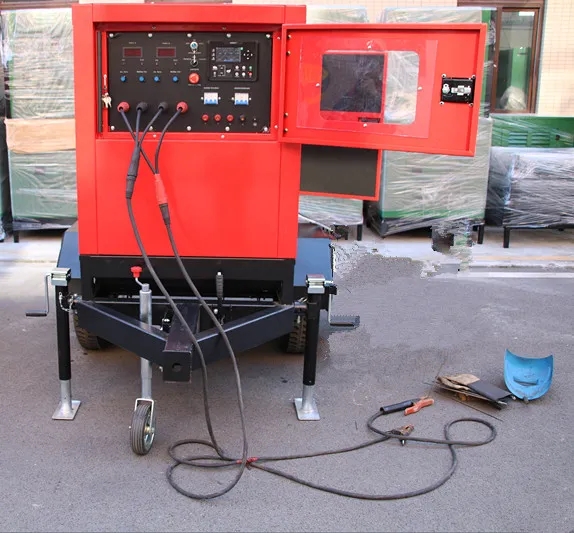

Mobile 15kva AC Electric Motor Generator DC 400Amp Diesel Electric Welding Unit
