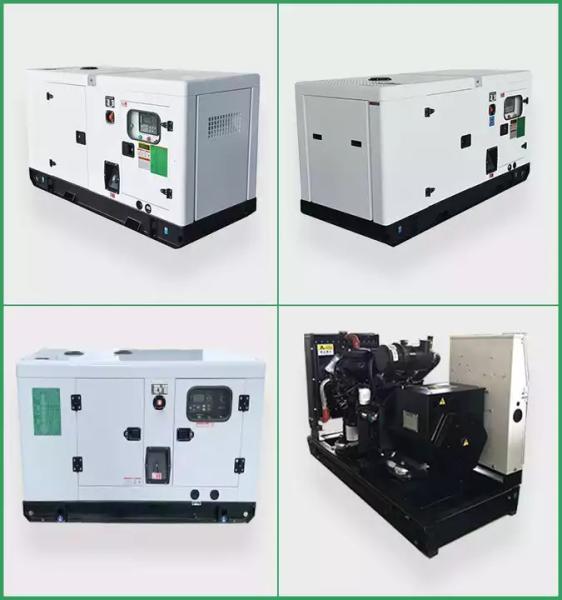

100kw Soundproof Rainproof Silent Genset 110/220V 220/380V 230/400V
100kw Soundproof Rainproof Silent Genset 110/220V 220/380V 230/400V
100kw Soundproof Rainproof Silent Genset 110/220V 220/380V 230/400V
100kw Soundproof Rainproof Silent Genset 110/220V 220/380V 230/400V
Specifications
Brand Name :
GSKA
Model Number :
Genset Diesel Generator
CertifiCAT-partsion :
ISO9001
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
T/T L/C, 30% deposit,70% before delivery
Supply Ability :
100 units/ Per month
Delivery Time :
30 days
Packaging Details :
Open type
Port: :
HongKong or ShenZhen,ShangHai,Dalian as required
Rated Voltage :
110/220V、220/380V、230/400V
Speed :
1500RPM, 1800RPM
Weight :
1603KGS
Color :
Customers' Request
Alternator Model :
Stamford or Leroy Somer
Coolant Volume (L) :
21.0
Starting Method :
12V DC electrical start
Genset type :
Super Silent Soundproof Canopy
Description

100kw Super Silent Soundproof And Rainproof Genset 110/220V,220/380V,230/400V

parameter:


Manufacturers provide detailed installation guidelines to ensure proper functionality, reliability and low maintenance costs. When purchasing a generator online, make sure it comes with installation instructions and a product description. The guide covers the following:


Size and Type selection - Typical load of electrical equipment, expected load of appliCAT-parts-partsion


Electrical Factor - Peak load with stability, allowed appliCAT-parts-partsion


Cooling - Engine cooling during power generation


Ventilation - Allowing airflow during cooling (design)


Fuel storage - How long the generator runs at a specific rate of utilization


Noise-db levels for specific models


Exhaust volume - ppm (parts per million) of certain elements, considering the environment and the surrounding environment of the generator


Start system - key start, pull start, button start, etc

Engine Data:

Manufacturer / Model:

DCEC Cummins 6CTA8.3-G2, 4-cycle

Air Intake System:

Turbo, Water/Air Cooling

Fuel System:

PB/W type fuel pump

Cylinder Arrangement:

6 in line

Displacement:

8.3L

Bore and Stroke:

114*135(mm)

Compression Ratio:

17:1

Rated RPM:

1500rpm

Max. Standby Power at Rated RPM:

180KW/244HP

Governor Type:

Electronic

Exhaust System

Exhaust Gas Flow:

34.7m3/min

Exhaust Temperature:

570℃

Max Back Pressure:

10kPa

Air Intake System

Max Intake Restriction:

6kPa

Burning Capacity:

12.4m3/min

Air Flow:

238m3/min

Fuel System

100%( Prime Power) Load:

215 g/Kw.h

75%(Prime Power) Load:

211 g/Kw.h

50%(Prime Power) Load::

216 g/Kw.h

100%( Prime Power) Load:

39.7L /h

Oil System

Total Oil Capacity:

23.8L

Oil Consumption:

≤4g/kwh

Engine Oil Tank Capacity:

18.9L

Oil Pressure at Rated RPM:

276-414kPa

Cooling System

Total Coolant Capacity:

34L

Thermostat:

82-95℃

Max Water Temperature:

104℃

Alternator Data

Number of Phase:

3

Connecting Type:

3 Phase and 4 Wires, “Y” type connecting

Number of Bearing:

1

Power Factor:

0.8

Protection Grade:

IP23

Altitude:

≤1000m

Exciter Type:

Brushless, self-exciting

Insulation Class, Temperature Rise:

H/H

Telephone Influence Factor (TIF):

＜50

THF:

＜2%

Voltage Regulation, Steady State:

≤±1%

Alternator Capacity:

182KVA

Alternator Efficiencies:

92.4%

Air Cooling Flow:

0.514m3/s
