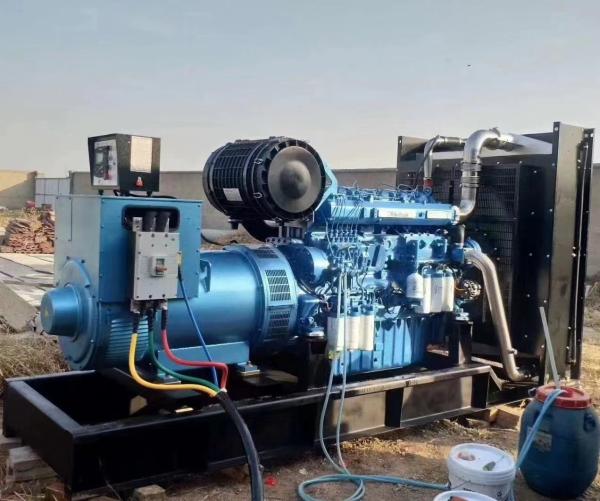

220V/380V/400V/415V/440V Weichai Diesel Generator Set Low Speed Engine For Heavy Duty And Demanding
220V/380V/400V/415V/440V Weichai Diesel Generator Set Low Speed Engine For Heavy Duty And Demanding
Specifications
Brand Name :
Kangbo Energy
Model Number :
Weichai
Place of Origin :
China
MOQ :
1 set
Price :
Negotiate
Packaging Details :
Wooden case
Delivery Time :
2-15work days
Payment Terms :
T/T
Noise Level :
≤75dB(A)@7m
Starting Method :
Electric Start
Cylinder Number :
2-16
Engine Type :
Water-cooled, Four-stroke, Direct Injection
Model :
Generator Set
Power Output :
30kW-1000kW
Rated Voltage :
220V/380V/400V/415V/440V
Frequency :
50Hz/60Hz
Description

Product Description:

Revolutionary Low-Speed Engine

This breakthrough design has completely revolutionized the market demand for low-speed engines. The unparalleled power of this engine allows for multiple injections, a rail pressure of up to 220MPa, and an ultra-small spray hole design which maximizes fuel atomization. These features lead to a soaring combustion efficiency and impressive power output.

The Reliable Engine

This engine boasts a grid structure cylinder block, end-ink cast iron body and cylinder head, high-strength alloy steel crankshaft, and high-pressure ratio supercharger and high-efficiency heat exchange intercooler, which ensure the engine can run stably even under high-intensity operations.

Economical and Environmentally Friendly Engine

This engine is designed to be economical in terms of fuel consumption, with levels as low as 185g/kWh, making it both energy efficient and environmentally friendly. Our engine series easily meets non-road stage III and higher standards, leading to a reduction in harmful gas emissions.

Highly Adaptable Engine

This powerful engine is highly adaptable to different environments. It functions optimally at high altitudes and in extremely cold environments of -41 + 2℃. Thus, it is an ideal choice for use in plateau areas.

The NVH Performance of the Engine

Our engine has excellent NVH performance, with sound levels 3dB (A) lower than that of international first-class brands. The engine operates quietly and stably. The engine also adopts a three-stage fuel filter with standard water removal and safe filter, which has super oil adaptability and requires only a filter element replacement every 500 hours.

The Engine's Special Features

This amazing engine has a special desert filter with a coarse filtration efficiency of up to 93%. This filter extends the air filter maintenance cycle while ensuring efficient repair and maintenance.

Features:

  • Product Name: Weichai generator set
  • Cylinder Number: 2-16
  • Engine Type: Water-cooled, Four-stroke, Direct Injection
  • Cooling System: Water-cooled
  • Rated Voltage: 220V/380V/400V/415V/440V
  • Starting Method: Electric Start
  • Low speed engine
  • Fuel consumption can be as low as 185g/kWh
  • Low speed engine

Technical Parameters:

Technical Parameter Description
Engine Type Water-cooled, Four-stroke, Direct Injection
Power Output 30kW-1000kW
Noise Level ≤75dB(A)@7m
Fuel Type Diesel
Rated Voltage 220V/380V/400V/415V/440V
Cooling System Water-cooled
Cylinder Number 2-16
Speed 1500rpm/1800rpm
Warranty 1 Year Or 1000 Running Hours, Whichever Comes First
Frequency 50Hz/60Hz

Rail pressure up to 220MPa, High reliability

Applications:

Weichai - A Leading Global Engine Manufacturer

Weichai is a well-established global engine manufacturer that provides a vast range of engine products. The engines offered by Weichai have an impressive displacement range of 2.3L to 87.5L, with an exceptional power range of 18kW to 3600kW. These powerful engines have contributed to the growth and development of numerous industries worldwide.

Engine Development

Weichai puts great care and attention to detail into designing and developing their engines. Each engine is a masterpiece, meticulously designed to address the market's diverse needs. These engines have large displacements and produce high power output, making them perfect for heavy-load conditions such as towing heavy equipment or operating large machinery.

Fuel Efficiency

Weichai engines are also highly fuel efficient. These engines consume the least amount of fuel while outputting the strongest power, saving users a considerable amount on operating costs. This fuel efficiency makes Weichai engines ideal for industries with high fuel consumption, such as transportation and logistics.

Reliability

Weichai engines are renowned for their reliability. These engines are built solidly to withstand harsh environmental conditions, making them suitable for use in diverse industries, including construction, marine, and agriculture. With Weichai engines, users can rely on their long-lasting performance.

Support and Services:

Packing and Shipping:

The Weichai generator set will be packed in a sturdy wooden case to ensure safe transportation. The machine will be secured with foam padding and straps to prevent damage during transit. The package will also include a user manual and a warranty certificate.

Shipping:

The Weichai generator set will be shipped through a reputable carrier, such as FedEx or DHL. The shipping cost will depend on the destination and the weight of the package. We will provide the customer with a tracking number so they can track the shipment. Delivery times may vary depending on the location and any customs clearance procedures.

Weichai Power-T2 Emission Series Generator Sets(WPT2)
机组型号
Snt typo		 发动机型号
Engine model		 发动
Engine
常用(KW
Prmay		 机功率
power
备用0KW)
Seandby		 缸数 缸径"行程
Number Bore stroke rabo
of vat (mm)		 排量
Displacement
仙		 燃油消耗率
uel consumpbon
(kw.h)		 机组尺寸
Overall size
LxWxH(mm)		 机组重量
Weigh
(kg		 排放标准
Emission
standards
HY-20 WP2.3D25E200 23 25 4 89*92 2.3 224 1650*720*1200 700 T2
HY-30 WP2.3D33E200 30 33 4 89*92 2.3 212 1650*720*1200 700 T2
HY-30 WP2.3D40E200 36 40 4 89*92 2.3 216 1650*720*1200 700 T2
HY-40 WP2.3D48E200 44 48 4 89*92 2.3 220 1650*720*1200 700 T2
HY-50 WP4.1D66E200 60 66 4 105*118 4.087 235 1700*720*1200 800 T2
HY-64 WP4.1D80E200 72 80 4 105*118 4.087 230 1700*720*1200 800 T2
HY-80 WP4.1D100E200 90 100 4 105°118 6.75 210 2250*800*1300 950 T2
HY-120 WP6D152E200 138 152 6 105°130 6.75 210 2250°800*1300 1250 T2
HY-150 WP6D167E200 152 167 6 105*130 6.75 210 2250*800*1300 1250 T2
HY-150 WP10D200E200 182 200 6 126*130 9.726 210 2400*970*1500 1600 T2
HY-200 WP10D238E200 216 238 6 126*130 9.726 210 2400*970*1500 1700 T2
HY-200 WP10D264E200 240 264 6 126*130 9.726 210 2400*970'1500 230 T2
HY-250 WP10D320E200 291 320 6 126*130 9.726 210 2400*970*1500 1800 T2
HY-300 WP13D385E200 350 385 6 127*165 12.54 209 2900*1200*1750 .100 T2
HY-350 WP13D405E200 405 6 127*165 12.54 209 2900*1200*1750 2800 T2
HY-450 6M33D572E200 520 572 6 150*185 19.6 210 3500*1250*1950 4000 T2
HY-500 6M33D633E200 575 633 6 150*185 19.6 210 3500*1250*1950 4200 T2
HY-550 6M33D670E200 610 670 6 150*185 19.6 210 3500*1250*1950 4600 T2
HY-650 12M26D792E200 720 792 12 150*150 31.8 208 4200*1400*2000 6500 T2
HY-750 12M26D902E200 820 902 12 150*150 31.8 208 4200*1400*2000 6800 T2
HY-800 12M26D968E200 880 968 12 150*150 31.8 208 4200*1400*2000 7200 T2
HY-900 12M33D1108E200 1007 1108 12 150*185 39.2 208 4500*1400*2000 8000 T2
HY-1000 12M33D1210E200 1100 1210 12 150*185 39.2 208 4500*1400*2000 8500 T2
HY-1100 12M33D1320E200 1200 1320 12 150*185 39.2 208 4500*1400*2000 9000 T2
由于机型不断更新,以上资料仅为选型参考,不作为最终交货资料,本公司保留最终修改权恕不另行通知.
