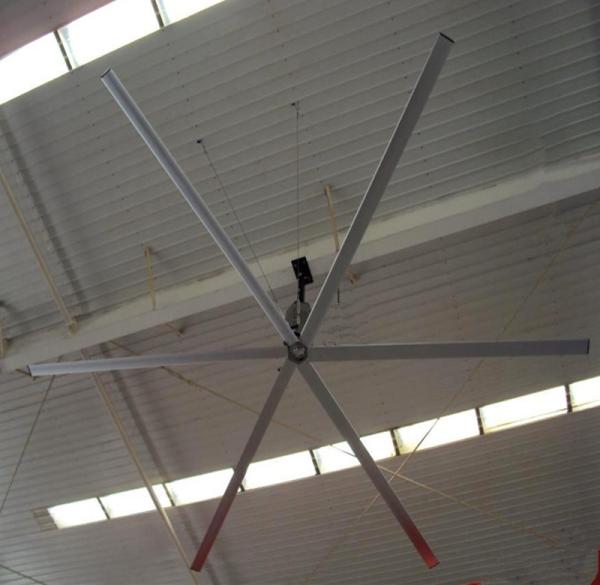

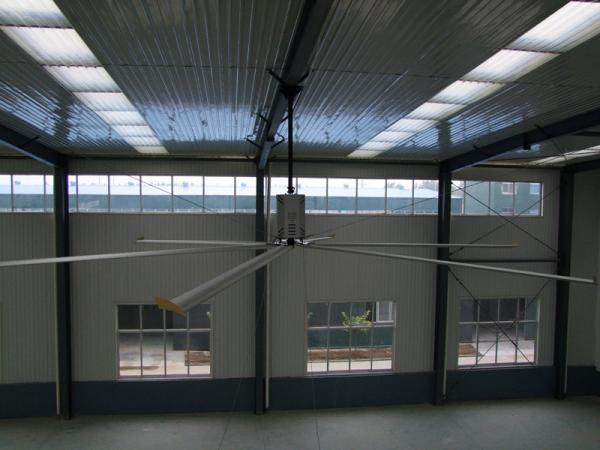

24feet Large HVLS big ass Industrial Ceiling Fan For Warehouse Nord motor 1.5kw
24feet Large HVLS big ass Industrial Ceiling Fan For Warehouse Nord motor 1.5kw
24feet Large HVLS big ass Industrial Ceiling Fan For Warehouse Nord motor 1.5kw
24feet Large HVLS big ass Industrial Ceiling Fan For Warehouse Nord motor 1.5kw
24feet Large HVLS big ass Industrial Ceiling Fan For Warehouse Nord motor 1.5kw
24feet Large HVLS big ass Industrial Ceiling Fan For Warehouse Nord motor 1.5kw
Specifications
Place of Origin :
china
Brand Name :
Genor
Model Number :
GFAN
Certification :
CE,CCC,CSA
Product name :
Warehouse Large ceiling fan
amount of the blade :
6
Air Volume :
40,000 - 363,000 CFM
Air Speed :
2-3m/s
Packaging Details :
Packed in standard seaworthy packing such as Wooden case / Plywood case etc.
Delivery Time :
within 10 working days
Payment Terms :
T/T,L/C, Western Union, MoneyGram
Supply Ability :
100 Set/Sets per Month
MOQ :
1 Set
Price :
Negotiable
Motor brand :
Germany Nord
Motor power :
1.5kw
Voltage :
220V/ 380V / 440V
Frequency :
50hz or 60Hz
Description

24feet Large HVLS big ass Industrial Ceiling Fan For Warehouse Nord motor 1.5kw

the industrial ceiling fan is a new solution of Energy Saving to solve ventilation,
cooling and dehumidification in large indoor place.

It is High Air Volume and Low Rotating Speed

From the center along the blades, blade's width and thickness gradually are narrowed and thin, in accordance with the modern aerodynamical science, the whole blades drive more and even airflow downward, no empty zone in center area.

The streamline design of the (windward side) cross-sectional of the blade decreases the airflow resistance.

Spire of the blade tilts up 3 degrees than the root part, conical air flow instead of cylinder one can directly cover a larger area and it makes airflows much more similar to natural intermittent wind.

For our super ceiling fan , The powerful blades with aerodynamic design move much more indoor air,keeping the surface of the goods dry in wet season.

Model Diameter Max Speed Covering Spacing Air Volume (CFM) Moter Power Weight
GFAN25 2500mm (8 FT) 129rpm 200m2 40000 1.1kkw 70kg
GFAN31 3100mm (10FT) 114rpm 350m2 74000 1.1kw 75kw
GFAN33 3700mm (12FT) 95rpm 500m2 102000 85kg
GFAN43 4300mm (14FT) 83rpm 600m2 114000 110kg
GFAN49 4900mm (16FT) 75rpm 900m2 193000 1.5kw 120kg
GFAN61 6100mm (20FT) 67rpm 1200m2 292000 125kg
GFAN73 7300mm (24FT) 53rpm 1500m2 363000 130kg

Video Display :

24feet Large HVLS big ass Industrial Ceiling Fan For Warehouse Nord motor 1.5kw24feet Large HVLS big ass Industrial Ceiling Fan For Warehouse Nord motor 1.5kw
