Silent QSZ13 - G3 Engine 500kva Cummins Genset Diesel Generator power station synchronous
Silent QSZ13 - G3 Engine 500kva Cummins Genset Diesel Generator power station synchronous
Silent QSZ13 - G3 Engine 500kva Cummins Genset Diesel Generator power station synchronous
Silent QSZ13 - G3 Engine 500kva Cummins Genset Diesel Generator power station synchronous
Silent QSZ13 - G3 Engine 500kva Cummins Genset Diesel Generator power station synchronous
Silent QSZ13 - G3 Engine 500kva Cummins Genset Diesel Generator power station synchronous
Specifications
Place of Origin :
China
Brand Name :
Cummins
Certification :
ISO9001:2008, CE
Model Number :
GNRC500
Product name :
500kva Cummins diesel generator
Engine brand :
Cummins
Alternator :
Stamford, Leroy somer ,Marathon
Prime Power :
500kva
Rated RPM :
1500rpm or 1800rpm
Frequency :
50Hz or 60Hz
Price :
Negotiable
MOQ :
1 set
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
200 set / month
Delivery Time :
within 15 days
Packaging Details :
Plywood package
Description

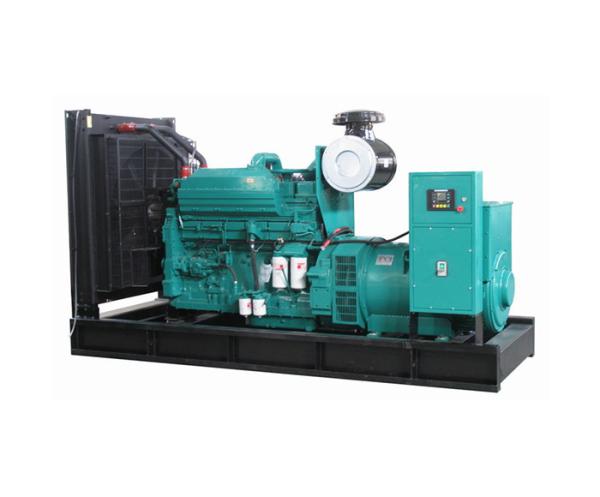

Silent QSZ13 - G3 Engine 500kva Cummins Genset Diesel Generator power station synchronous

1. Genuine Cummins industrial diesel engine
2. Radiator 50°C max, fans are driven by belt, with safety guard
3. Genuine stamford. Leroy somer, marathonm, engga alternator
4. Choice of manual/auto and AMF control panels and protection systems
5. Digital auto-start panel
6. Anti Vibration Suspension Absorber
7. Dry type air filter, fuel filter, oil filter
8. 10-hour operation base tank

specification of Genset 500kva

1.Main technical data of gensets
1.1ModelGNRC500
1.2Prime power500kva
1.3Prime voltage254V/440V
1.4Speed1800 rpm
1.5Weight3950kg
1.6Overall dimension3150×1000×2150mm (just for reference)
2.Main technical data of engine
Cummins engine, 4 stroke. DC start. Come with sea water pump, heater exchanger and expansion water tank, open-cycle cooling.
2.1Brand
2.2ModelQSZ13-G3
2.3Prime power463KW
2.4Governor typeElectronic
2.5Configuration4 cycle , 6 cylinder in line
2.6Cooling methodBy heater exchanger
2.7Bore/Stroke159×159 mm
2.8Displacement19.0L
2.9Starting methodElectric
2.10Fuel consumption203g/kw.h
3. Main technical data of alternator
Alternator is selected the new type brushless alternator designed by US Marathon Electric, which has a unique design, advanced structure, small size, light weight, excellent performance, reliable running and easy-to-use operation.
3.1BrandChina Stamford
3.3Prime power500kva
3.4ConfigurationBrushless , self-exciting
3.5Prime voltage254V/440V
3.6Frequency60 HZ
3.7Power factor0.8(lagging)
3.8Phase/wire3 phase 4 wires
3.9IsolationH


control plane

Controller Brand: Deep Sea / Smartgen (Digital and intelligent)
LED Screen and touch Buttons’
Main Functions,
1- Display loading power, voltages, currencies, frequency, speed, temperatures, oil pressure, running time etc.
2- Warning when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc.
3- Shut down when low or high voltage, low or high frequency, over current, over or low speed, low or over battery voltage etc

Silent QSZ13 - G3 Engine 500kva Cummins Genset Diesel Generator power station synchronous
Silent QSZ13 - G3 Engine 500kva Cummins Genset Diesel Generator power station synchronous
