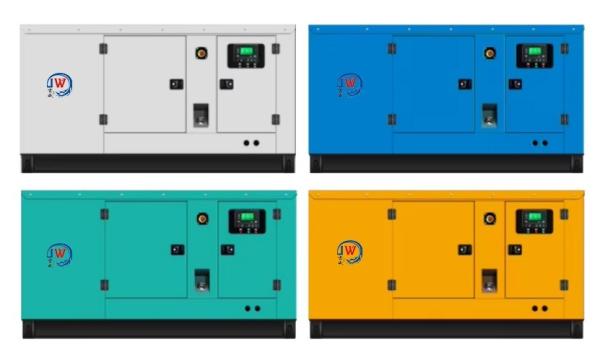

150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
Specifications
Place of Origin :
China
Brand Name :
JIWEI
Model Number :
WP7
Price :
Negotiabce
Certification :
CE
MOQ :
1
Payment Terms :
T/T
Rated Voltage :
230V, 400V
Rated Current :
270A-324A
Speed :
1500RPM, 1800RPM
Frequency :
50/60hz
Starting system :
12V DC Electric Start
Type :
Container Type, Open Frame, Mobile Type
Cooling System Type :
Water Cooling System
Warranty :
Other
Rated power :
150kw 187.5kva 180kw 225kva 200kw 250kva
Engine :
WP7
Product name :
150kw 187.5kva 180kw 225kva 200kw 250kva Weichai diesel generator set
Color :
customizable
Description

150kw 187.5kva 180kw 225kva 200kw 250kva Weichai Generator Diesel Generator Set

Overview

Product characteristics

● Excellent performance: wide range of uses, stable and reliable performance, high cost performance.

High efficiency and energy saving: Using high efficiency fuel injection technology and advanced turbocharging mechanism, high combustion efficiency and high energy utilization efficiency.

● Environmental protection and low noise: in line with international environmental standards, low emission level, the use of noise mitigation technology, so that the noise control in a low range.

● Advanced design: integrated crankshaft box structure and modular design technology, light weight, small size, high efficiency, low fuel consumption.

● Easy maintenance: compact structure, easy operation, flexible maintenance, high degree of automation, can adjust the output voltage and frequency according to load changes, and can achieve remote control.

Application field

● Industrial field: to meet the power needs of manufacturing, metallurgy, electronics, machinery and other industrial places of different scales.

● Commercial field: suitable for hotels, supermarkets, entertainment venues and other commercial buildings requiring stable electricity support.

● Energy field: can be used in oil fields, mines, wind power, solar energy and other energy resources development and utilization.

● Transportation: It can be used as an emergency backup power supply for airports, stations, subways and other transportation places to ensure the safety of traffic operation.

Land Based Genset-JW-WP185
Gen-set specifications
Model JW-WP185
Standby Rating kVA/kWe 206/165
Prime Rating kVAkWe 187.5/150
Voltage V 400/230
Frequency Hz 50
Power Factor 0.8(lagging)
No.of Phases 3
Sound@1m(dB · (A)) Open≤105 dB(A);Silence ≤85 dB(A)
Ambient temp(℃) -10~45
Gen-set regulation class ISO8528-5 G2
Steady-state voltage deviation ≤±2.5%
Transient voltage deviation
(100%sudden power decrease/increase)		 ≤+25%;≤-20%
Steady-state frequenc band ≤1.5%
Transient frequency deviation from rated frequency
(100%sudden power decrease/increase)		 ≤+12%;≤-10%
Standard Features
◆ ECU ◆DC24 Electric starter ◆JW-WHC6120CAN
◆Closed water-cooled ◆ P23 ◆H type insulation
◆Air filter ◆ Muffler ◆Circuit Breaker
◆Startingbatteries ◆ with connective wires ◆ Radiator
◆Oil Drain Valve ◆Forklift Groove ◆Shock Absorber
◆Color Weichai blue(B,F)/beige canopy and black chassis(L)
◆Packaging packing case(B,F)
Options
OVoltage380V/415V OVoltage 440V/480V OAutomatic Parallel system
◇Single Voltage 220V/230V OAutomatic Transfer Switch OAlternator heater
◇Engine Heater(water) ◇Engine Heater(air inlet)
◇External fuel tank(1000L/1500L) ◇PMG/AREP
For detailed parameters, please consult me.
We have cooperation with worldwide famous brands. For more specification,please contact us.
Our Advantages
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
150kw 187.5kva Weichai Genset 180kw 225kva 324A 1800 Rpm Diesel Generator
Our OEM Partners
are from different brands. With our customized solutions consistently delivering satisfaction ,we have won an esteemed reputation.
FAQ
1.Q: What is your MOQ of this item?
A:1 Sets.
2.Q: What is the lead time?
A:7 working days after received the 30%T/T deposit.
3.Q: Is it all right to make customer's own brand name?
A:We can be your OEM manufacture with your authorization of brand.
4.Q: Where is your Loading Port?
A:Shanghai or others.
5.Q: What are your payment terms?
A:30% TT as deposit,70% TT before Shipment.
6.Q: What is your company's available production capacity?
A:100 Sets per month.
7.Q:What's the warranty time of diesel generators?
A:12 months or 1000 working hours, whichever comes first.

Why choose Jiwei to buy a generator set:

First, environmental protection and fuel saving: The advantages of gasoline generator include: optimized performance, ‌ flexible control, ‌ reduce NOx emission, ‌ high precision control, low vibration, low noise, low maintenance cost; ‌
Second,Delivery Guarantee: 1.fast delivery time: 1-5 days after receiving the deposit, except for special models; 2.Jiwei Company has been established for 20 years, with rich pre-sales and after-sales service capabilities, strong supply capabilities, stable supplier resources and rich logistics resources;
Third, strict quality inspection and testing procedures: 1,.each generator set has to go through a comprehensive test program, including 50% load, 75% load, 100% load, 110% load and all control and alarm, safety shutdown function inspection and certification.
Fourth, service guarantee 1.provide free technical support, drawing design; 2.warranty time :2 years or 2000 hours to the first arrival (delivery starts to calculate the time); 3.service response time: within 30 minutes (telephone response); 4.spare parts supply: common repair, maintenance spare parts supply (shipped in China); 5.warranty address: global warranty; Fifth,Customized Services: can be more customized products and LOGO according to your needs;
Sixth,Confidentiality we can sign quality assurance and confidentiality agreements with you, so that our cooperation is more stable;
