CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic
CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic
Specifications
Product Name :
Genuo CNC Mechanical GN-T30 Series Turret Punch Press
Features :
Holistic welding structure,Stress relief from tempering treatment,Strong rigidity and high tonnage for stable accuracy,Extended service life,Advanced and reliable mechanical punching system,Automatic selection of stroke for materials with different plate t
Place of Origin :
China
Brand Name :
genuo
MOQ :
1
Price :
negotiable
Packaging Details :
carton box
Payment Terms :
L/C, T/T, D/P, D/A
Description

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic

Standard Equipment Optional Equipment
★ O-type welded rigid integral frame ☆ FAUNC or Siemens CNC Control
★ GENUO CNC Control and servo system ☆ 16 or 32 full-automatic indexing stations
★ 24 Full-automatic indexing stations ☆ Clamp Stripping Protection
★ Brush and ball mixed worktable ☆ Scrap Collection Device
★ Feeding system with high-precision ☆ Automatic Loading and Unloading
★ Precision wear-resistant turret and tools ☆ Special thick turrent tooling
★ Floatable Pneumatic Clamps ☆ Large seamless worktable
★ Bearing,timing belt,drag chain from DE ☆ Peripheral light curtain protective fence
★ Schneider electrical parts from FR ☆ Vacuum waste suction device
★ Automatic central lubrication system ☆ Optional customized colors


Standard Configuration

Genuo Brand Turret Punch Press has equipped with 24 station turntable and 2 rotating die positions

Equipped with automatic lubrication system, sheet deformation monitoring device.

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic

Configuration Details

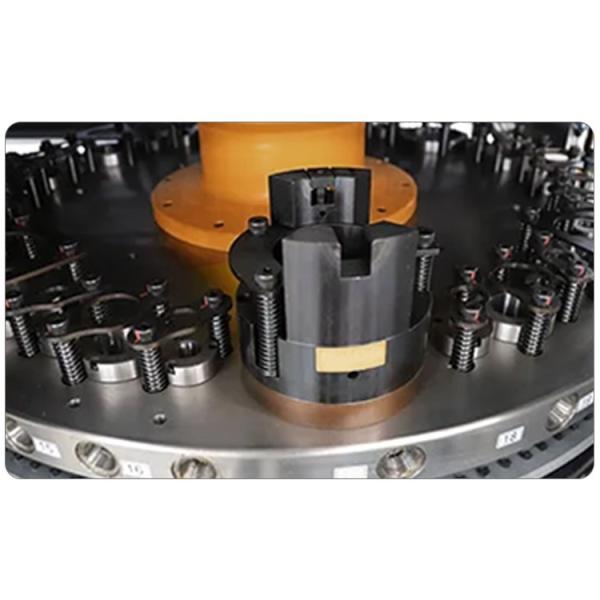

Excellent Turret

The standard 24 station inlaid turret

ensures the coaxiality of the die, the

positioning index of the side hole

and the accuracy of the die hole on

the rotary table punch, increases

the length of the tool guide,

prolongs the service life of the die

and reduces the maintenance cost.

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic

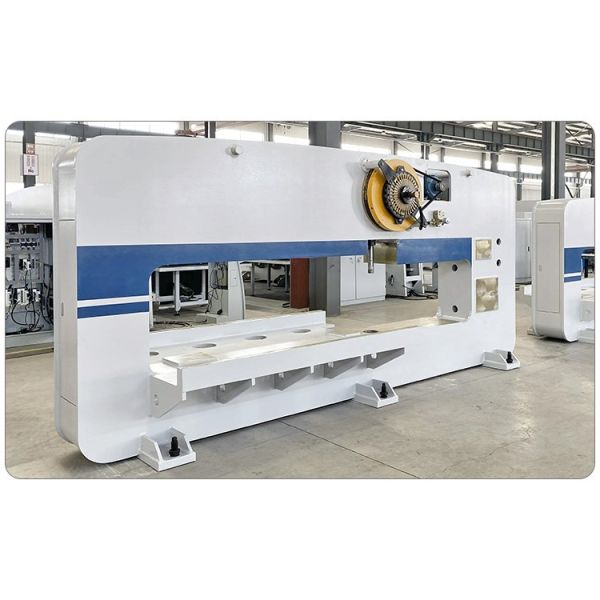

Machine Frame

Integral welded frame structure,

dedicated to turret punch, tempering

treatment to reduce stress.

It can provide higher parts accuracy,

reduce tool wear and noise, improve

durability, ensure stable accuracy,

extend service life.

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic

Automatic Index Station

The automatic dividing station adopts

the unique worm gear structure to

ensure the accuracy of positive and

negative two-way, and can rotate the

material at 360° Angle, which greatly

improves the flexibility and efficiency

of machine processing.

(Optional configuration)

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic

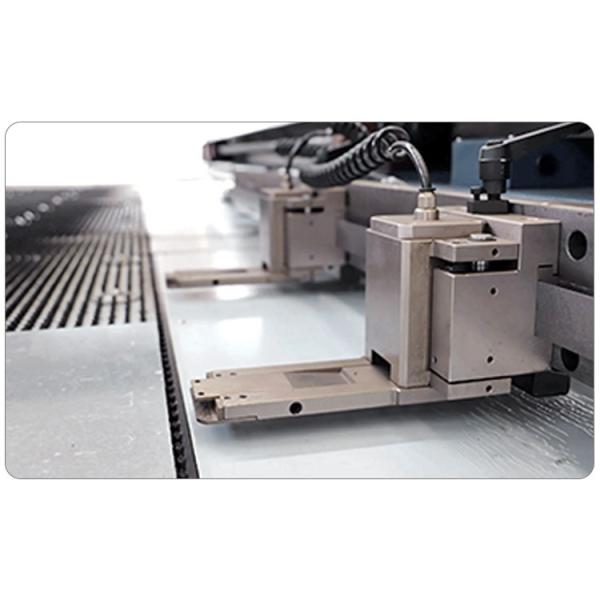

Pneumatic Clamping

Unique design, reduce sheet deformation,

contact sensor automatically stop the

machine, provide self-protection function.

No dead Angle is drilled on the plate,

the splint will float automatically, and

the fixture will unload automatically

when it returns.

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic

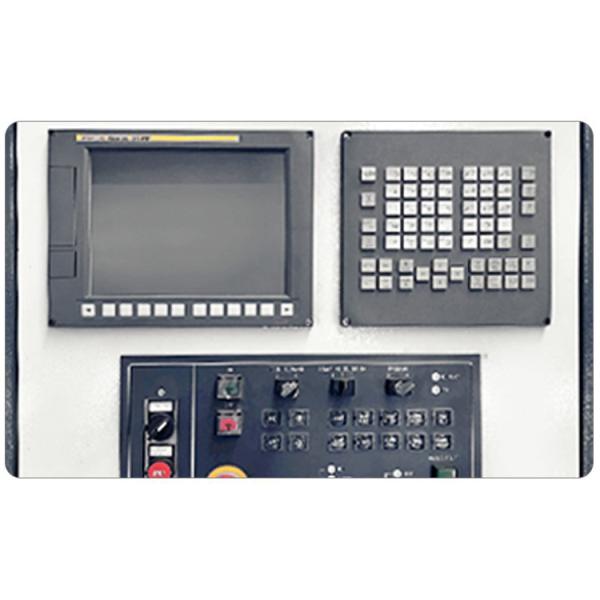

Operating Panel

GENUO CNC Control with program

software. The operation panel is

simple and easy to understand,

can assist operators, improve

machine productivity.

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic

,

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic

Servo Motor

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic

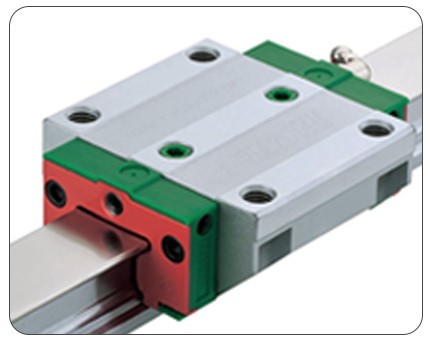

Linear Guide

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic

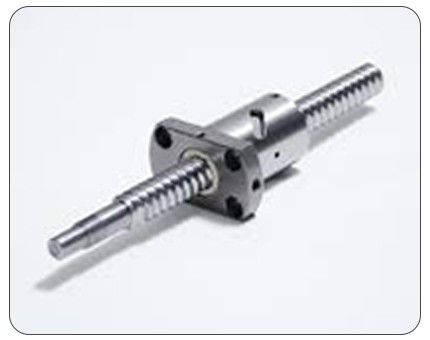

Ball Screw

Quality Characteristics

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic

Technical Parameter Tel:400-010-0000

CNC Mechanical GN-T30 Series Turret Punch Press Full Automatic
