20W 30W 50W 100W Fiber Laser Marking Machine For Sheet Metal
20W 30W 50W 100W Fiber Laser Marking Machine For Sheet Metal
20W 30W 50W 100W Fiber Laser Marking Machine For Sheet Metal
20W 30W 50W 100W Fiber Laser Marking Machine For Sheet Metal
Specifications
Brand Name :
genuo
Model Number :
GLW -20w/30w/50w/100w
Certification :
M.2019.206.C3862
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
1 Set/Sets Every 15~35 days
Delivery Time :
90 days
Packaging Details :
carton box
Product name :
Fiber Laser Marking Machine
Application :
Stainless Steel Sheet Metal Plate
Laser type :
Fiber Laser
Voltage :
220V/380V/415V/440V/customized
Machine Color :
Customer Choose
Main Motor :
2 KW/3KW/5KW
CNC or not :
CNC Controller
After-sales Service Provided :
Online Support Video Technical Support
core selling point :
Convenient and affordable
value-added services :
Presented Two years warranty
Control software :
EZCAD
Cooling method :
Air Cooling
Description

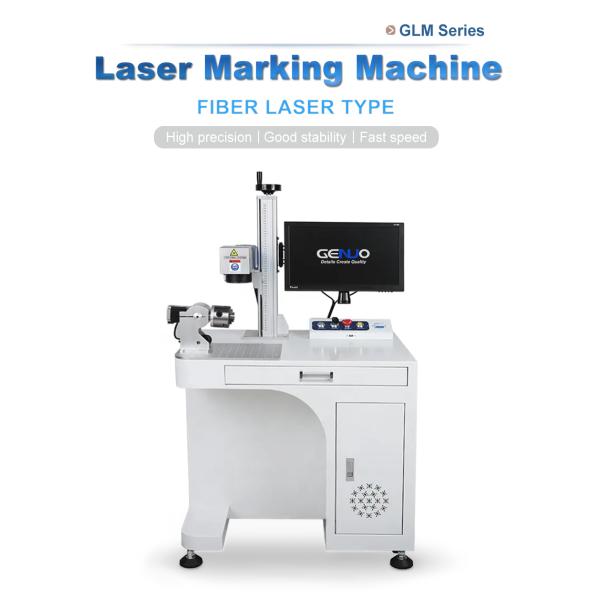

20W 30W 50W 100W Fiber Laser Marking Machine For Sheet Metal

Genuo fiber laser marking machine, small spot size, high beam quality, large lens, in addition to faster speed, better accuracy, high stability, suitable for deep engraving or etching, is the ideal choice for batch marking of small parts.
Laser marking machine is a device that uses a laser beam to create permanent marks on a variety of materials. The process involves directing a high-power laser beam to the surface of a material, which causes the material to melt, vaporize, or discolor, and the machine also allows for automated and high-speed processing, often using lasers that use oscillators, scanning mirrors, and focusing lenses.
Today, the laser marking machine has been more improved, more general laser marking technology, not only accurate, environmentally friendly, but also more cost-effective.Fiber laser marking machines are among the most powerful laser marking machines available today, and these solid-state lasers range in power levels from 20 watts to 100 watts, making them ideal for marking metal materials.

→ Product Configuration:

Standard Equipment:


< Raycus/Max laser source


< Shengketai/Sino-Galvo galvanometer


< JCZ laser marking control card, EzCard software


< High performance computer host and LCD display


< Wooden case packing

Feature:

< Control card with rotating chuck function


< Electric height adjustment


< Two-dimensional table and built-in rotation


< Brand laptop


< Customizable countertop size

20W 30W 50W 100W Fiber Laser Marking Machine For Sheet Metal

Work Platform

Oversized workbench
with hole positioning

Control Panel

Humanized control switch,
autonomous control

Main Control Cabinet

Safe and convenient,
no maintenance

20W 30W 50W 100W Fiber Laser Marking Machine For Sheet Metal

- Technical Specifications -

Fiber Laser Marking Machine
Model GLM-20W GLM-30W GLM-50W GLM-100W
Marking Area 110X 110mm(4.3X43in) Optional
150X 150mm(5.9X59in)
175X 175mm (6.9x6.9in)
Maximum Material Thickness 300mm(11.8in)(at)110x 110mm
250mm(9 Bin)(at)150 X 150mm
206mm(8.1in)(at)175X 175mm
Laser Type RAYCUS/IPG/JPT Optional
Repetition Rate (Frequency) 20-80kHZ(at)RAYCUS
1-400kHZ(at)JPT
1.6-1000kHZ(at)IPG
Output power adjustment range 10%-100%
Marking Speed ≤7m/s(275. 6in/s)
