Electric Servo Turret Punching Machine 5500mm 220V 380V 415V 440V
Electric Servo Turret Punching Machine 5500mm 220V 380V 415V 440V
Specifications
Brand Name :
genuo
Model Number :
ES30-1250x5000/1500x5000
Certification :
M.2020.206.C6366
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
1 Set/Sets Every 15~35 days
Delivery Time :
90 days
Packaging Details :
carton box
Product name :
Punching Pressing Machine
Application :
Stainless Steel Metal Sheet Plate Punching
controller :
Siemens / GENUO
CNC Control system :
Germany Rexroth / Siemens / GENUO
Voltage :
220V/380V/415V/440V/customized
Color :
Customer Choose
Main Motor :
Germany Rexroth / Japan Panasonic
Electrical components :
France Schneider
type of drive :
Full servo direct drive main transmission
Structure :
24 Full-automatic indexing stations
Worktable :
Brush and ball mixed worktable
Power :
Electric servo
After-sales Service Provided :
Online Support Video Technical Support
Max impulse pressure :
300
Thickness of processed plate :
4
Motor Power :
20
Workstation :
32No.
Rotation number :
2（ up to 4 )No.
Punching accuracy :
±0.075mm
Turret speed :
30r/min
Number of control axes :
4No.
value-added services :
Presented Two years warranty
Degree of automation :
automatic
Dimension Length :
5500
Description

Electric Servo Turret Punching Machine 5500mm 220V 380V 415V 440V

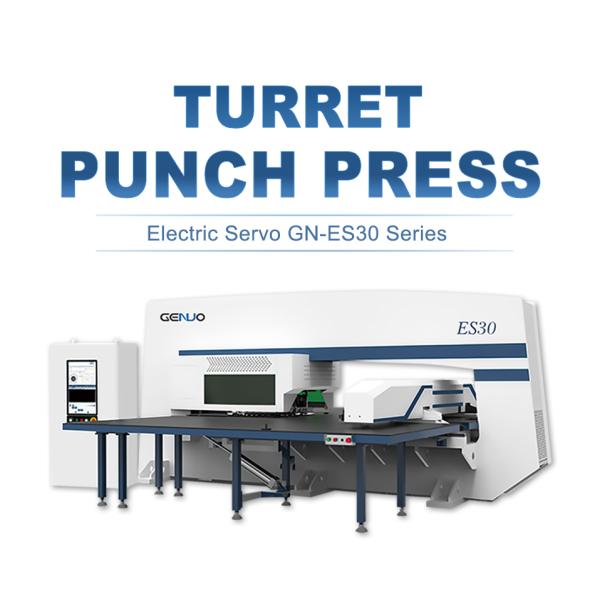

GENUO GN-ES30 series turret punch press advanced and reliable of servo system, the different thickness of the material automatically choose the stroke, can be very easy special craft processing, such as shutters, knock down hole, the whole trip of constant pressure and make the stamping quality reach a high level. The control system is a special CNC system designed for punch press by Rexroth.

Standard Equipment Optional Equipment
★ O-type welded rigid integral frame ☆ GENUO or Siemens CNC Control
★ Rexroth CNC Control and servo system ☆ 42 Station (Dual Circle+T die base)
★ 24 Full-automatic indexing stations ☆ Clamp Stripping Protection
★ Brush and ball mixed worktable ☆ Scrap Collection Device
★ Auto feeding system with high-precision ☆ Automatic Loading and Unloading
★ Precision wear-resistant turret and tools ☆ Special thick turrent tooling
★ Floatable Pneumatic Clamps ☆ Large seamless worktable
★ Bearing,timing belt,drag chain from DE ☆ Peripheral light curtain protective fence
★ Schneider electrical parts from FR ☆ Vacuum waste suction device
★ Automatic central lubrication system

☆ Optional customized colors
