Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet
Specifications
Brand Name :
Genyu
Model Number :
GY61786A-0HPNS-02
Certification :
RoHS, ISO9001:2015
Place of Origin :
China
MOQ :
1500 pieces
Price :
Negotiation
Payment Terms :
T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability :
400K pcs/ Month
Delivery Time :
38-40 days
Packaging Details :
Foam & Cartons
LCD Type :
VA, nagative
Viewing Angle :
6 O'clock
Operating Temperature :
-20~+70℃
Voltage :
5.0V
Backlight :
RGB color
Description
VA LCD Display Black Segment Screen Bar Type RGB Color for Disinfection Cabinet

Why Choose VA Segment LCDs?

  • If your application requires a cost-effective display with excellent contrast, wide viewing angles, and low power consumption, a VA segment LCD is a practical choice.

  • It is particularly suited for static or semi-static information display, where vibrant visuals and readability are essential but full graphic capability is unnecessary.

Summary:

VA Segment LCDs combine the benefits of vertical alignment technology with the simplicity of segmented displays.

They offer high contrast, wide viewing angles, and energy efficiency, making them versatile for a broad range of applications like consumer electronics, automotive dashboards, and medical devices.

Detailed Parameters:

Model number GY61786A-0HPNS-02 LCD type Segmented Display

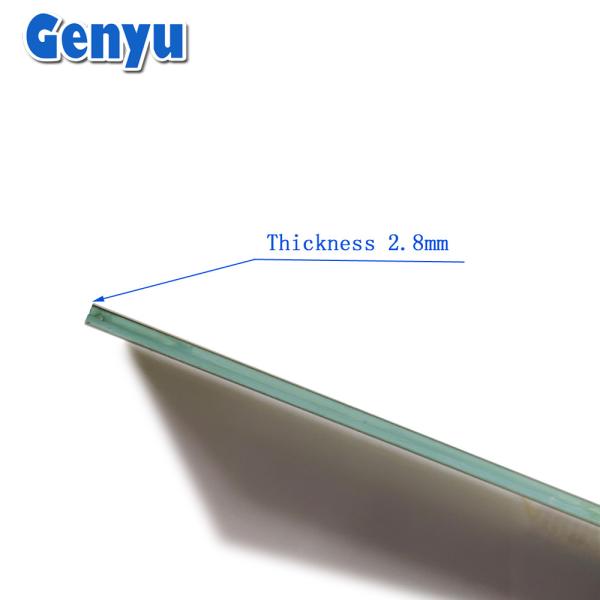

Outline Dimension 341.5(W)* 96.5(H)* 2.8(T) mm Display mode VA, Negative
LCD viewing area 337.5(W)* 90.0(H) mm Polarizer type Transmissive
Driver IC / LED backlight RGB color
Drive method 1/1 Duty, 1/1 Bias Working voltage 5.0V
Viewing angle 6 O'clock Connection Way PIN, 49 numbers
Operate temperature -20℃~+70℃ Storage temperature -30~+80℃

Bar Type VA LCD Display Black Segment Screen RGB Color For Disinfection Cabinet

Common Applications of VA Negative LCD:

  • Watches and Smartwatches: Especially in devices that are used at night or in low-light conditions, such as outdoor or tactical watches.
  • Medical Devices: Some medical equipment uses negative VA LCDs for displaying critical information, as they offer high contrast and can be easier to read in low-light settings.
  • Automotive Displays: Car dashboards often feature negative displays for easier visibility during nighttime driving.
  • Consumer Electronics: Devices like remote controls, calculators, or any portable devices where the dark-on-light display is desired for aesthetic or functional reasons.
  • Industrial or Military Equipment: Negative VA LCDs may be used in certain rugged or military devices, especially where nighttime visibility and contrast are critical.

FAQ

1. Q: What products can you provide?

A. 1) Custom Segment LCD Display;

2) Monochrome Graphic/Dot Matrix LCD Display Modules;

3) Micro OLED Display Modules;

4) Color TFT LCD Display Panels;

5) LED Backlights.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: How long can I get the custom samples?

A: Different product types will take different times. Usually, it will take about 30-35 days.

4. Q: Can I get free samples?

A: We would like to provide 3-5 pcs free samples after tooling.

5. Q: What is the minimum order quantity?

A: MOQ mainly depends on LCD sizes.

6. Q: How long is it for mass production?

A: Usually 35-45 days, it depends on your part number.

7. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.
