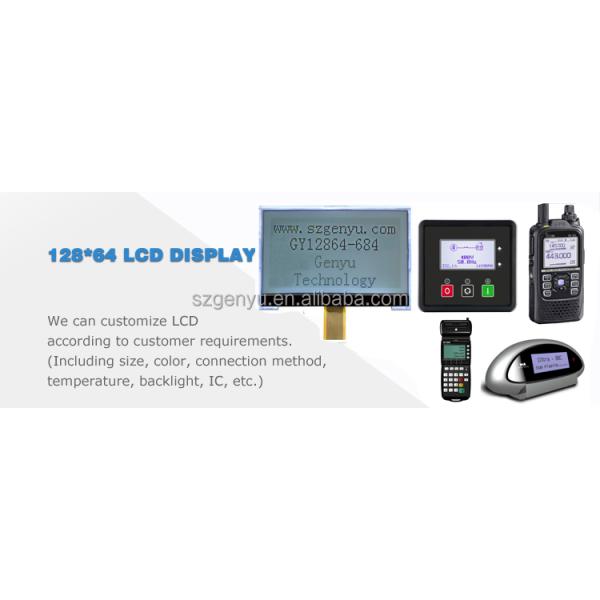

2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC
2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC
2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC
2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC
2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC
2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC
2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC
2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC
2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC
2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC
Specifications
Brand Name :
Genyu
Model Number :
GY12864-684
Certification :
RoHS, ISO9001: 2015
Place of Origin :
China
MOQ :
2500 pieces
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union, MoneyGram, Paypal
Supply Ability :
400K pcs/ Month
Delivery Time :
35-40 days
Packaging Details :
Anti-plastic trays and Carton Boxes
LCD Type :
FSTN, Positive, Transmissive
Viewing Angle :
6 O'clock
Operating Temperature :
-10~+60℃
Connector :
COG+FPC, 34pin
Driver IC :
ST7565R
Interface :
8-bit Parallel, MCU
Description
2.72 Inch 128x64 LCD Display COG Graphic FSTN Positive White Backlight 34PIN FPC

Key Features:

  1. Resolution: 128x64 pixels, which is common for small display modules.
  2. Interface: Often uses parallel or serial interfaces like SPI or I2C to communicate with a microcontroller.
  3. Monochrome: Most displays are monochrome (black and white) or have minimal color (like blue or green backlighting).
  4. Size: These displays are typically small, and commonly found in projects involving embedded systems, IoT devices, or other low-power applications.
  5. Power Consumption: Since they are often used in low-power environments, COG LCDs are designed to consume less power.
  6. Applications: Common in devices like handheld gadgets, meters, medical devices, and in some cases, small user interfaces.

Detailed Parameters:

1 Product Name COG Graphic LCD Display
2 LCD Type FSTN, Positive
3 Polarizer Type Transmissive
4 Viewing Angle 6 O'clock
5 Resolution
128x64 dots
6 Drive Method 1/65 Duty, 1/9 Bias
7 Working Voltage 3.3V
8 Operating Temperature -10~+60℃
9 Storage Temperature -20~+70℃
10 FPC Connector 36PIN, soldering type
11 FPC Pitch 0.8 mm
12 Connector COG+FPC
13 Driver IC ST7565R
14 Interface 8-bit Parallel, SPI
15 Backlight Type 4pcs LEDs, White
16 Power Consumption VF=3.0V, IF=60mA
17 Outline Dimension 71.3(W)* 48.2(H)* 5.3(T) mm
18 View Area 66(W)* 38(H) mm
19 Active Area 60.775(W)* 32.935(H) mm
20 Dot Size 0.450(W)* 0.490(H) mm
21 Dot Pitch 0.475(W)* 0.515(H) mm

2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC

Benefits of COG LCDs:

  • Smaller Footprint: The compact nature of the design makes it perfect for devices where space is at a premium.
  • Cost-effective: The reduced number of components and simpler assembly process can lower manufacturing costs.
  • Improved Reliability: The direct mounting of the IC on the glass can make the design more reliable over time by eliminating fragile connections.

Common Use Cases: They are commonly found in small-scale electronic products such as:

  • Handheld devices (e.g., portable meters, gadgets)
  • Wearable technology
  • IoT devices
  • Simple user interfaces (e.g., calculators, remote controls)
  • Medical equipment (e.g., thermometers, heart rate monitors)

2.72 Inch 128x64 LCD COG Display Graphic FSTN Screen Positive White Backlight 36PIN FPC

FAQ=Frequently Asked Questions

1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong and our factory is located in Jiangxi Province.

2. Q: What is the process for custom samples?

A: Send inquiry -- Offer quotation -- Confirm quotation & Pay tooling charge -- Provide drawing -- Confirm drawing -- Make tooling & samples -- Samples finished -- Delivery via freight or sea collect.

3. Q: Can I get free samples?

A: Yes, 5-10 pcs of free samples will be provided after tooling.

4. Q: How long can I expect to get the samples?

A: Different product types will take different times. 2-5 working days for available models, and 28-30 working days for custom models.

5. Q: What is the minimum order quantity?

A: All our models have MOQ requirements, please get in touch with our salesman for detailed information.

6. Q: Can I get a lower price for LCD?

A: Yes, cheaper price with bigger/larger quantities order.

7. Q: How long is it for mass production?

A: Usually 25-40 days. It depends on different order quantities and part numbers.

8. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.

9. Q: Can you provide the technical support?

A: Yes, We will provide detailed specifications and initialization code.
