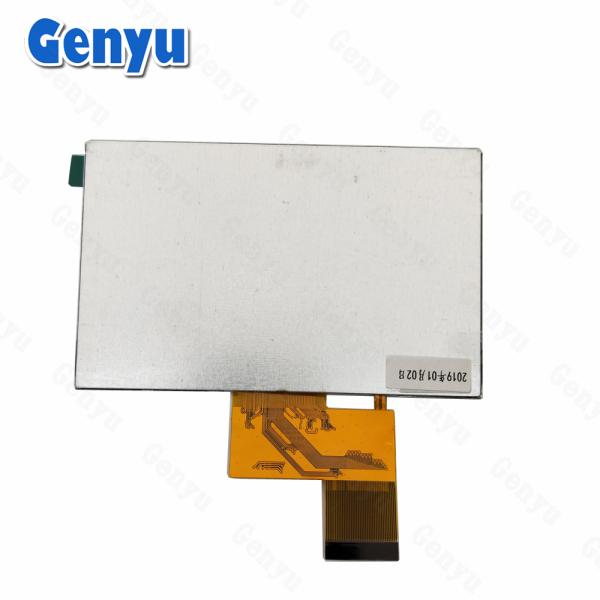

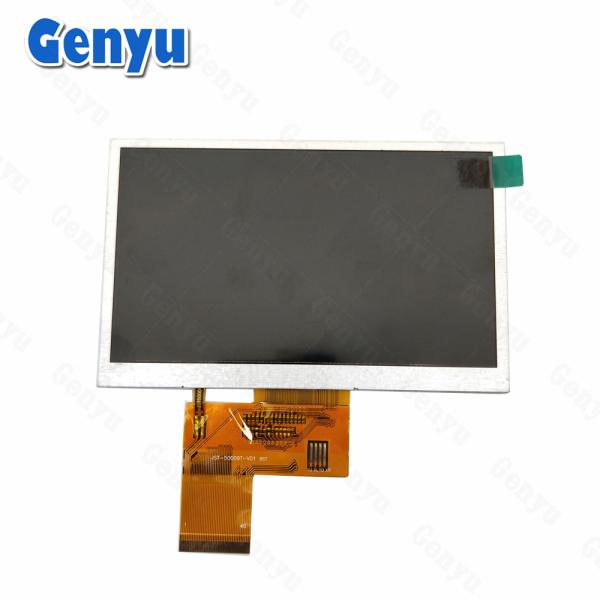

5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit
Specifications
Brand Name :
Genyu
Model Number :
GY-5000GQTK18-V06
Certification :
RoHS, ISO9001: 2015
Place of Origin :
China
MOQ :
1000 pieces
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union,MoneyGram,Credit Card
Supply Ability :
300K pcs/ Month
Delivery Time :
25-30 days
Packaging Details :
Anti-plastic trays and Carton Boxes
Panel Size :
5 inch(diagonal)
LCD Resolution :
800x480 dots
Viewing Angle :
6 O'clock
Interface :
RGB 24-bit
FPC :
40pin
Description

5 Inch TFT Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24-bit

Key Features:

  1. Screen Type: TFT is a variant of LCD with active-matrix technology, offering faster refresh rates and better image quality than traditional LCDs.

  2. Resolution: Typically ranges from 800x480 (WVGA) to higher resolutions like 1920x1080 (Full HD), depending on the manufacturer and model.

  3. Aspect Ratio: Often 16:9 for widescreen displays.

  4. Brightness: Ranges between 200 to 500 nits, suitable for indoor use; outdoor visibility depends on the brightness and anti-glare features.

  5. Interface:

    • Parallel: For simpler and cost-effective applications.

    • HDMI/USB: Common for embedded and Raspberry Pi projects.

  6. Touchscreen (Optional): Capacitive or resistive touch versions are available.

  7. Viewing Angles: Typically 160° or wider for better usability.

  8. Backlighting: LED backlit for better energy efficiency.

Basic Parameters:

NO.ITEMSPECIFICATIONS
1Product Name5.0 Inch TFT display
2LCD TypeTN, Transmissive
3Viewing Angle6 O'clock
4Driver IC
OTD9960A+OTA7001A
5Resolution
800x480 dots
6Operating Temperature-20~+70℃
7Storage Temperature-30~+80℃
8FPC Connector40PIN, socket type
9FPC PITCH0.5mm
10InterfaceParallel RGB 24-Bit
11Backlight Type

3chips serial *6

12Backlight Consumption19.8V, 60mA
13
Luminance
500 cd/m2
14Outline Dimension

120.80(W)* 75.85(H)* 3.00(D) mm

15Active Area
108.0(W)* 64.8(H) mm

5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit

5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit

TFT Screens ( 0.42 inch~10.11 inch ):

We mainly develop TFT LCD screens of small-middle sizes, sizes as below.

--Vertical Type: 0.85", 1.5", 1.69", 1.77", 1.83", 2.0", 2.2", 2.36", 2.4", 2.8", 2.95", 3.2", 3.5", 3.97", 4.3", 4.45", 4.3", 5.5", 7", 8".
---Horizontal Type: 0.42", 2.31", 3.5", 4.3", 5.0", 7.0", 10.1".
---Bar Type: 0.96", 1.05", 1.06", 1.08", 1.12", 1.14", 1.42", 1.45", 1.47", 1.65", 1.99", 2.25", 2.79", 3.13", 10.11".
---Square Type: 1.3", 1.44", 1.54", 3.95".
---Round Shape: 0.71", 0.9", 0.99", 1.28", 1.32", 1.45", 1.46", 1.6", 2.1", 2.76", 3.54".
---RTP
---CTP
---Backlight
We can customize the FPC/ Backlight/ Touch Panel/ Brightness/ Interface based on your demands.
Pls let me know your requirements, and we will provide some suggestions/options.

5 Inch TFT LCD Display TN Transmissive 800x480 Resolution 40PIN Parallel RGB 24 Bit

Applications:

  1. Embedded Systems: Used with Raspberry Pi, Arduino, or other development boards.

  2. Consumer Electronics: Found in handheld gaming consoles, GPS devices, and digital cameras.

  3. Industrial Control Panels: Reliable for monitoring and user interface tasks.

  4. Automotive Displays: Implemented in infotainment systems.

  5. DIY Projects: Popular in maker and hobbyist communities.

Advantages:

  • Cost-effective compared to OLEDs.

  • Sharp and vivid images.

  • Durable and widely available.

Limitations:

  • Narrower viewing angles compared to IPS displays.

  • Consumes more power than OLED technology.

  • Lower contrast ratios.

FAQ
1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.

2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.

5. Q: Can I get a lower price for TFT LCD?

A: Yes, cheaper price with bigger/larger quantities order.

6. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.

7. Q: Can you provide the technical support?

A: Yes, We will provide detailed specifications and initialization code.
