Specifications
Brand Name :
Genyu
Model Number :
GY070TN92
Certification :
RoHS, ISO9001: 2015
Place of Origin :
China
MOQ :
100 pieces
Price :
Negotiable
Payment Terms :
T/T,Paypal,Western Union,MoneyGram,Credit Card
Supply Ability :
300K pcs/ Month
Delivery Time :
25-30 days
Packaging Details :
Anti-plastic trays and Carton Boxes
Panel Size :
7 inch(diagonal)
LCD Resolution :
800x480 dots
Display Mode :
Normally White
Interface :
Digital
FPC :
50pin
Description

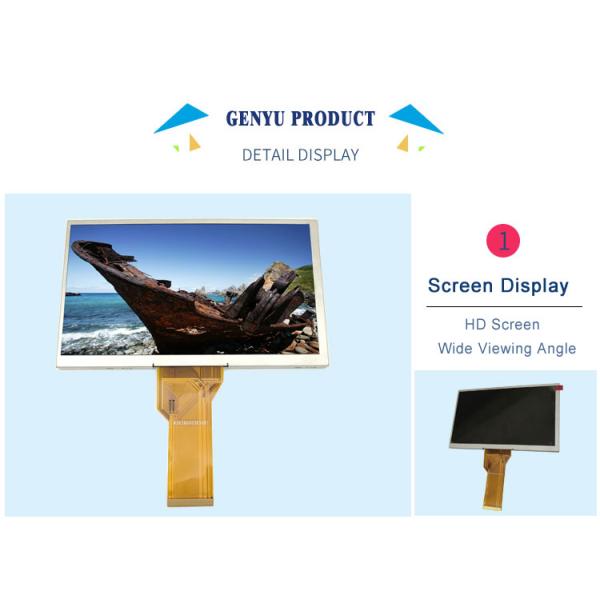

7 Inch TFT Display 800(RGB)×480 Resolution Normal White 50pin Digital Interface

Key Features and Specifications:

  1. Screen Size:

    • 7 inches measured diagonally.

  2. Resolution:

    • Common Resolutions:

      • 800x480 (WVGA): This is the most common resolution for 7-inch TFT LCDs and provides a good balance between visual quality and system performance.

      • 1024x600: This resolution is becoming more common in slightly higher-end 7-inch screens.

  3. Aspect Ratio:

    • 16:9 widescreen format, suitable for multimedia and video-oriented applications.

  4. Display Technology:

    • TFT (Thin Film Transistor): This active-matrix technology enables better color reproduction, faster refresh rates, and improved image quality over older passive-matrix displays.

    • LED Backlighting: Most 7-inch TFT screens use LED backlighting, which is more energy-efficient and provides better brightness compared to traditional CCFL backlighting.

Basic Parameters:

NO.ITEMSPECIFICATIONS
1Product Name7.0 Inch TFT display
2Display ModeNormally white, Transmissive
3Viewing Angle6 O'clock
4Pixel arrangement
RGB Vertical stripe
5Resolution
800 RGB(H) x 480(V) Dots
6Operating Temperature-20~+70℃
7Storage Temperature-30~+80℃

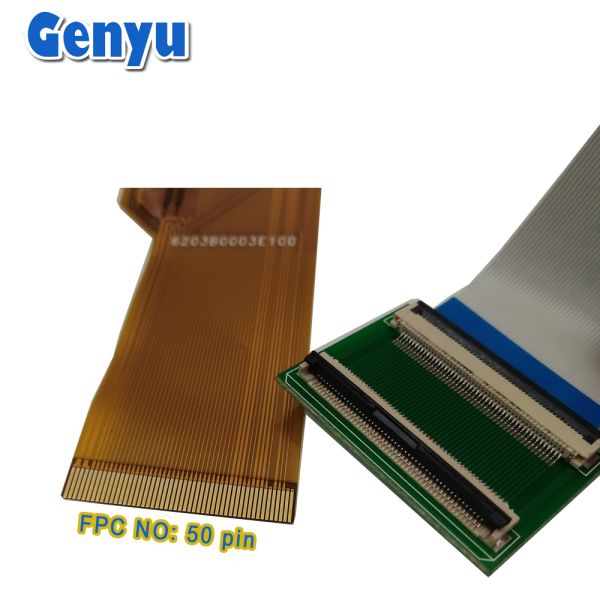

8FPC Connector50PIN, socket type
9FPC PITCH0.5 mm
10Backlight Power Consumption
1.674W (Typ.)
11Panel Power Consumption
0.226W (Typ.)
12

Interface

Digital/ RGB

13
Luminance
250 cd/m2
14
Contrast ratio
500

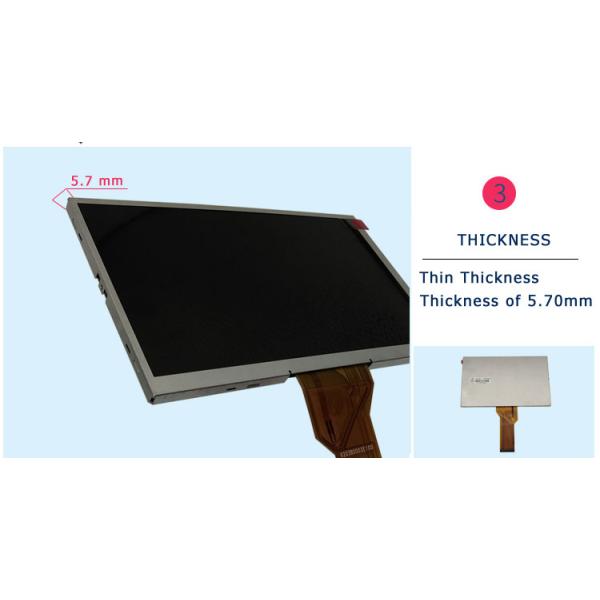

15Outline Dimension

164.9(W) ×100.0(H) ×5.7(D) mm

16Active Area
154.08(W) × 85.92(H) mm

Digital Interface 7 Inch TFT LCD Screen RGB 800×480 Resolution Normal White 50pin

Digital Interface 7 Inch TFT LCD Screen RGB 800×480 Resolution Normal White 50pin

Digital Interface 7 Inch TFT LCD Screen RGB 800×480 Resolution Normal White 50pin

TFT Screens ( 0.42 inch~10.11 inch ):

We mainly develop TFT LCD screens of small-middle sizes, sizes as below.

--Vertical Type: 0.85", 1.5", 1.69", 1.77", 1.83", 2.0", 2.2", 2.36", 2.4", 2.8", 2.95", 3.2", 3.5", 3.97", 4.3", 4.45", 4.3", 5.5", 7", 8".
---Horizontal Type: 0.42", 2.31", 3.5", 4.3", 5.0", 7.0", 10.1".
---Bar Type: 0.96", 1.05", 1.06", 1.08", 1.12", 1.14", 1.42", 1.45", 1.47", 1.65", 1.99", 2.25", 2.79", 3.13", 10.11".
---Square Type: 1.3", 1.44", 1.54", 3.95".
---Round Shape: 0.71", 0.9", 0.99", 1.28", 1.32", 1.45", 1.46", 1.6", 2.1", 2.76", 3.54".
---RTP
---CTP
---Backlight
We can customize the FPC/ Backlight/ Touch Panel/ Brightness/ Interface based on your demands.
Pls let me know your requirements, and we will provide some suggestions/options.

Digital Interface 7 Inch TFT LCD Screen RGB 800×480 Resolution Normal White 50pin

Advantages:

  • Large Display Area: The 7-inch size strikes a good balance between providing enough display space without being overly large, which makes it portable and usable in compact setups.

  • Cost-Effective: 7-inch TFT LCD screens are affordable compared to larger displays and other advanced technologies like OLEDs.

  • Wide Availability: These screens are very common and can be easily found from various manufacturers, making them ideal for prototyping or hobbyist projects.

  • Customization: Many 7-inch TFT screens support touch interfaces (resistive or capacitive), providing an interactive layer for embedded applications.

Limitations:

  • Power Consumption: Depending on the backlight intensity and screen resolution, power consumption may be higher than other technologies like OLED or e-ink, making it less ideal for battery-powered portable applications unless carefully managed.

  • Lower Contrast Ratios: While good, TFTs generally do not match the deep blacks and high contrast ratios of OLED screens.

  • Viewing Angles: Although TFTs have improved, they are not as good as IPS panels in terms of wide-angle visibility.

FAQ
1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.

2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.

5. Q: Can I get a lower price for TFT LCD?

A: Yes, cheaper price with bigger/larger quantities order.

6. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.

7. Q: Can you provide the technical support?

A: Yes, We will provide detailed specifications and initialization code.
