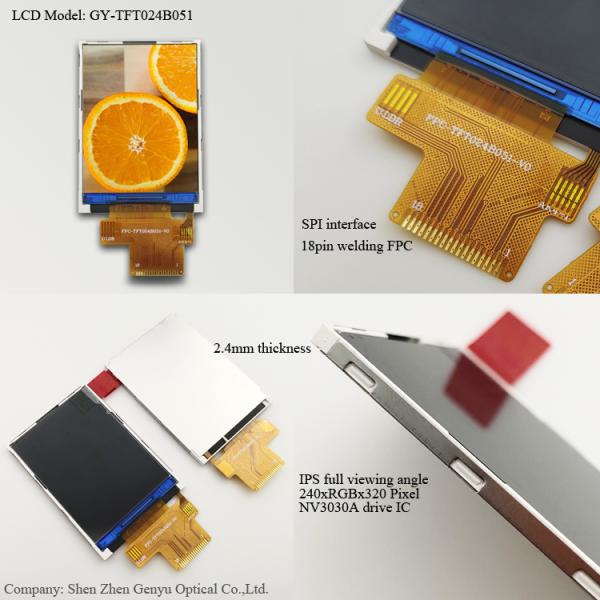

Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots NV3030
Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots NV3030
Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots NV3030
Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots NV3030
Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots NV3030
Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots NV3030
Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots NV3030
Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots NV3030
Specifications
Brand Name :
Genyu
Model Number :
GY-TFT024B051
Certification :
RoHS, ISO9001: 2015
Place of Origin :
China
MOQ :
1000 pieces
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability :
300K pcs/ Month
Delivery Time :
25-30 days
Packaging Details :
Anti-plastic trays and Carton Boxes
Panel Size :
2.4 inch(diagonal)
LCD Resolution :
240x320 dots
Viewing Angle :
Free
Driver IC :
NV3030B
Interface :
SPI
FPC :
18pin
Description

2.4 Inch TFT LCD Display 18PIN Soldering FPC 240x320 Dots NV3030 SPI Interface

Key Features:

  1. Size and Resolution:

    • 2.4-inch diagonal size: This screen is compact enough to be used in devices where space is limited, such as handheld gadgets, small controllers, or wearable electronics.
    • Resolution: Typically, the most common resolution for a 2.4-inch IPS TFT display is 240x320 pixels (QVGA). This resolution provides clear text, small graphics, and good detail in this compact size, making it ideal for simple user interfaces and interactive displays.

  2. IPS Technology:

    • Wide Viewing Angles: IPS technology ensures that the display maintains consistent colors and brightness levels even when viewed from sharp angles (up to 178° horizontally and vertically).
    • Better Color Accuracy: IPS panels offer more accurate and vibrant colors compared to older TN (Twisted Nematic) displays. This makes them ideal for applications requiring true-to-life colors, such as photo displays, multimedia content, or creative projects.

Basic Parameters:

NO. ITEM SPECIFICATIONS
1 Product Name 2.4 Inch TFT LCD
2 LCD Type IPS, QVGA
3 Viewing Angle Free
4 Resolution
240x320 dots
5 Operating Temperature -20~+70℃
6 Storage Temperature -30~+80℃
7 FPC Connector 18PIN, soldering type
8 Driver IC(COG) NV3030B
9 Interface SPI
10 Backlight Type

4-LED, White, 80mA
11 Outline Dimension
42.72(H)* 60.26(V)* 2.40(D) mm
12 Active Area
36.72(H)* 48.96(V) mm

Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots NV3030

TFT Screens ( 0.96 inch~10.1 inch ):

We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.

Also, we can customize the FPC, Interface, Touch Panel, Cover Glass, and Backlight based on your demands.
Please let me know your requirements, we will suggest some models for your optional.

Customized 2.4 Inch TFT LCD Screen 18PIN Soldering FPC 240x320 Dots NV3030

Some TFT Display Features:

  • TFT Technology:

    • Enhanced Visual Performance: The use of Thin-Film Transistor (TFT) technology allows for better contrast, sharper text, and faster response times compared to older, passive matrix displays. It also enhances the overall color depth and uniformity across the screen.

  • Touchscreen Capability:

    • Many 2.4-inch IPS TFT displays come with touchscreen functionality, often resistive or capacitive, enabling users to interact with the display through touch gestures. This makes them ideal for DIY projects, custom controllers, and portable devices that require an interface for input.

  • Backlight:

    • LED backlighting is used to illuminate the screen, providing bright and clear visuals even in low-light conditions. The brightness can usually be adjusted to save power or enhance visibility.

FAQ
1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.

2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, the interface, FPC cable, backlight, cover glass, and touch panels can be customized.

5. Q: Can I get a lower price for TFT LCD?

A: Yes, cheaper price with bigger/larger quantities order.

6. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.

7. Q: Can you provide the technical support?

A: Yes, We will provide detailed specifications and initialization code.
