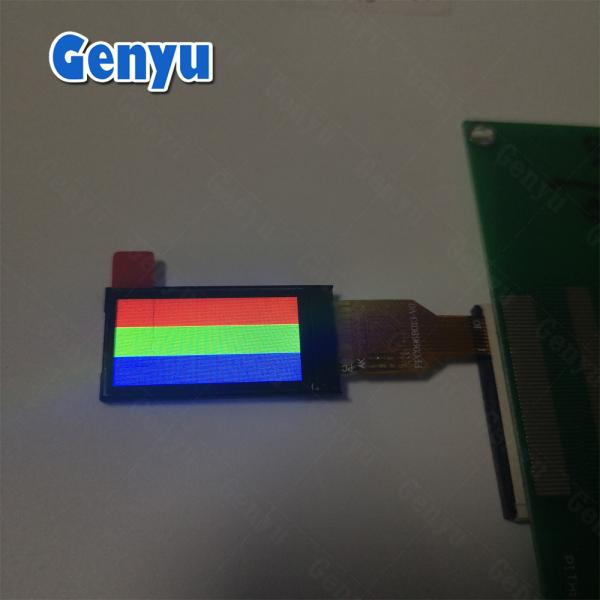

0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial
Specifications
Brand Name :
Genyu
Model Number :
GY-TFT096B013
Certification :
RoHS, ISO9001: 2015
Place of Origin :
China
MOQ :
1000 pieces
Price :
Negotiable
Payment Terms :
T/T, Paypal, Western Union, MoneyGram, Credit Card
Supply Ability :
300K pcs/ Month
Delivery Time :
25-30 days
Packaging Details :
Anti-plastic trays and Carton Boxes
Panel Size :
0.96 inch(diagonal)
LCD Resolution :
80x160 dots
Viewing Angle :
Free
Driver IC :
ST7735S
FPC Connector :
8pin
Interface :
4SPI
Description

0.96 Inch TFT LCD Display IPS 80x160 Dots 8pin FPC ST7735 driver 4-line Serial

A 0.96-inch TFT LCD is a small, full-color display that typically uses a Thin-Film Transistor (TFT) technology for better image quality and faster refresh rates.

Key Features:

  1. Resolution: The 0.96-inch TFT LCD typically offers a resolution of 160x80 or 128x64 pixels, depending on the exact model.
  2. Color Depth: Usually supports 16-bit color (65,536 colors), which allows for clear and vibrant displays.
  3. Interface: The most common interfaces are SPI (Serial Peripheral Interface) or I2C, making it easy to integrate into embedded systems.
  4. Viewing Angle: IPS (In-Plane Switching) technology provides better viewing angles and more consistent color reproduction than older TFT displays.
  5. Power Consumption: These displays are generally energy-efficient, but can still consume more power than OLED displays for the same size.

Basic Parameters:

NO. ITEM SPECIFICATIONS
1 Product Name 0.96 Inch TFT LCD
2 LCD Type IPS
3 Viewing Angle Free
4 Resolution
80x160 dots
5 Working Voltage 2.8V (Typ.)
6 Operating Temperature -20~+70℃
7 Storage Temperature -30~+80℃
8 FPC Connector 8PIN, ZIF type
9 Pitch 0.5 mm
10 Driver IC(COG) ST7735S
11 Interface 4 SPI
12 Backlight Type 1-LED, White
13 Power Consumption VF=3.2V, IF=15mA
14 Outline Dimension 14.04(W)* 27.95(H)* 1.73(T) mm
15 Active Area 10.8(W)* 21.7(H) mm

0.96 Inch TFT Display IPS 80x160 Dots 8pin FPC ST7735 Driver 4-Line Serial

TFT Screens ( 0.96 inch~10.1 inch )

We mainly develop TFT LCD screens of small-middle sizes, including 0.96", 1.06", 1.14", 1.28", 1.3", 1.44", 1.54", 1.69", 1.77", 1.83", 1.99", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 3.97", 4.3", 5", 5.5", 7", 8" and 10.1", etc.

Also, we can customize the FPC, Interface, Touch Panel, Cover Glass, and Backlight based on your demands.
Please let me know your requirements, we will suggest some models for your optional.

Common applications of the 0.96-inch TFT display:

1. Wearable Devices

  • Smartwatches: Ideal for low-cost, compact smartwatches that need a small color display for time, health data, and notifications.

  • Fitness Trackers: Useful for displaying step counts, heart rate data, or workout information in compact, low-power wearable devices.

2. Portable Devices

  • Handheld Devices: Used in handheld digital meters, data loggers, or portable testers that need to show measurements, data trends, or diagnostic information.

  • Game Consoles: In small, portable retro gaming consoles where a small color display is needed for graphics and menus.

3. IoT Devices

  • IoT Sensors: In the Internet of Things (IoT) devices, this small TFT display is often used to show status, connectivity, or sensor data, such as weather conditions, air quality, or device health status.

  • Smart Home Devices: In smart thermostats or home automation hubs, a 0.96-inch TFT can display settings, device status, or system information.

FAQ
1. Q: Where is your factory?

A. Our office is in Shenzhen, Guangdong and our factory is in Jiangxi Province.

2. Q: Will you offer a free sample?
A: For the first cooperation, samples will be charged, and the amount will be returned at the mass order stage.
3. Q: What is the delivery time?
A: For sample order: 2-3 weeks. For mass production: 4-6 weeks.
4. Q: Can you support customization?
A: Yes, regarding TFT LCD, interface, FPC cable, Backlight, Cover glass, and Touch Panels can be customized.

5. Q: Can I get a lower price for TFT LCD?

A: Yes, cheaper price with bigger/larger quantities order.

6. Q: How do you control the quality of products?

A: All products are 100% inspected before shipment.

7. Q: Can you provide the technical support?

A: Yes, We will provide detailed specifications and initialization code.
